Applications
For industrial vacuum cleaners and cleaning systems.
Useful for suction of drainage sludge, sand, etc.
Advantages
Light and flexible design.
Very good wear resistance.
Especially useful when low weight and easy handling are valued.
Design
Technical drawing

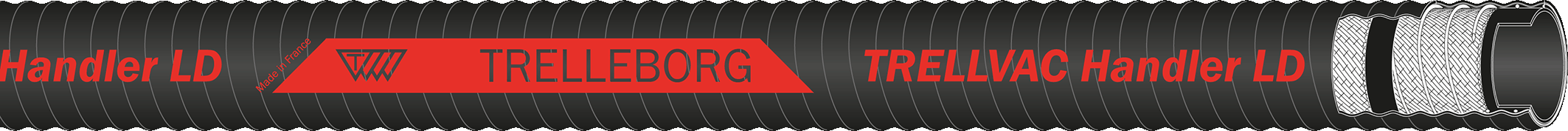

Overview
Inner tube
wear resistant NR, smooth, black,
Reinforcement
synthetic textile cords with embedded steel helix,
Cover
wear and weather resistant SBR, corrugated, black,
Temperature range
-30 to +80
Electrical properties
conductive tube and cover, R<10MΩ/l, helix must be connected with couplings.
Additional information
OD measured on top of corrugation.
Technical Specifications
| ID (mm) | Wall thickness (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number | Stock or min. order (m) |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
