VEGA FLAT lifting bags with 12 bar (174 psi) working pressure class, provide exceptional lifting capacity. The flat bags enable superior stability and encompass improved features making them the best lifting bag on the market. Their unique flat surface design allows stability that greatly increases operator safety.
Placing 3 FLAT bags on top of each other makes them useful in a variety of demanding situations.
Our new design brings many new features on both, the bags and accessories.
- Stackable up to 3 bags
- Superb stability
- EN 13731
- NFPA 1936
- Interlocking system
| TYPE |
PART NUMBER |
DIMENSIONS | WEIGHT |
WORKING PRESSURE |
AIR REQUIREMENT |
MAX. LIFTING CAPACITY |
MAX. LIFTING HEIGHT |
MAX. LIFTING |
||
|---|---|---|---|---|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | ||||||||
| [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | [t] / [US Tons] | ||
| VEGA Flat 5/17 | 616671 | 48 / 18.9″ | 48 / 18.9″ | 2.5 / 1″ | 6.6 / 14.6 | 12 / 174 | 236 / 8.33 | 24.7 / 27.2 | 17 / 6.7″ | 5.0 / 5.5 |
| VEGA Flat 10/17 | 616672 | 55 /21.6″ | 55 /21.6″ | 2.5 / 1″ | 8.6 / 19.0 | 12 / 174 | 365 / 12.89 | 33.2 / 36.5 | 17 / 6.7″ | 10.0 / 11.0 |
| VEGA Flat 20/17 | 616673 | 67 / 26.4″ | 67 / 26.4″ | 2.5 / 1″ | 12.3 / 27.1 | 12 / 174 | 897 / 31.68 | 50.2 /55.2 | 17 / 6.7″ | 20.0 / 22.0 |
| VEGA Flat 40/17 | 616674 | 84 / 33″ | 84 / 33″ | 2.7 / 1.1″ | 21.1 / 46.5 | 12 / 174 | 1381 / 48.77 | 80.2 / 88.2 | 17 / 6.7″ | 40.0 / 44.0 |
| VEGA Flat 55/17 | 616675 | 93 /36.5″ | 93 /36.5″ | 2.7 / 1.1″ | 27.5 / 60.6 | 12 / 174 | 1895 / 66.92 | 100.2 / 110.2 | 17 / 6.7″ | 55.0 / 60.5 |
Lifting Height [mm]/ [inch]
Coupling System
Type 96 KS
Rubber Inflation Hoses
Rubber inflation hose - Red
5 m (16’), 1.5 kg (3.3 lbs) - 611187
10 m (33’), 3 kg (6.6 lbs) - 611188
Rubber inflation hose - Yellow
5 m (16’), 1.5 kg (3.3 lbs) - 611183
10 m (33’), 3 kg (6.6 lbs) - 611184
Rubber inflation hose - Blue
5 m (16’), 1.5 kg (3.3 lbs) - 611185
10 m (33’), 3 kg (6.6 lbs) - 611186
Rubber inflation hose - Grey
5 m (16’), 1.5 kg (3.3 lbs) - 611189
10 m (33’), 3 kg (6.6 lbs) - 611190Controllers

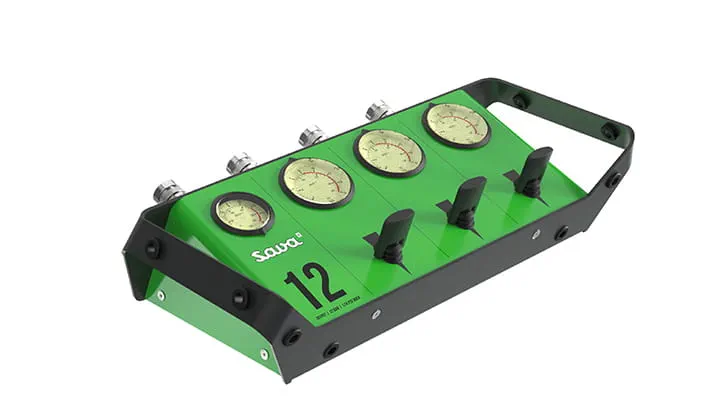

Triple deadman controller
3 EXP 12
12 bar (145 psi)
4.0 kg (8.8 lbs)
609801
Protective case for Exp controllers
1.2 kg (2.6 lbs)
613218
Accessories
Pressure reducer
12 bar (174 psi)
300 bar (4350 psi)
2.2 kg (4.9 lbs)
EN - 615148
CGA - 615246
Inflation Accessories
Inflation accessories have been designed for precision control, high reliability and long life.
They are used with all of our lifting bags – from the source of air to controllers.
Accessories are suitable for EU market, US versions available upon request.
Compressed air cylinder
300 bar (4350 psi),
6L (366 cu.in.)
9.0 kg (20 lbs)
528746
Carry-on valise for compressed air cylinder
0.1 kg (2.2 lbs)
519811
Universal connector kit
0.2 kg (0.44 lbs)
519809
Truck tyre valve connection
0.1 kg (2.2 lbs)
519806
Truck tyre valve
0.05 kg (0.11 lbs)
519805
Compressed air mains
0.05 kg (0.11 lbs)
519808
Truck tyre inflator adapter
0.05 kg (0.11 lbs)
519807
Dual connector for compressed Air cylinders
1.0 kg (2.2 lbs)
529383
Triple connector for compressed air cylinders
1.2 kg (2.6 lbs)
529384
Truck compressed air connection
0.4 kg (0.88 lbs)
529005
Truck compressed air connection-blind coupling
0.5 kg (1.1 lbs)
529006
Adapter for construction site compressor
0.2 kg (0.44 lbs)
529704
Safety carrier rack-two cylinder 6L (366 cu.in.) modul-trolley system
3.0 kg (6.6 lbs)
542868
Safety carrier rack-four cylinder 6L (366 cu.in.) modul-trolley system
5.0 kg (11 lbs)
542872
Loading plates
Load Plate # 350 - 556308
3.5 kg (7.7 lbs)
Load Plate # 420 - 556309
5.0 kg (11 lbs)
Load Plate # 520 - 556310
7.5 kg (16.5 lbs)
Load Plate # 670 - 556311
13.0 kg (29 lbs)
