Grades and standards
Each grade is classified under EN 12882 or EN 14973 and ATEX, so you can match the belt to your site's overground or underground risk.
| Designation | Elastomer | Hardness ±5 Sh°A | Abrasion max. (mm3) | Application |
|---|---|---|---|---|
| K | SBR/NR | 63 | 160 |
Fire and flame-resistant rubber conveyor belt for overground applications according to:
|
|
S |
SBR/NR | 63 | 160> |
Fire and flame-resistant rubber conveyor belt for overground applications according to:
|
| SMVO | CR/BR |
68 |
180 |
Fire and flame-resistant rubber intended for use in explosive atmospheres overground endangered by mixtures of air and gasses, vapors, or mists or by air and dust mixtures.
|
| SMVU | CR/SBR/BR | 68 | 180 |
Fire and flame-resistant rubber conveyor belt intended for use in underground parts endangered by firedamp (presence of flammable gases especially methane) and/or combustible dust (any material in solid form that has ability ignition source):
|

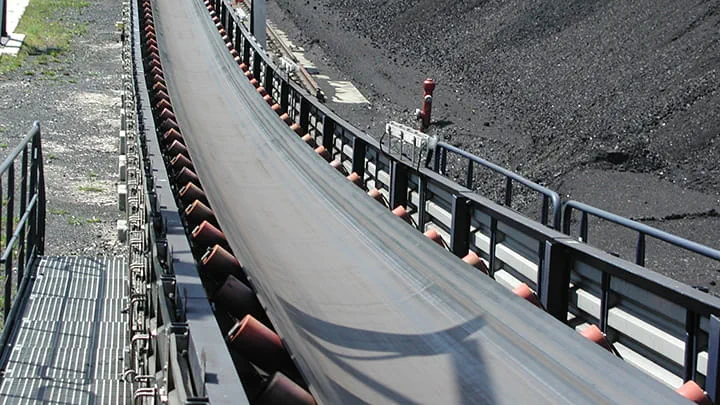

Applications
- Heating and power stations
- Coal industry
- Steel and foundries
- Paper and wood industries
- Grain and sugar Industries
- Cement Industries
- Tunnel construction
- Underground mining
- Flammable goods
- Mineral processing
