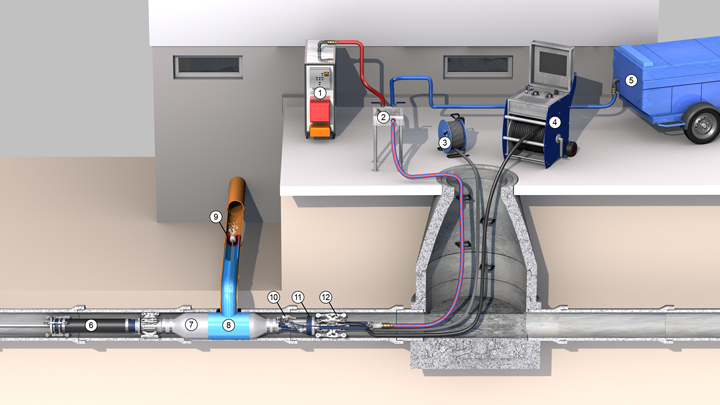

Operating Scheme
How it works
What you need to operate the Trelleborg MtH
-
Steam Generator, e.g. Trelleborg SteamGen 150
-
Trelleborg Steam Mixing Table
-
Towing Rope
-
MtH Control Unit
-
Compressor - recommended capacity: 3000 l/min, 8 bar [792 GPM, 116 psi]
-
MtH Inversion Hose
-
MtH Packer
-
MtH Liner
-
LinerEnd Cap with MtH Steam Outlet
-
MtH camera
-
MtH Steam Swivel Unit
-
MtH Wheel Set
Technical Components
Trelleborg MtH System

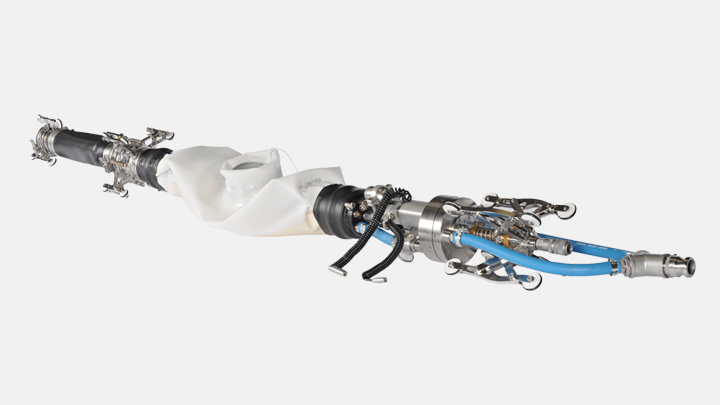

The Trelleborg MtH Packer
Four Packertypes available for pipe diameters
- DN 135 - DN 600 (5.3" - 24") in the main and
DN 100 - DN 200 (4" - 8") in the lateral connection pipe.
- Repair length in the lateral pipe: up to 30 meters (90 ft)
- Connection angle: 45° or 90°

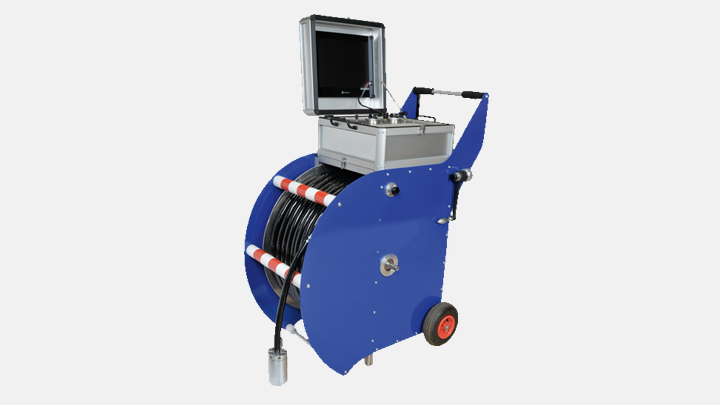

Trelleborg LCR-S/MtH control unit
- Hose Reel with rotary feedthrough incl. camera cable and all supply lines
- Combined Air/electricity/video-hose package (150 m)
- Multi-function plug for packer connection
- Colour camera (PAL) with LED lights
- Saphire crystal lens
- Fill and release valve for nitrogen
Components for Steam Curing

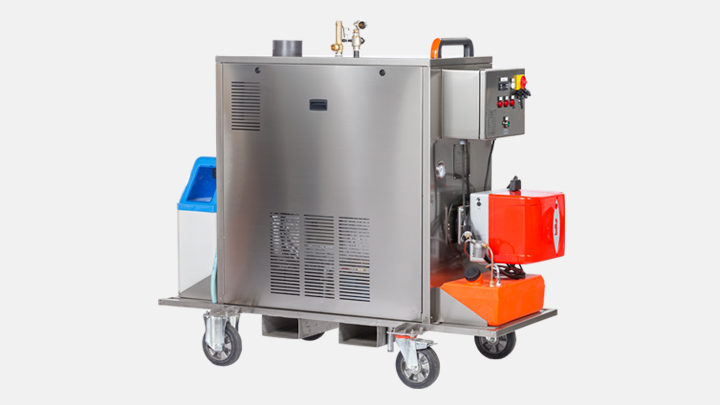

The Trelleborg Steam Gen 150
- Completely automated steam generator with steam output of 150 kg/h
- Oil-operated
- Comes on wheels (self-blocking)
- Heat-up time of approx. 10 minutes

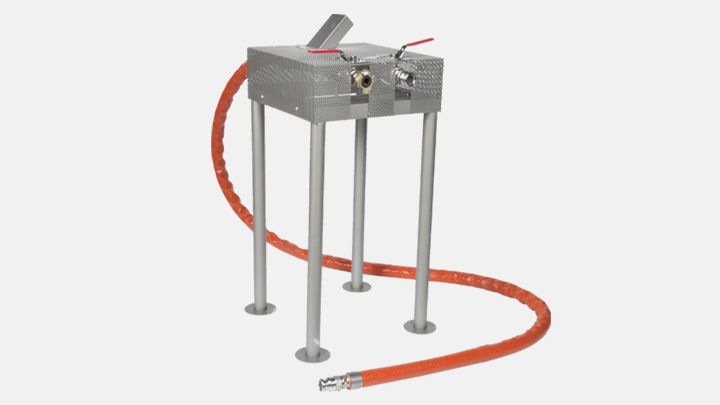

Trelleborg Steam Mixing Table
- For manual control of air/steam mixture

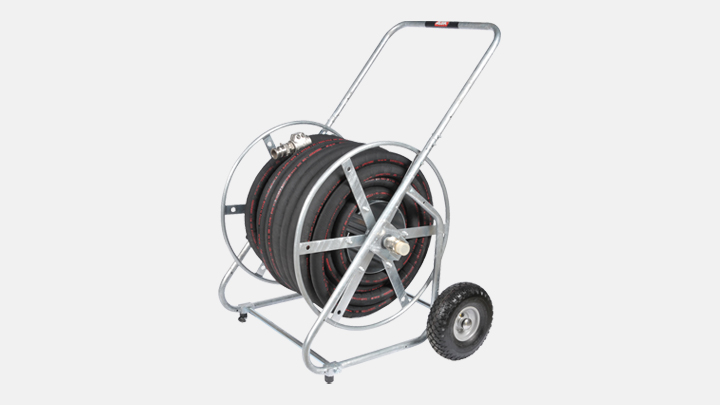

Trelleborg MtH Steam Hose
- 80 m Trellvast 1"
- wheelset for mobility
Certificates
International Standards
In conformance with worldwide standards.
European Standards
Devices meet the requirements of the applicable EC directives.
