Key Benefits
Video
Mud Compression
In heavily contaminated environments, mud can compress between the housing and seal, creating pressure that reduces efficiency and leads to failure.
Nexus Face Seal has a higher flexibility to manage the effects of mud compression, extending service life, particularly for vehicles operating in aggressive and viscous muds encountered on construction sites.
![MFS-Nexus-Mud-Compression](/seals/-/media/tss-media-repository/tss_website/products/latest-innovations/nexus/mfs-nexus-mud-compression.jpg?h=450&iar=0&w=800&rev=935e34f20ebd419bb9410a869bda618b&hash=A31E8D41256F6DADE3C7266B643DA69D)

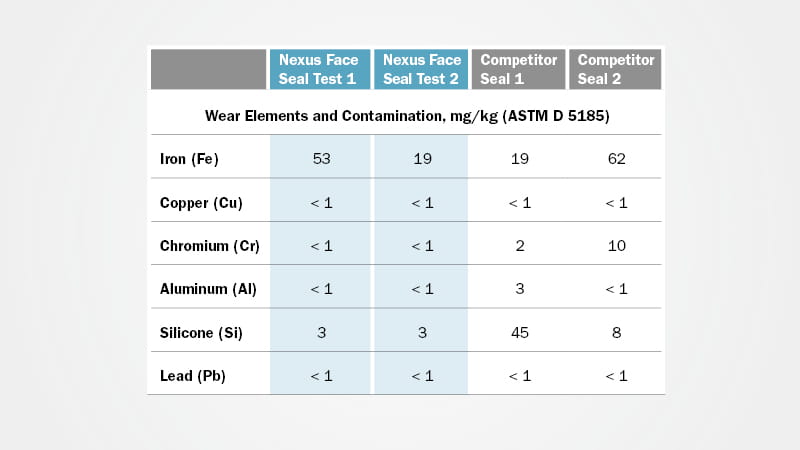

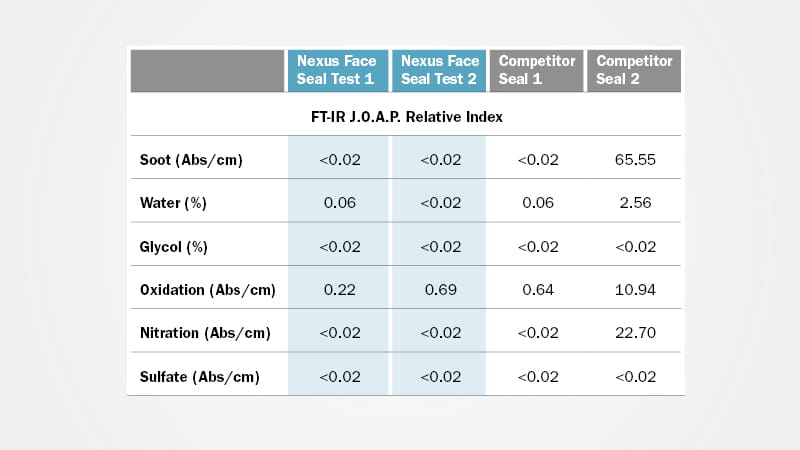

Contamination of Oil
Peripheral speed Up to 1.5 m/sec
Temperature Up to +200 °C based on O-Ring material
(as previous page)
Differential pressure Up to 3 bar as differential pressure
External diameter From 50 mm to 460 mm
![MFS-Nexus](/seals/-/media/tss-media-repository/tss_website/products/latest-innovations/nexus/mfs-nexus.jpg?h=450&iar=0&w=800&rev=11c8e003647b4642a2600900322e7027&hash=D91C3D8C813F1600EC964310661FBEF3)
