Forsheda® V-Ring provides a reliable sealing solution for rotary applications and other sealing demands in a wide range of industries, from wind-powered turbines and electric motors to passenger vehicles and domestic appliances.

It is a single-piece, all-rubber, rotary wiper seal that stretches to fit the shaft and is held in place by its own tension. Installed against a stationary or rotating countersurface, Forsheda® V-Ring provides effective axial sealing.

01VRingWEB01WebinarWEB800x450

Webinar

Forsheda® V-Ring - Unique Design for Superior Contaminant Exclusion

Trelleborg Sealing Solutions experts hosted a free-to-attend webinar to show how this seal can extend the service life of rotary applications and reduce total cost of ownership.

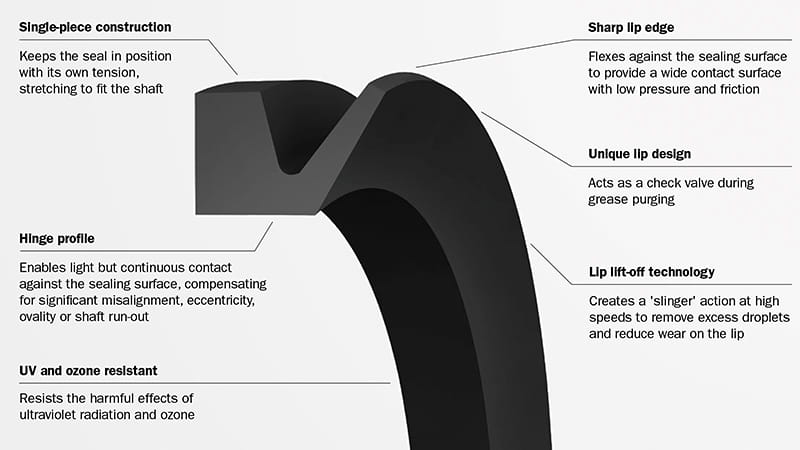

Features and Benefits

V-Ring_01
  • Retains lubricant while effectively excluding contaminants
  • Protects radial seals in abrasive environments
  • Lowers friction losses to reduce wear and extend seal life
  • Temperature resistant from -100 °C to +250 °C / -148 °F to +482 °F
  • Simplified design reduces overall cost
  • Permits axial movement or angular and radial misalignment
  • Simple installation - stretches onto the shaft or seating
  • No special machining required to close tolerances
  • Versatile enough for several fields of application
  • Reduced wear at high rotational speeds from lip lift-off technology
  • Optional splicing allows any size diameter
  • Suitable for partially submerged applications

Learn More

brochure web

Forsheda® V-Ring Brochure

Find design details, application information and testing data.
Download the brochure
rotary seal selector

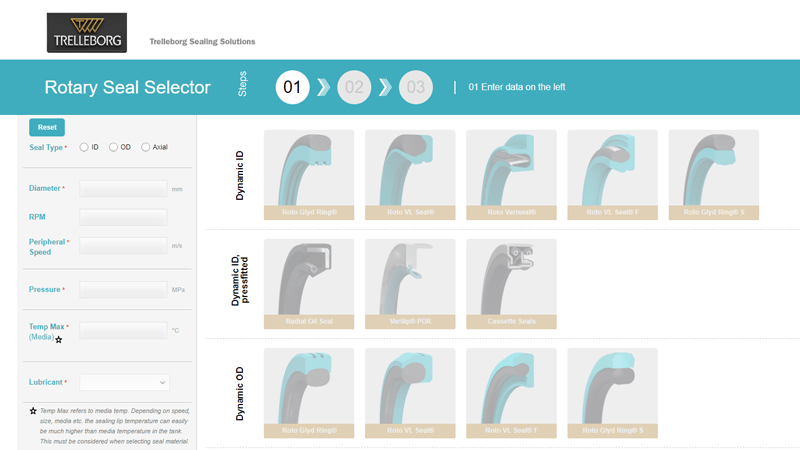

Rotary Seal Selector

Get advice on the use of rotary seals online or via the mobile app.
Read more
