Industrial Breakaway Couplings ambient

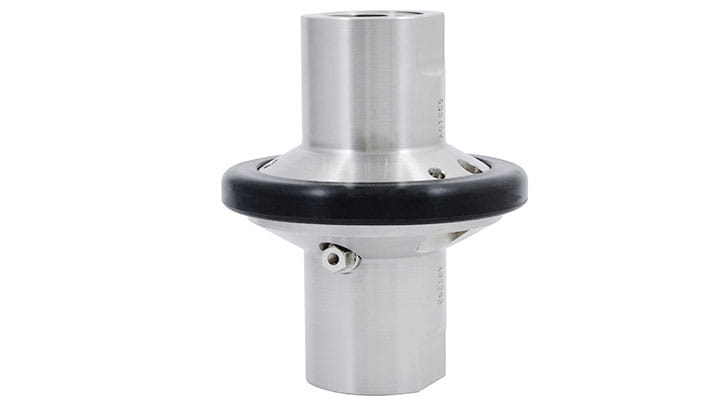

Size shown 1”

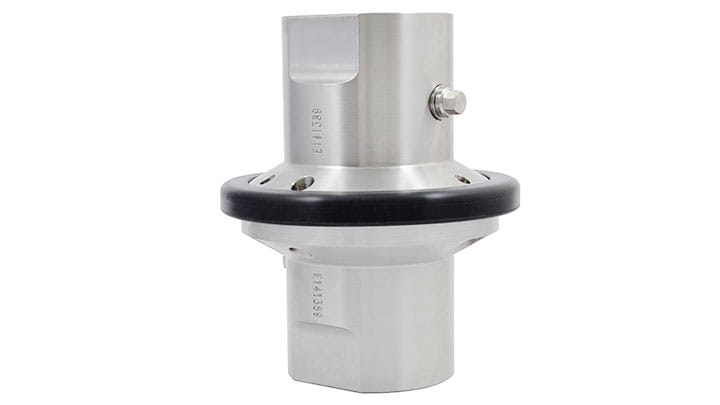

Size shown 2”

The latest in Industrial transfer protection

• Minimum headloss to ensure the fastest possible transfer times.
• Compact and lightweight design for easy handling.
• Reset plugs deliver easy to reset procedures after service or activation.
• ATEX cable is fitted as standard (where applicable).
• Multiple connection options.
• Option to include proximity switch.

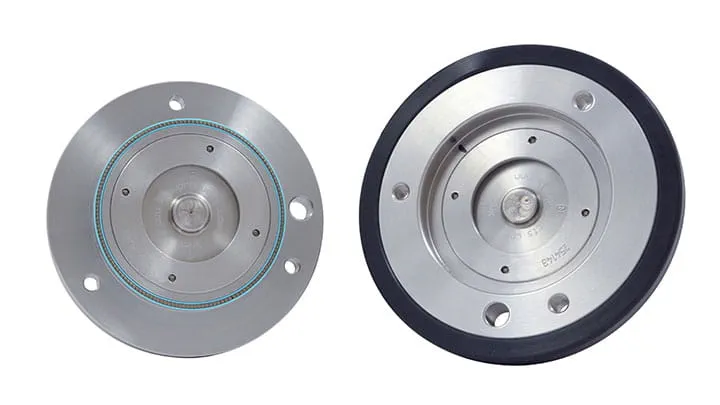

• KLAW Flip-Flap Valve and Breakstud technology avoids the risk of partial break.

• Road Tanker drive-off prior to disconnection.
• Shift or shunt of Railcars during loading or unloading operations.
• Ship-to-shore transfer operations.
• Over pressurization of the transfer system beyond the engineered tolerance of the Breakstuds.

• Loading Arms.
• Hose transfer assemblies; where at least one side of the coupling is attached to a rigid and fixed point.
• Refueling.
• Bunkering.
• Railcar.
• Road Tanker.
• Ship Terminals.
• Loading Bays.

• LPG
• Chemicals
• Ethanol
• Propane
• Bitumen
• Hydrochloric Acids
• Chlorine
• Diesel
• Fuel oil
• Ammonia
• Sulphuric Acid
• Jet Fuel

Sizes: 1″ to 12″.

Material options

• Carbon Steel
• Stainless Steel
• Duplex
• Super Duplex
• Hastelloy
• Alloy 20
• Aluminum

Other materials available on request.

Connection options

• Threaded
• Flanged
• Weld End Connections

Other connections available on request.
