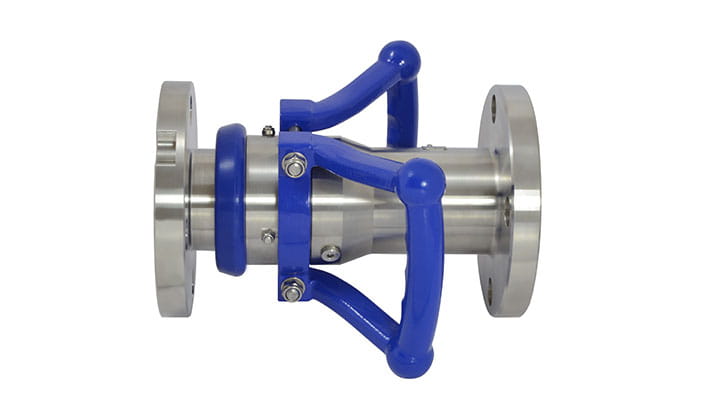

KLAW- CryoDC Cryogenic Dry Disconnect Coupling

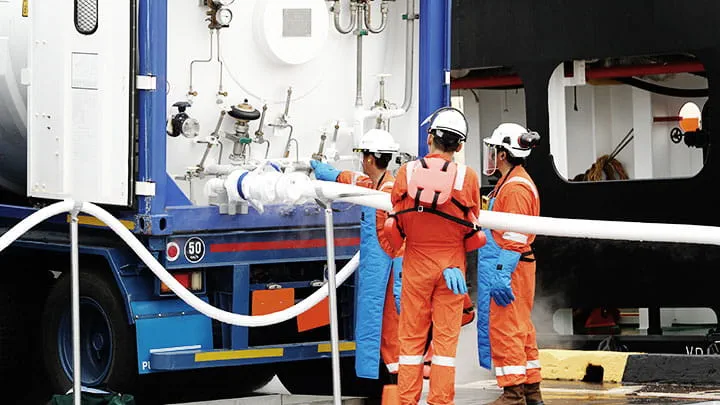

Typical applications
- Bunkering
- Tank storage facilities
- Refueling applications
- Air Separation Units (ASU)
- Trucks
- Railcars
- ISO Tanks
Click for Ambient Dry Disconnect
Specifications
Sizes: 2”, 3”, 4”, 6” and 8″

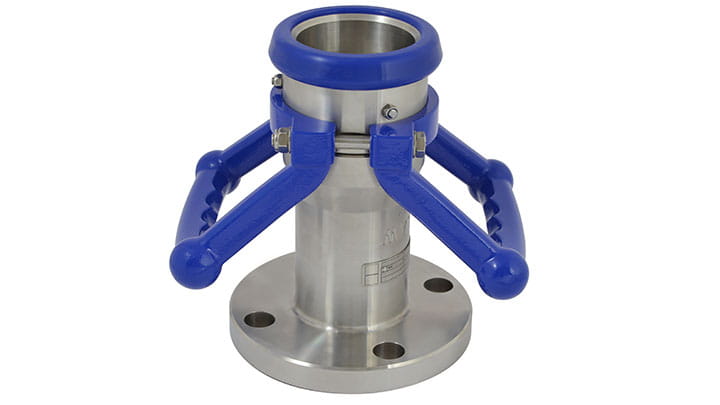

Hose Units
Material: Stainless Steel - Seal: Trelleborg PTFE - Available with ANSI150 Flange or NPT female. Other connections also available.
| Dimensions | L | Kg |
| 2" | 200mm | 6.5 |
| 3" | 257mm | 16.0 |
| 4" | 273mm | |
| 6" | Details on application | |
| 8" | Details on application | |

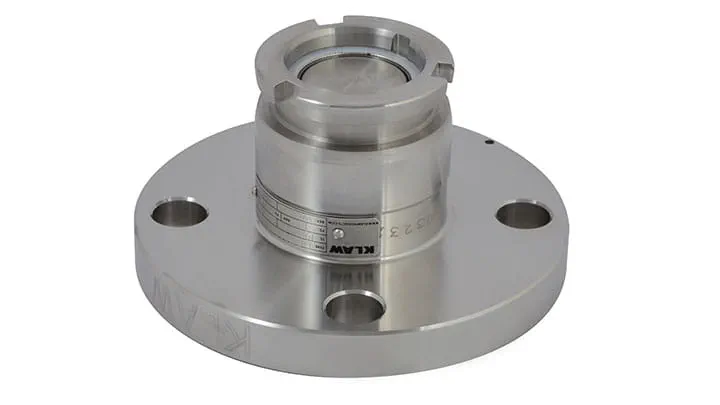

Tank Units
Material: Stainless SteelSeal: Trelleborg PTFEAvailable with ANSI150 Flange or NPT female.Other connections also available.
| Dimensions | L | Kg |
| 2" | 81mm | 3.1 |
| 3" | 123mm | 7.7 |
| 4" | 147mm | 11.5 |
| 6" | Details on application | |
| 8" | Details on application | |
Standards
- PED (Pressure Equipment Directive 97/23/EC)
- ATEX (directive 94/9/EC)
- ISO 18683 / ISO 21593
