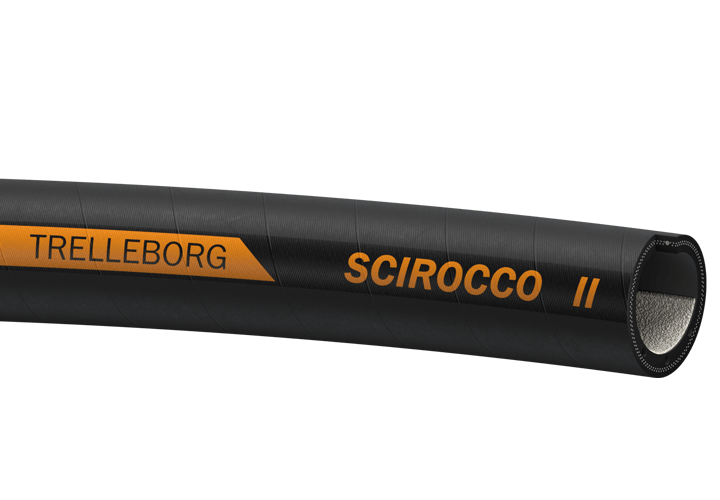

Scirocco II®hose, the flexible airslide
Scirocco II® hose from Trelleborg Industrial Hose provides an alternative to conventional systems for transport of dry powders through a processing system. Using fluidization principles, the unique hose allows easy cost-effective fitment into confined spaces, requires virtually no maintenance and most importantly uses less power. These factors mean that Scirocco II® hose can contribute to significant savings in overall processing costs.
Application
Scirocco II® hose is an alternative to conventional methods of transporting powder through processing systems such as screw, belt or air slide conveyor systems. The hose operates on the fluidization principle in which a granular material is converted from a static solid-like state to a dynamic fluid-like state when a gas is passed up through the granular material. Uniquely, the fluidization system of Scirocco II® is vulcanized into the lower wall of the rubber hose. This incorporates air supply ducts from which small openings lead into chambers covered with a breathing cloth membrane.
Flexibility of hose lowers installation costs

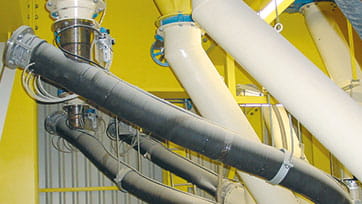

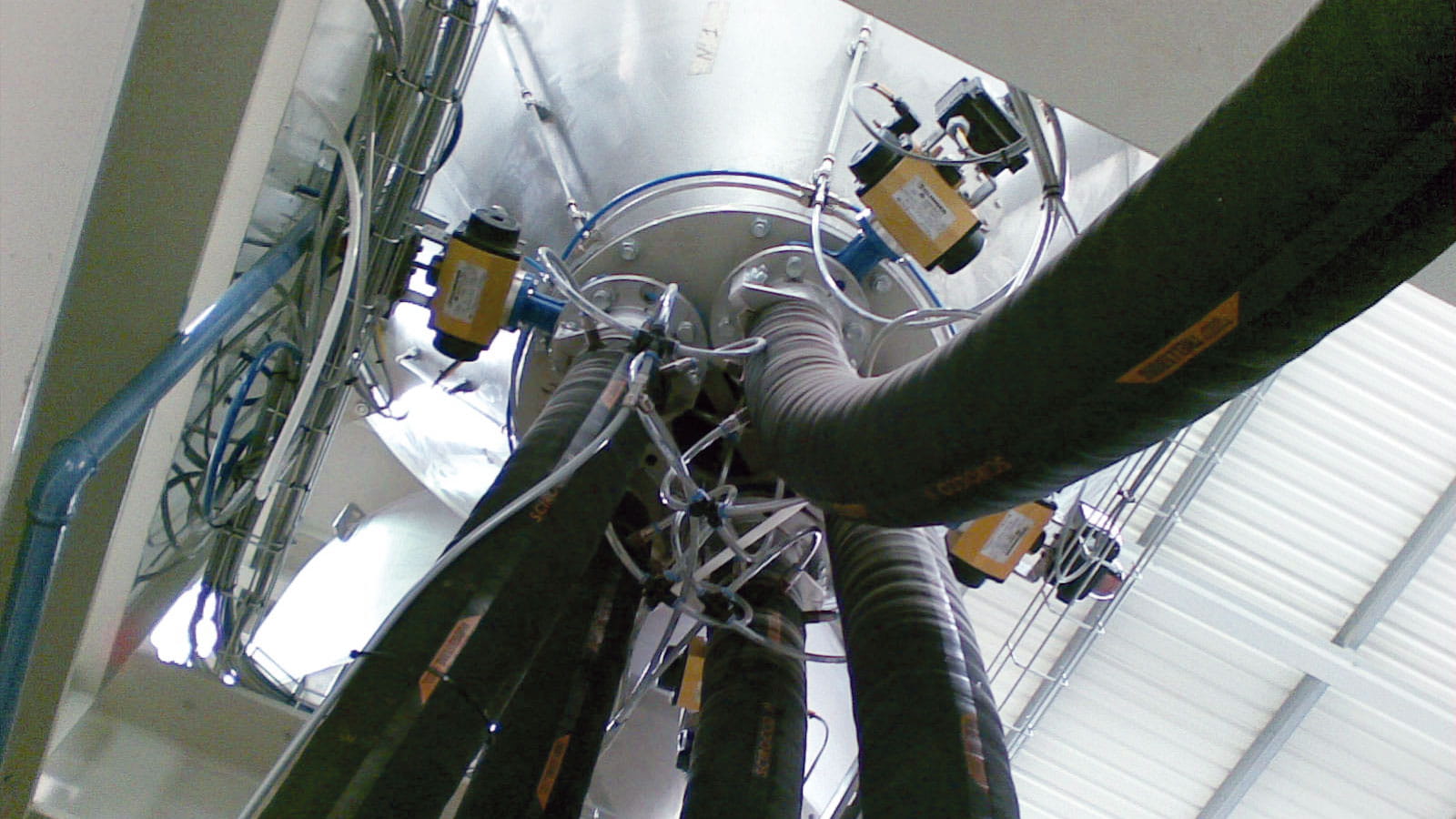

Another major advantage of Scirocco II® is that due to the flexibility of its rubber structure and its small cross section, the hose can easily be installed in and around existing plant and equipment. For instance, the hose can be mounted around a pillar or passed through openings where a straight screw conveyor cannot be installed due to its rigid design.
Often no equipment is required for installation and the hose can be mounted into place by hand. This can reduce upfront engineering and installation costs in new systems and allows retrofitment even into confined spaces.
These factors mean that investment costs compared to other conveyor systems is low. It is estimated that a Scirocco II® installation is virtually half the cost of a belt, spiral or screw conveyor system and around the same or slightly less than a Gatty, fluid or pneumatic system.
Often no equipment is required for installation and the hose can be mounted into place by hand. This can reduce upfront engineering and installation costs in new systems and allows retrofitment even into confined spaces.
These factors mean that investment costs compared to other conveyor systems is low. It is estimated that a Scirocco II® installation is virtually half the cost of a belt, spiral or screw conveyor system and around the same or slightly less than a Gatty, fluid or pneumatic system.
Scirocco II® hoses use significantly less energy than other powder transport systems
Tests have proven that Scirocco II® hoses require significantly less energy than other powder transport systems. In comparative testing against other powder transport systems results show that the Scirocco II® hose takes substantially less energy to move 50 tons per hour of cement over distances of 10 and 20 meters/ 33 and 66 feet. The table below summarizes results.
Customer references
For 15 years, numerous customers have been using our Scirocco II® with success.
Cementa Heidelberg Group, Sweden.
Download the Press Release.
Lafarge, France.
Download the Press Release.
Sakret, Germany.
Download the Press Release
Cementos Puma Spain
Download the Press Release
Martinswerk, Germany.
