Applications
Supply line for fresh air breathing masks and compressed air supply.
Advantages
Safe and durable.
High temperature resistance.
Very flexible.
Abrasion resistant cover.
Antistatic.
Design

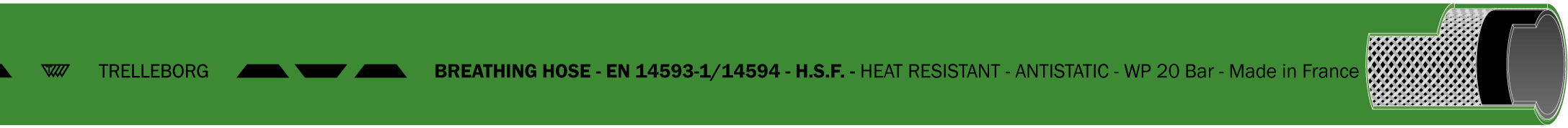

Technical drawing
Overview
Inner tube
EPDM, smooth, black,
Reinforcement
aramid, braided,
Cover
EPDM, black for ID 7.2mm, black or green for ID 9.5mm, green for ID 20mm, smooth, null,
Temperature range
-40 to +120
Special properties
conductive tube and cover,
10^3Ω/m
10^3Ω/m
Standard/Approval
EN 14593/14594.
Technical Specifications
| ID (mm) | Wall thickness (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number | Stock or min. order (m) |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
