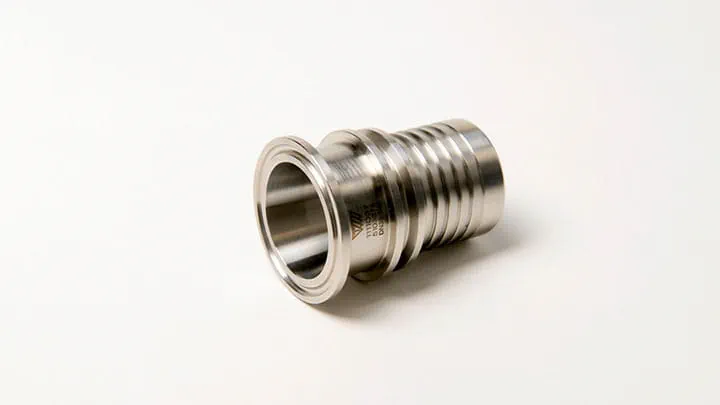

Technical information
- Shank according to EN 14420-2
- Material: stainless steel 316L/1.4404
- Working pressure: 16 bar
- Ra ≤ 0.5 on request
- Electropolishing on request
Related products
- UTS ferrules
- Safety clamps
- Clamp
- Gasket: FPM/EPDM/NBR/SILICONE
SMS norm
| Part number | OD Ferrule (mm) | DN Hose (mm) |
Stock |
| 5103375 | 50.5 | 25 | ok |
| 5103376 | 50.5 | 38 | ok |
| 5103377 | 64.0 | 50/51 | ok |
| 5103378 | 77.5 | 63 | ok |
| 5103379 | 91.0 | 75/76 | ok |
| 5103380 | 119.0 | 100/102 | ok |
ISO norm
| Part number | OD Ferrule (mm) | DN Hose (mm) |
Stock |
| 5103382 | 50.5 | 19 | Contact us |
| 5103383 | 50.5 | 25 | Contact us |
| 5103384 | 50.5 | 32 | Contact us |
| 5103385 | 64.0 | 32 | Contact us |
| 5103386 | 64.0 | 38 | Contact us |
| 5103387 | 77.5 | 50/51 | Contact us |
| 5103388 | 91.0 | 63 | Contact us |
| 5103389 | 106.0 | 75/76 | Contact us |
| 5103390 | 130.0 | 100/102 | Contact us |
Flexible Solutions

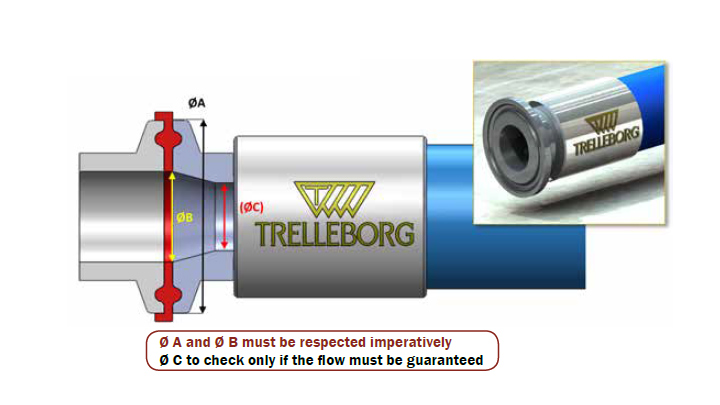

Micro CLAMP/mini CLAMP/CLAMP

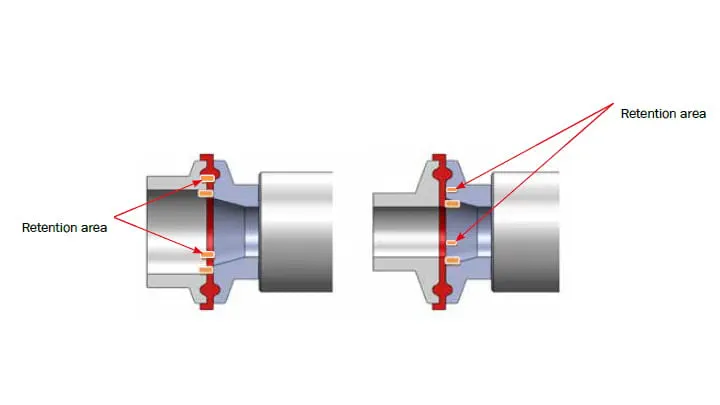

Retention area
CLAMP
| Ø A | B SMS | Ø B ISO | Ø B DIN |
Ø B BPE |
| 25.2 | - | - | - | 9.45 |
| 25.2 | - | - | - | 15.75 |
| 50.5 | - | 10.3 | - | - |
| 50.5 | - | 14 | - | - |
| 50.5 | - | 18.1 | - | - |
| 50.5 | 22.5 | 22.9 | 26 | 25.4 |
| 50.5 | - | 29.7 | 32 | - |
| 50.5 | 36.5 | 38.4 | 38 | 38.1 |
| 64 | - | 38.4 | - | - |
| 64 | 48.5 | 44.3 | 50 | 50.8 |
| 77/77.5 | 60.3 | 56.3 | - | 63.5 |
| 91 | - | 72.1 | 66 | - |
| 91 | 72.8 | 72.9 | - | 76.2 |
| 106 | - | 84.9 | 81 | - |
| 119 | 100 | - | 100 | 101.6 |
| 132 | - | 110.3 | - | - |
Mini CLAMP
| Ø A | Ø B ISO | Ø B DIN |
| 34 | 6 | - |
| 34 | 8 | - |
| 34 | 10 | 10 |
| 34 | 10.3 | - |
| 34 | 12 | - |
| 34 | 14 | - |
| 34 | 16 | 16 |
| 34 | 18.1 | - |
| 34 | 20 | - |
Micro CLAMP
| Ø A | Ø B ISO |
| 25 | 6 |
| 25 | 8 |
| 25 | 10 |
| 25 | 10.3 |
| 25 | 14 |
