PLUGYS VJ for manhole tightness testing are short and light, equipped with three eyebolts for a simple vertical insertion of a plug.

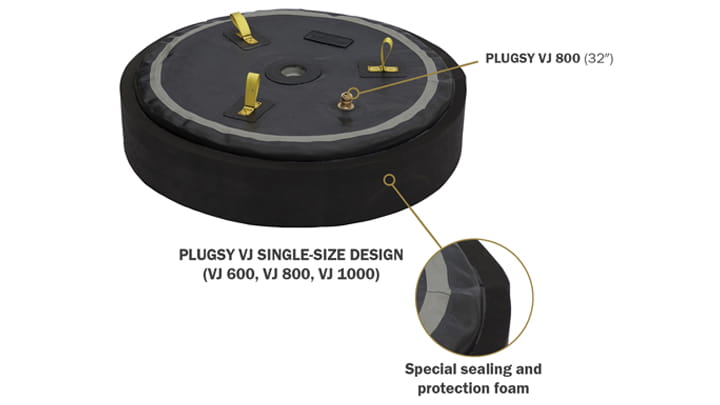

PLUGSY VJ Single-Size Design (VJ 600, VJ 800, VJ 1000)

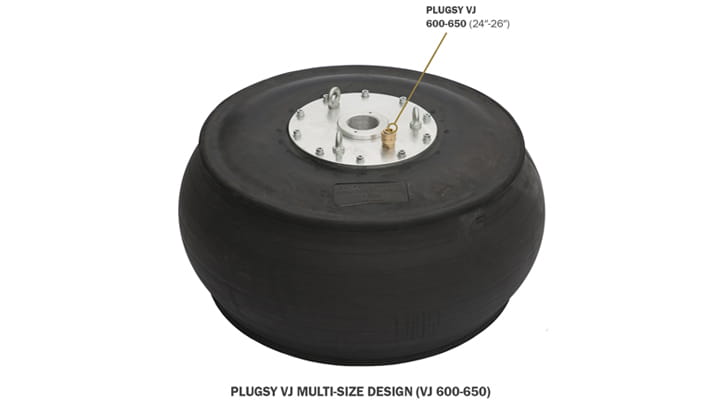

PLUGSY VJ Multi-Size Design (VJ 600-650)
Coupling System
Type 26
PLUGSY VJ - Bypass Plugs
|
PART NUMBER |
NOMINAL SIZE |
SIZE USAGE RANGE |
REQUIRED INFLATION PRESSURE [bar] / [psi] |
DEFLATED PLUG |
PRODUCT WEIGHT [kg] / [lbs] |
INFLATION VALVE |
BYPASS
DIAMETER (FEMALE) |
||
|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA. [mm] / [inch] |
MAX. DIA. [mm] / [inch] |
DIAMETER [mm] / [inch] |
LENGTH [mm] / [inch] |
THREAD
SIZE |
|||||
| 501841 | 600-650 / 24”-26” | 600 / 24” | 650 / 26” | 1.5 / 22 | 560 / 22” | 360 / 14” | 16 / 35 | R 1/4” | 2” |
| 538201 | 600 / 24” | 590 / 23” | 600 / 24” | 0.5 / 7 | 582 / 22.9” | 200 / 8” | 3.7 / 8 | R 1/4” | 2” |
| 573713 | 700 / 28" | 690 / 27" | 700 / 28" | 0.5 / 7 | 670 / 26" | 200 / 8" | 4.6 / 10.1 | R 1/4" | 2" |
| 535889 | 800 / 32” | 780 / 30.7” | 800 / 32” | 0.5 / 7 | 770 / 30” | 200 / 8” | 5 / 11 | R 1/4” | 2” |
| 535890 | 1000 / 40” | 980 / 38.5” | 1000 / 40” | 0.5 / 7 | 970 / 38” | 200 / 8” | 6.5 / 14 | R 1/4” | 2” |
