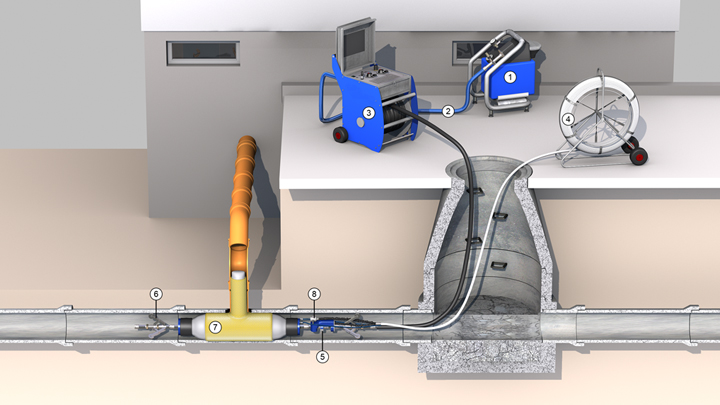

Operating Scheme
How it works
What you need to operate the Trelleborg LCR-S
-
Compressor - recommended capacity: 300 l/min; 8 bar (80 GPM, 116 psi)
-
Compressed air hose, 10 m (approx. 33 ft)
-
Trelleborg LCR-S Control Unit with monitor and combined air/electricity/video hose package and camera - 60m, 100 m or 150 m (approx. 197 ft, 328 ft, 492 ft)
Required power supply 120 / 240 V; 50/60 Hz, 2.5 A -
LCR-S Push Rod & Reel system - 100 m (328 ft) with Flex Adapter
-
LCR-S Rotary drive
-
LCR-S Wheelset
-
LCR-S packer
-
LCR-S Camera
Technical Components
What is included in the Trelleborg LCR-S System

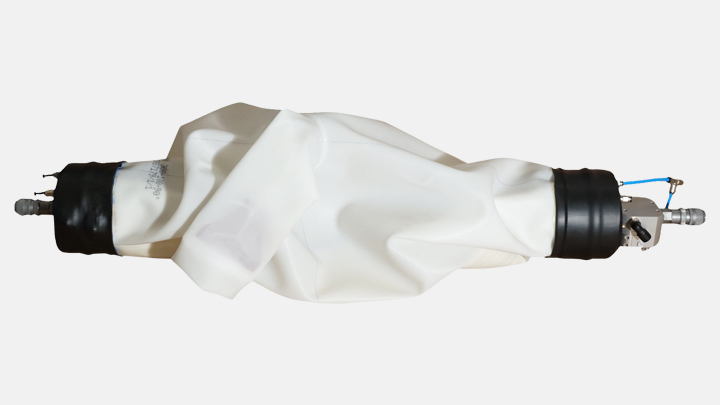

The Trelleborg LCR-S Packer
- Packertypes available for pipe diameters DN 135 - DN 600 in the main
and DN 100 - DN 200 in the lateral connection pipe. - Packers can be converted according to the requirements
Toolboxes with appropriate material for the packer conversion are provided - Repair length in the lateral pipe : 280 mm (Standard) or 600 mm
- Connection angle: 45° or 90°

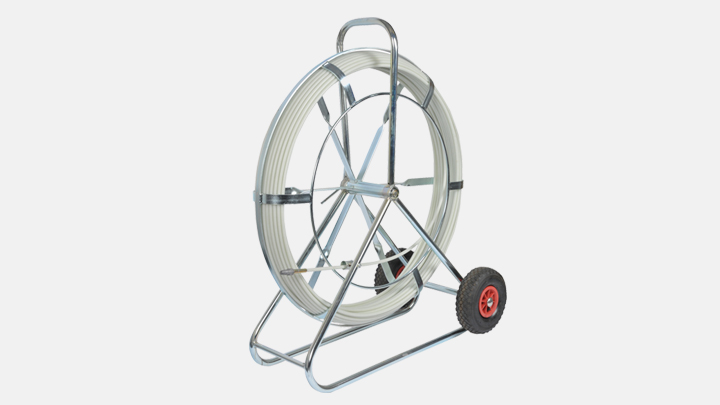

Trelleborg LCR-S Fibre Glass Push Rod
- Used to transport the LCR-S packer to the point of repair.
- 100 m glasfibre cable on a reel system, equipped with a flexible plug for the packer connection
- wheelset for mobility

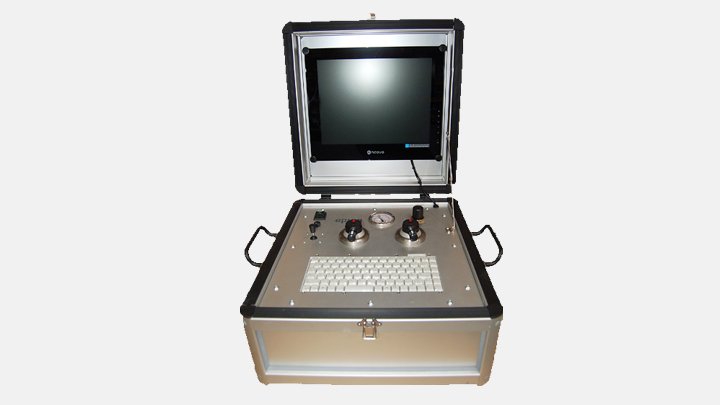

The Trelleborg LCR-S Control unit
- Controls the compressed air and the vacuum for the LCR packer, the pathfinder and the motor.
- Includes a high-quality monitor and a keyboard for data input as well as a video output (keyboard and programming in different languages available)
- Placed on the LCR-S Hose Reel which is equipped with a combined air/electricity/video-hose package
Trelleborg LCR-S/MtH Hose Reel
- Hose Reel with rotary feedthrough incl. camera cable and all supply lines
- Combined Air/electricity/video-hose package (60 m, 100 m or 150 m)
- Multi-function plug for packer connection
- Colour camera (PAL) with LED lights
- Sapphire crystal camera head for LCR packer
- Fill and release valve for nitrogen
