Trelleborg Curing Units
Exact positioning and careful liner installation are basic requirements for perfect results. This takes time you often don’t have with quick reacting resins.
Using our Trelleborg Resins with long pot times give you the time you need. They provide a stress-free working environment and enable you to achieve good-quality results. The somewhat longer installation time can be compensated by accelerating the curing process by hot water or steam.
Our epoxy resins are designed to have the best mechanical properties after curing with heat. We recommend steam-curing as this method saves energy, water and time and will enable you to reach the maximum mechanical properties of the cured liner. Furthermore it will allow you to carry out pipe rehabilitation quicker, more efficient and most cost-effective.

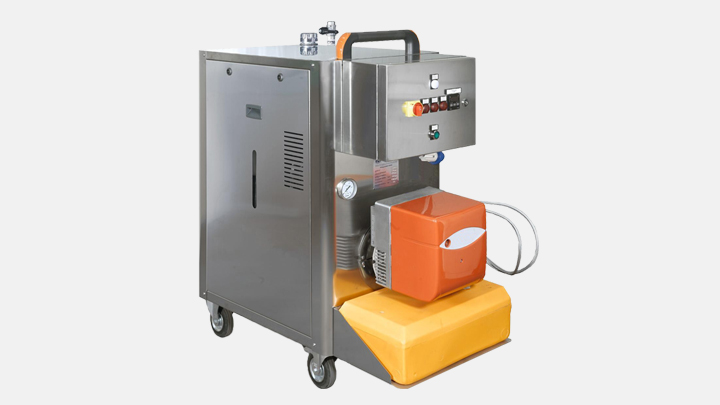

Trelleborg Steam Generators for CIPP Lining methods and MtH
Available in two versions:
50 kg/h, 150 kg/h steam production
(higher capacities on request)
- Suitable for both house service pipes and vertical lines
- Oil-fired steam generator types with a steam production of 50 kg/h, 150 kg/h respectively
- Heat-up time approx. 10 minutes
- Completely automatic working
- Mixed manufacturing with water pipes and smoke pipes
- Low maintenance - high efficiency:
- 90% output
- Stainless steel frame
- Insulated inside and coated with a stainless steel plate on the outside.
- Supplied on wheels - two self-blocking.
- Equipped with oil burner and external service tank
- (The smoke outlet connector is at the backside)

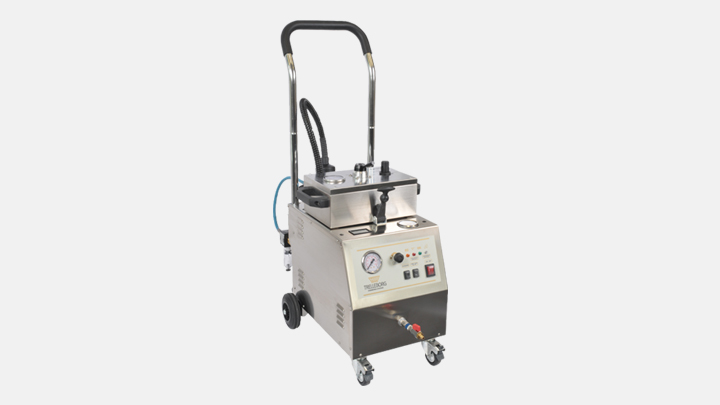

Trelleborg Steam Generators for the LCR-B method
Available in two versions:
3 kg/h, 6 kg/h steam production
This small steam unit is the best solution if you want to speed up the curing time of built-in hat profiles or LCR liner, using the Trelleborg LCR method for lateral connection repair of underground house sewers and downpipes in buildings. It is easy to handle and suited for portable use.
- Steam Gen 3: 230 V / 3.5 kW / steam production 3 kg/h
- Steam Gen 6: 400 V / 6.0 kW / steam production 6 kg/h
Maximum Pressure: 6 bar

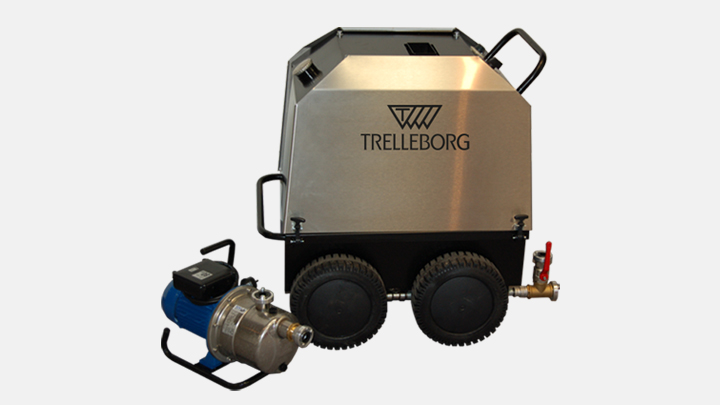

Trelleborg Water boiler 90
A perfect solution for hot water curing of Trelleborg Liners for pipe diameters of up to DN 200 and repair length of approx. 50 m.
The Trelleborg Water Boiler 90 is designed to be used for the Trelleborg Inversion Drums or alternative inversion systems.
If you need a compact and easy-to-handle type of hot water generator the Trelleborg Water Boiler 90 is recommended.
| Technical Features |
Trelleborg Steam Generator Types | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type Gen 50 |
Type Gen 150 |
Type Gen 200 |
Type Gen 300 |
Type Gen 400 |
Type Gen 500 |
Type Gen 600 |
Type Gen 700 |
Type Gen 800 |
||||
| Steam production | kg/h | 50 | 150 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | ||
| kW | ||||||||||||
| Heat potential | kcal/h | 29 000 | 90 000 | 120 000 | 180 000 | 240 000 | 300 000 | 360 000 | 420 000 | 480 000 | ||
| kW | 34 | 105 | 140 | 211 | 281 | 352 | 422 | 492 | 562 | |||
| Pressure | bar | 12 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||
| max. oil consumption | kg/h | 3 | 9.5 | 13 | 19.6 | 20 | 32.6 | 42.8 | 45.7 | 52.1 | ||
| Width (A) | mm | 450 | 600 | 750 | 850 | 850 | 1400 | 1400 | 1400 | 1500 | ||
| Height (B) | mm | 1000 | 1300 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | ||
| Depth (C) | mm | 750 | 1100 | 2400 | 2400 | 2400 | 2700 | 2700 | 2700 | 3000 | ||
| Weight | kg | 300 | 370 | 700 | 880 | 900 | 950 | 1000 | 1050 | 1200 | ||
| Chimney | Θ | 120 | 120 | 160 | 160 | 200 | 250 | 300 | 300 | 300 | ||
| Power supply | A | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| Operating Voltage | V / Hz | 230 / 50 | 230 / 50 | 400 / 50 | 400 / 50 | 400 / 50 |
400 / 50 |
400 / 50 |
400 / 50 |
400 / 50 |
||
| Max. water consumption | l/h | 50 | 160 | 220 | 330 | 440 | 550 | 660 | 770 | 880 | ||
| Heat-up time (approx.) | min | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | ||
| Steam Outlet | inch | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Steam hose | mm | 25 | 25 | 25 | 50 | 50 |
50 |
50 |
50 |
50 |
||
