Trelleborg Epoxy Resin Systems
Resin systems for a holistic approach to "no-dig" renovation of house connection pipes
Fast & ambient curing

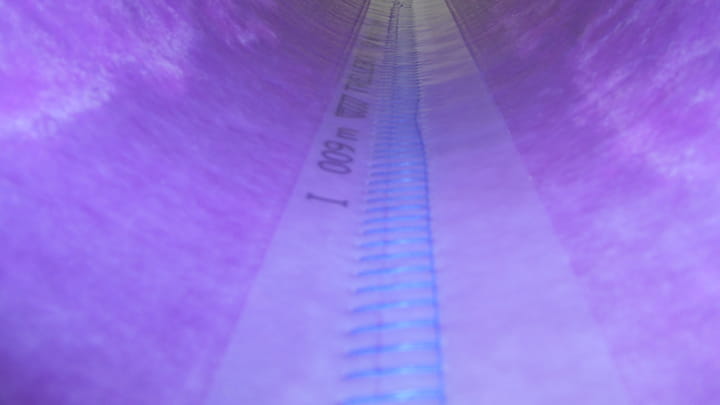

Trelleborg Epoxy FC15/FC30
- Pot life (25 °C):
15 and 30 minutes, respectively - Ambient curing (20 °C):
2 and 4 hours, respectively

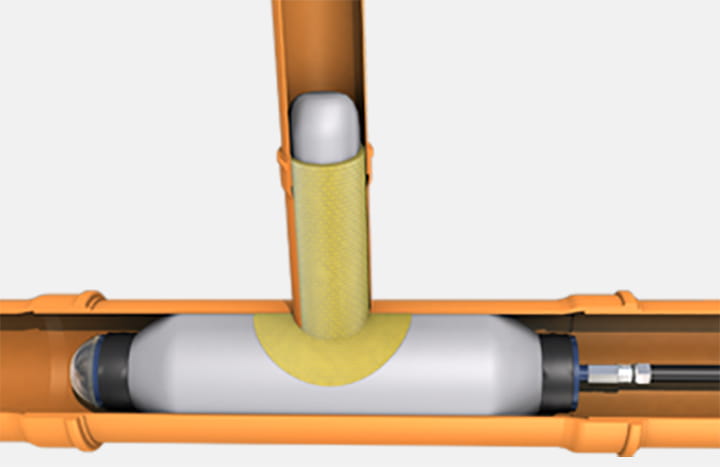

Perfect for short rehabilitation distances and smaller pipe diameters. Well suited for lateral connection repairs with the Trelleborg LCR-B Liner method. No curing equipment necessary.
Steam curing

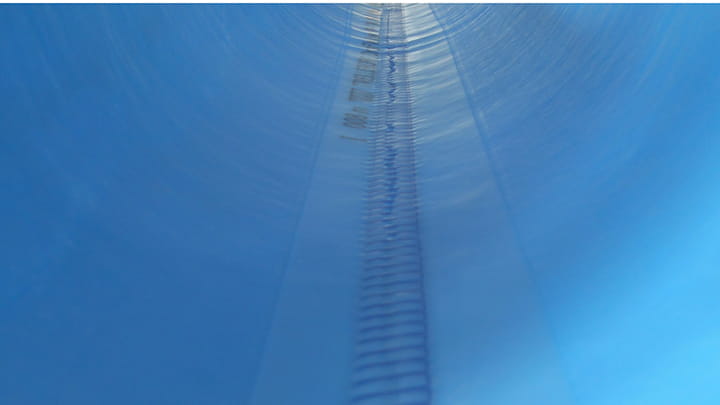

Trelleborg Epoxy HC120
- Pot life: (25°C):
120 minutes - Curing time with hot water or steam:
90 and 45 minutes, respectively
Highly recommended for longer rehabilitation lengths and larger pipe diameters up to DN 600
Hot curing

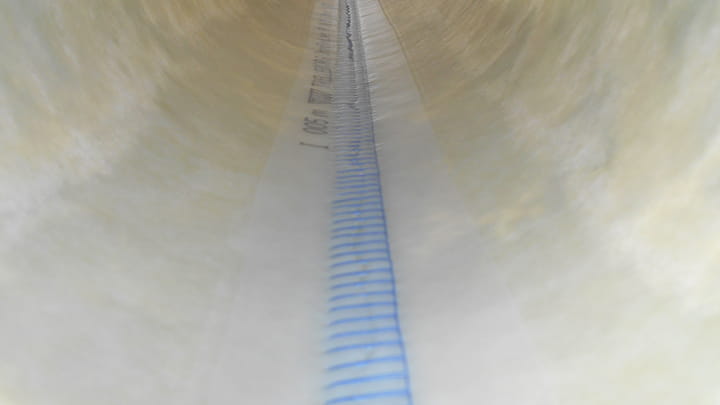

Trelleborg Epoxy HC60
- Pot life: (25°C):
60 minutes - Curing time with hot water or steam:
60 and 30 minutes, respectively
Recommendable for short rehabilitation lengths and pipe diameters up to DN 400

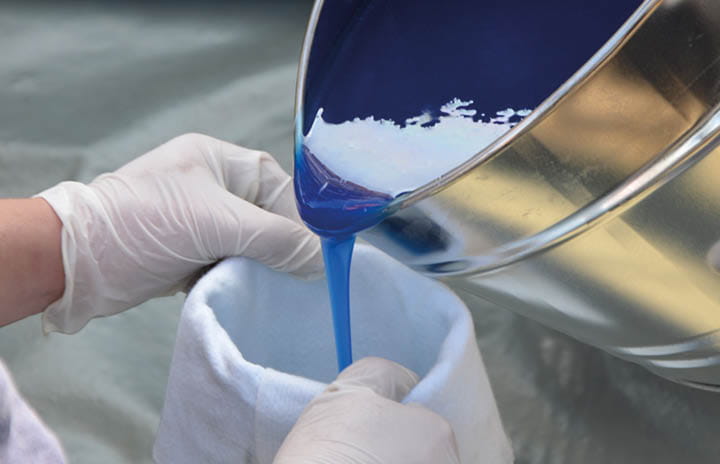

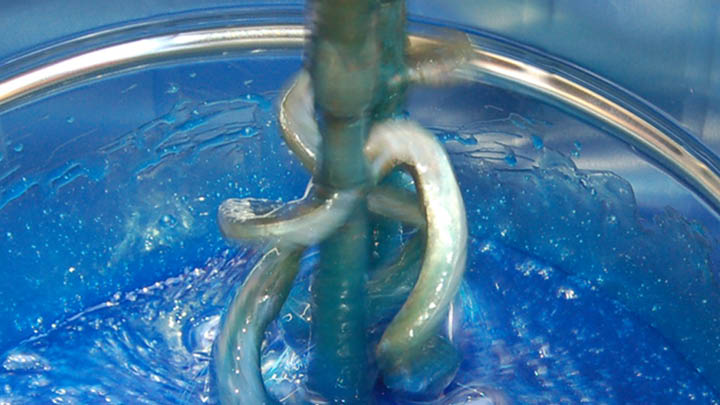

2-component Epoxy Resin System
Our 2-component, solvent-free, unfilled and pigmented epoxy resin-based reactive resin systems cover a wide range of applications. This provides the user with the optimum reactive resin system with the right pot life for a wide range of construction site conditions and temperatures.
The resins in the EasyPox range impress with their good workability, good impregnation behaviour and the resulting good mechanical properties. Optimized for use in sewer rehabilitation, the product has good chemical resistance and is therefore resistant to all standard household waste water. All product variants are low-viscosity and capillary-active, which makes impregnation of the pipe liner even easier.
For ambient and heat curing
Easy Pox 1504
- Pot Life (20°C): approx. 12–18 minutes
- Ambient curing (20°C): 4 hours
- Hot curing (>50°C): >40 minutes
Easy Pox 3008
- Pot Life (20°C): approx. 30 minutes
- Ambient curing (20°C): 8 hours
- Hot curing (50–60°C): 30–60 minutes
Easy Pox 4514
- Pot Life (20°C): approx. 45 minutes
- Ambient curing (20°C): 14 hours
- Hot curing (50–60°C): 45–90 minutes
Easy Pox 6024
- Pot Life (20°C): approx. 50–70 minutes
- Ambient curing (20°C): 24 hours
- Hot curing (50–60°C): 60–120 minutes
Easy Pox 9030
- Pot Life (20°C): approx. 65-90 minutes
- Ambient curing (20°C): 30 hours
- Hot curing (50–60°C): 90–180 minute

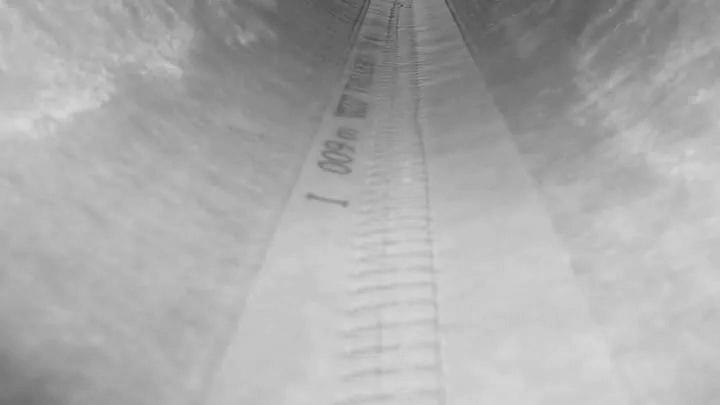

For heat curing
Easy Pox T0530
- Pot Life (20°C): approx. 5-9 hours
- Hot curing (>60°C): 4 hours
- Hot curing (>50°C): 8 hours
Easy Pox T0880
- Pot Life (20°C): approx. 7-11 hours
- Hot curing (>60°C): 6 hours
- Hot curing (>50°C): 12 hours
Leveraging Trelleborg’s one-stop shop to combine quality with speed

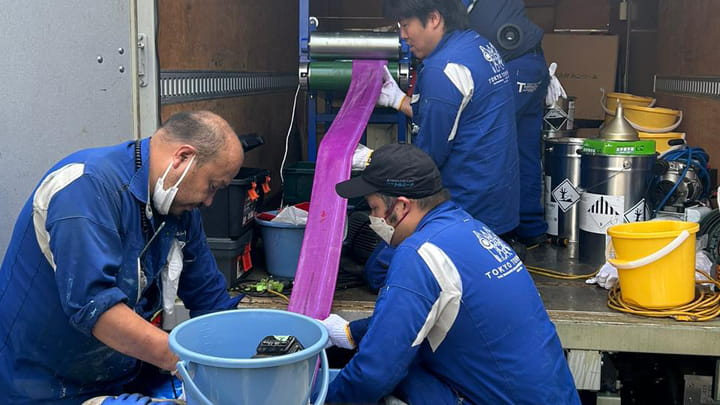

Mount Fuji is one of Japan’s most popular tourist destinations.
In the nearby resort town of Izuyama, the cast iron sewage pipeline system was in desperate need of repair.
The local contractor, Tokyo Tornado, was allotted 10 hours for the repairs to minimize inconvenience to residents.
Certificates
Technical Approval
No. Z-42.3-488
DN 50 to DN 200
DrainLiner method in buildings
with EpoxyResin
Types HC60, HC120, HC120+
Technical Approval
Technical Approval
