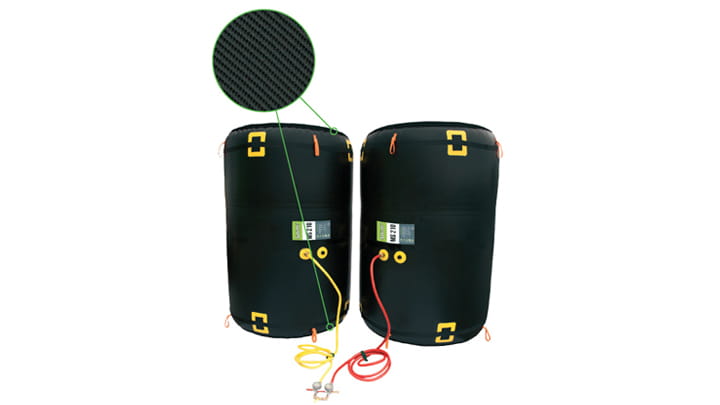

Low-pressure lifting bags are used for lifting very large objects. They have special Top Grip pads bonded to the top and bottom of the bag.
Top Grip pad offers heavy duty protection from slipping, puncture, abrasion and premature wear. Used for uprighting trucks, rail cars, and other types of vehicles or structures.
Key features & benefits
- Lifting height up to 2.1 m
- Ideal for towing recovery
- Special TOP GRIP pads
- Use on all grounds (rock, glass, metal)
| TYPE | PART NUMBER | DIMENSIONS | WEIGHT |
WORKING PRESSURE |
NOMINAL CONTENT |
AIR REQUIREMENT |
MAX LIFTING CAPACITY |
MAX. LIFTING HEIGHT |
INFLATION VALVE |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DIAMETER | HEIGHT | |||||||||
| [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [l] / [cu./Ft.] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | Thread size | ||
| MS 45 | 527296 | 102 / 40" | 10 / 4" | 16 / 35 | 0.5 / 7.3 | 368 / 13 | 551 / 20 | 4 / 4.4 | 45 / 18 | R 1/2”-female |
| MS 122 | 527297 | 135 / 53" | 10 / 4" | 30 / 66 | 0.5 / 7.3 | 1745 / 62 | 2618 / 93 | 7 / 7.7 | 122 / 48 | R 3/4”-male |
| MS 210 | 527298 | 145 / 57" | 10 / 4" | 43 / 95 | 0.5 / 7.3 | 3466 / 122 | 5199 / 184 | 9 / 9.9 | 210 / 83 | R 3/4”-male |

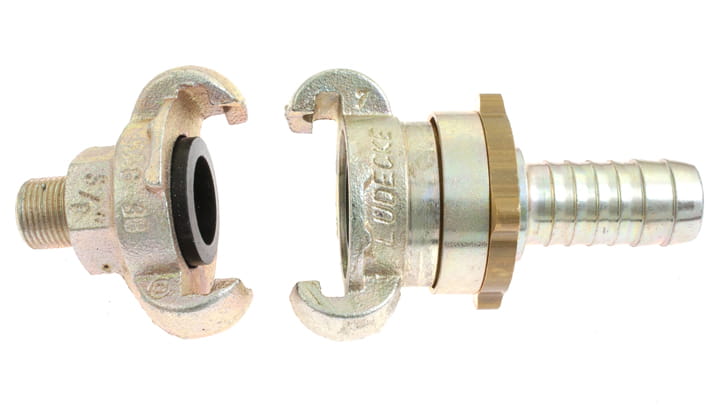

Coupling System
Type Claw
Controllers
Single fitting controller
0.5 bar (7.3 psi)
1.0 kg (2.2 lbs)
553361
Double fitting controller
0.5 bar (7.3 psi)
2.5 kg (5.5 lbs)
507801

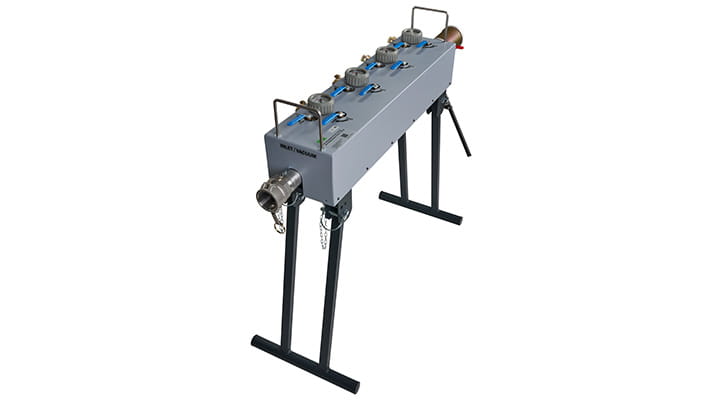

FKT controller
40.0 kg (88 lbs) 4-port - 545631
53.0 kg (117 lbs) 6-port - 545632
*Other sizes on request
Adapters
Shut-off + safety valve
0.5 bar (7.3 psi)
0.4 kg (0.8 lbs)
577465
Adapter Claw/26
0.15 kg (0.33 lbs)
529704
Compressor blower
124.0 kg (273 lbs)
545639
Accessories

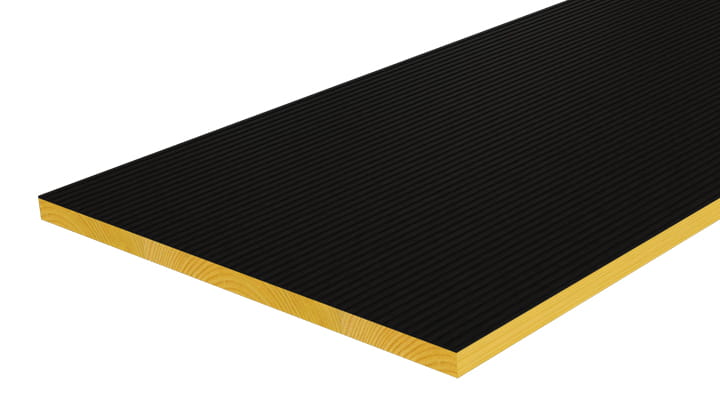

Protection plate wood+top grip
11.0 kg (24 lbs)
581227
Repair kit
0.1 kg (0.22 lbs)
522050
Inflation Hoses
Red rigid
5 m (16’), 2 kg (4.4 lbs) - 595741
15 m (49’), 5 kg (11 lbs) - 594222
Yellow rigid
5 m (16’), 2 kg (4.4 lbs) - 595743
15 m (49’), 5 kg (11 lbs) - 594221
Grey rigid
5 m (16’), 2 kg (4.4 lbs) - 595744
15 m (49’), 5 kg (11 lbs) – 594220
Green rigid
5 m (16’), 2 kg (4.4 lbs) - 596722
15 m (49’), 5 kg (11 lbs) - 586724
|
PART |
DESCRIPTION |
LONG HEAVY VEHICLE SET |
HEAVY VEHICLE SET |
|
|
Quantity [pc] |
||||
|
1 |
527296 |
MS 45 |
2 |
1 |
|
2 |
527298 |
MS 210 |
4 |
2 |
|
3 |
545632 |
CONTROLLER FKT-6 |
1 |
|
|
4 |
545631 |
CONTROLLER FKT-4 |
1 |
|
|
5 |
545639 |
COMPRESSOR/BLOWER |
1 |
1 |
|
6 |
586724 |
INFLATION HOSE (RIGID 15 m (49’)) |
6 |
3 |
|
7 |
522050 |
REPAIR KIT FOR LOW PRESSURE BAGS |
1 |
1 |
|
8 |
581227 |
PROTECTION PLATE WOOD+TOPGRIP |
6 |
3 |
