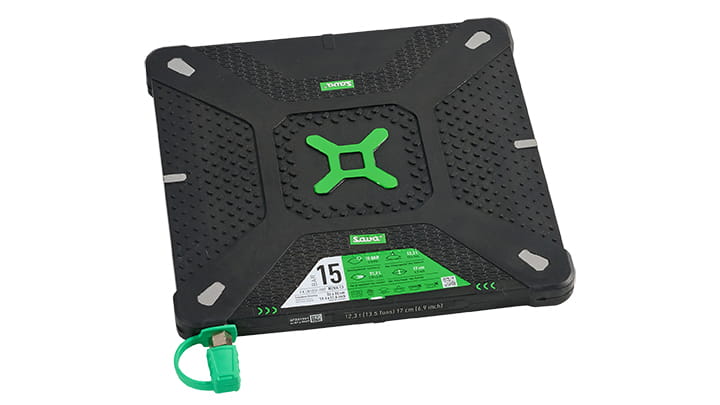

NOVA lifting bags, a novelty in our high-pressure lifting bags assortment, will astonish with its lifting capacity and pressure class. With boosting the already proven properties of our existing assortment we introduce a new concept in the field of rescue and recovery. Introducing new design with many new features on both, the bags and accessories.
Key features & benefits
- Extremely durable
- Lifting height marking
- EN 13731 NFPA 1936
- Interlocking system
| TYPE |
PART NUMBER |
DIMENSIONS | WEIGHT |
WORKING PRESSURE |
AIR REQUIREMENT |
MAX. LIFTING CAPACITY |
MAX. LIFTING HEIGHT |
||
|---|---|---|---|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | |||||||
| [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | ||
| NOVA 2 | 608061 | 15 / 6″ | 15 / 6″ | 2.2 / 0.9″ | 0.5 / 1.2 | 15 / 218 | 5.2 / 0.18 | 1.7 / 1.9 | 8 / 3″ |
| NOVA 6 | 608062 | 23.5 / 9.2″ | 23.5 / 9.2″ | 2.2 / 0.9″ | 1.2 / 3 | 15 / 218 | 25.8 / 0.91 | 6.2 / 6.8 | 13 / 4.9″ |
| NOVA 13 | 608063 | 32 / 12.6″ | 32 / 12.6″ | 2.5 / 1″ | 2.5 / 5.5 | 15 / 218 | 73.2 / 2.59 | 12.3 / 13.5 | 17 / 6.9″ |
| NOVA 21 | 608064 | 40 / 15.7″ | 40 / 15.7″ | 2.5 / 1″ | 4 / 8.8 | 15 / 218 | 152 / 5.37 | 20.5 / 22.6 | 22 / 8.5″ |
| NOVA 31 | 608065 | 48 / 18.9″ | 48 / 18.9″ | 2.5 / 1″ | 5.7 / 12.6 | 15 / 218 | 273.4 / 9.66 | 31.2 / 34.3 | 26 / 10.4″ |
| NOVA 41 | 608066 | 55 / 22″ | 55 / 22″ | 2.5 / 1″ | 7.5 / 16.5 | 15 / 218 | 422 / 14.9 | 41.3 / 45.4 | 30 / 11.9″ |
| NOVA 51 | 608067 | 61 / 24″ | 61 / 24″ | 2.5 / 1″ | 9.3 / 20.5 | 15 / 218 | 585 / 20.66 | 51.4 / 56.5 | 34 / 13.2″ |
| NOVA 63 | 608068 | 67 / 26.4″ | 67 / 26.4″ | 2.5 / 1″ | 11.2 / 24.7 | 15 / 218 | 786 / 27.76 | 63.2 / 69.5 | 37 / 14.4″ |
| NOVA 81 | 608069 | 76 / 30″ | 76 / 30″ | 2.7 / 1.1″ | 15.5 / 34.2 | 15 / 218 | 1167 / 41.21 | 81.5 / 89.7 | 41 / 16.3″ |
| NOVA 100 | 608070 | 84 / 33″ | 84 / 33″ | 2.7 / 1.1″ | 19 / 41.9 | 15 / 218 | 1595 / 56.33 | 100.3 / 110.3 | 46 / 17.9″ |

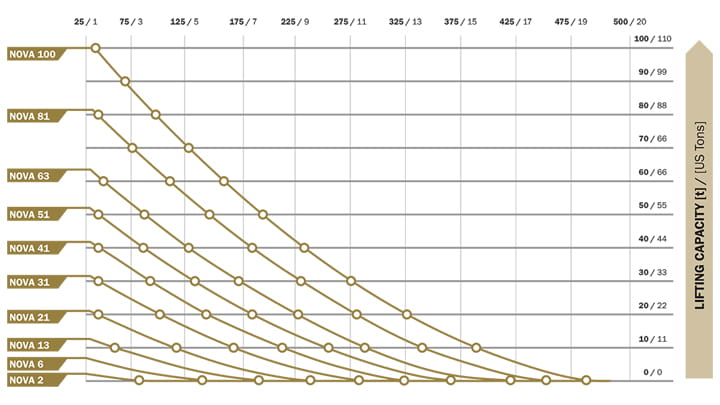

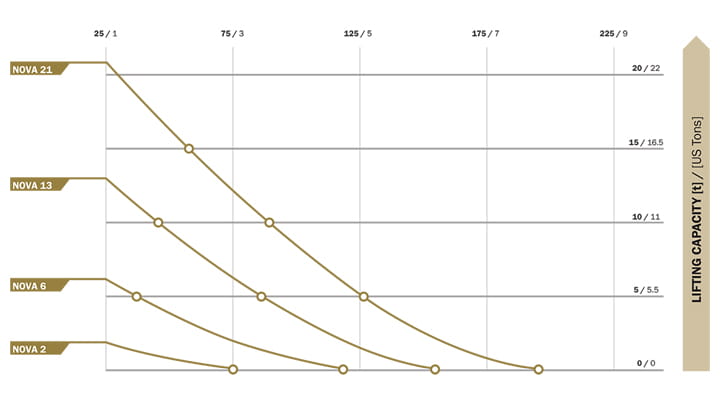

Lifting Height [mm] / [Inch]

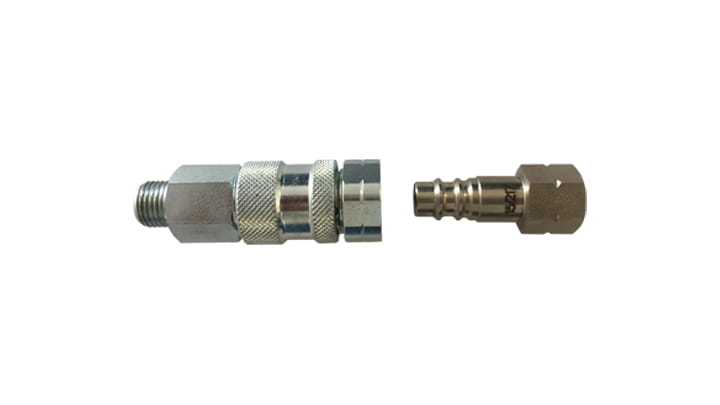

Coupling System
Type KD-S
Rubber Inflation Hoses
Rubber inflation hose - Red
5 m (16’), 1.5 kg (3.3 lbs) - 611195
10 m (33’), 3 kg (6.6 lbs) - 611197
Rubber inflation hose - Yellow
5 m (16’), 1.5 kg (3.3 lbs) - 611191
10 m (33’), 3 kg (6.6 lbs) - 611192
Rubber inflation hose - Blue
5 m (16’), 1.5 kg (3.3 lbs) - 611193
10 m (33’), 3 kg (6.6 lbs) - 611194
Rubber inflation hose - Grey
5 m (16’), 1.5 kg (3.3 lbs) - 611198
10 m (33’), 3 kg (6.6 lbs) - 611199Controllers

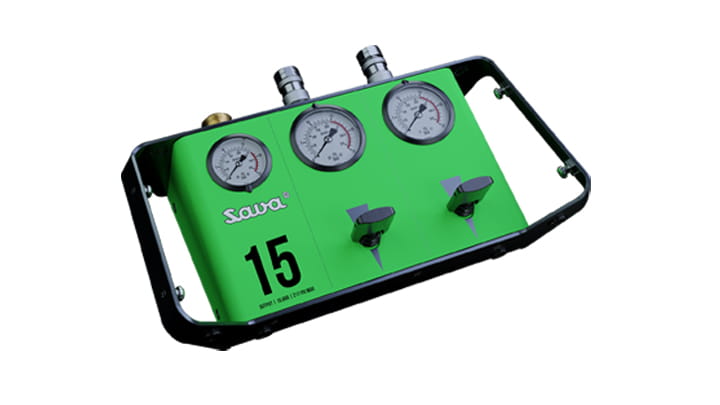

Double deadman controller 2 EXP 15
15 bar (218 psi)
3.0 kg (6.6 lbs)
609799

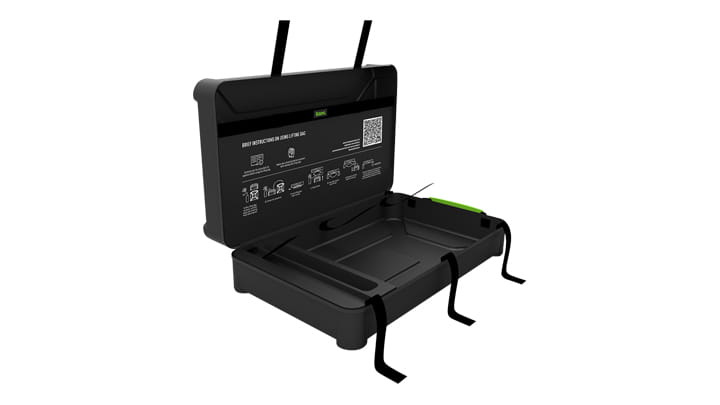

Protective case for Exp controllers
1.2 kg (2.6 lbs)
613218
Accessories

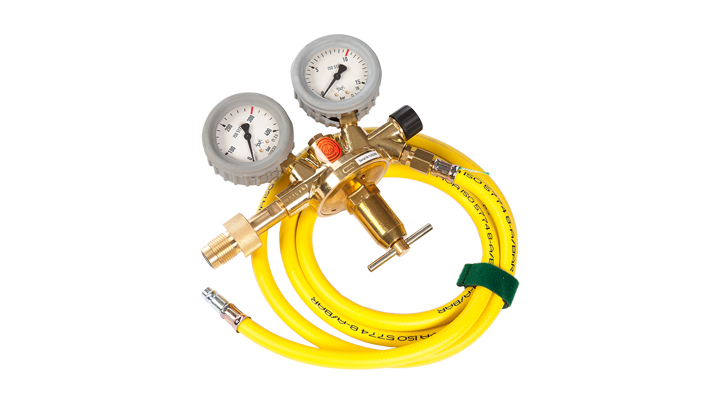

Pressure reducer
15 bar (174 psi)
300 bar (4350 psi)
2.2 kg (4.9 lbs)
EN - 609794
CGA - 615247
Inflation Accessories
Inflation accessories have been designed for precision control, high reliability and long life.
They are used with all of our lifting bags – from the source of air to controllers.
Compressed air cylinder
300 bar (4350 psi)
6L (366 cu.in.)
9.0 kg (20 lbs)
528746
Carry-on valise for compressed air cylinder
0.1 kg (2.2 lbs)
519811
Universal connector kit
0.2 kg (0.44 lbs)
519809
Truck tyre valve connection
0.1 kg (2.2 lbs)
519806
Truck tyre valve
0.05 kg (0.11 lbs)
519805
Compressed air mains
0.05 kg (0.11 lbs)
519808
Truck tyre inflator adapter
0.05 kg (0.11 lbs)
519807
Dual connector for compressed air cylinders
1.0 kg (2.2 lbs)
529383
Triple connector for compressed air cylinders
1.2 kg (2.6 lbs)
529384
Truck compressed air connection
0.4 kg (0.88 lbs)
529005
Truck compressed air connection-blind coupling
0.5 kg (1.1 lbs)
529006
Adapter for construction site compressor
0.2 kg (0.44 lbs)
529704
Safety carrier rack-two cylinder 6L (366 cu.in.) modul-trolley system
3.0 kg (6.6 lbs)
542868
Safety carrier rack-four cylinder 6L (366 cu.in.) modul-trolley system
5.0 kg (11 lbs)
542872
Loading plates
Load Plate # 350 - 556308
3.5 kg (7.7 lbs)
Load Plate # 420 - 556309
5.0 kg (11 lbs)
Load Plate # 520 - 556310
7.5 kg (16.5 lbs)
Load Plate # 670 - 556311
13.0 kg (29 lbs)
