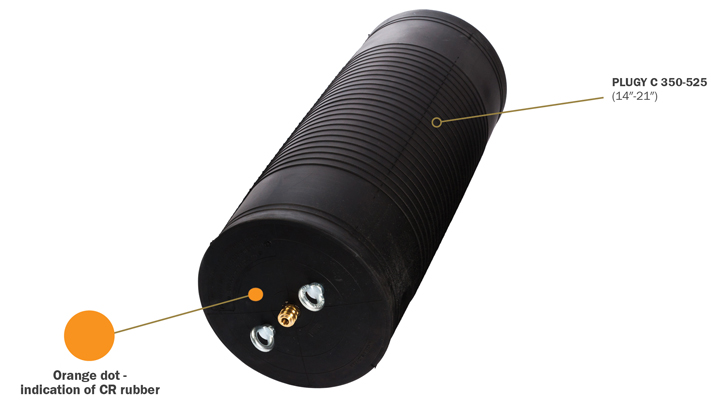

Trelleborg PLUGY C and PLUGSY C are made from special CR rubber compound and are reinforced with aramid cord.
Owing to their superb resistance to certain chemicals, they are ideal for use in the oil and gas industry.
PLUGY C - Blocking Plugs
|
PART NUMBER |
NOMINAL
SIZE |
SIZE USAGE RANGE |
REQUIRED
INFLATION PRESSURE [bar] / [psi] |
DEFLATED PLUG |
PRODUCT
WEIGHT [kg] / [lbs] |
EYE BOLT |
INFLATION VALVE |
||
|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA.
[mm] / [inch] |
MAX. DIA.
[mm] / [inch] |
DIAMETER
[mm] / [inch] |
RUBBER LENGTH [mm] / [inch] |
M THREAD | THREAD SIZE | ||||
| 526621 | 40–70 / 1.6"-2,8" | 40 / 1.6” | 70 / 2.8” | 2.5 / 36 | 35 / 1.4” | 160 / 6” | 0.2 / 0.4 | NA | R 1/4” |
| 526622 | 70–150 / 2.8"-6" | 70 / 2.8” | 150 / 6” | 2.5 / 36 | 68 / 2.7” | 300 / 12” | 0.4 / 0.9 | NA | R 1/4” |
| 60506 | 100–200 / 4"-8" | 100 / 4” | 200 / 8” | 2.5 / 36 | 92 / 3.6” | 500 / 20” | 1.35 / 3 | M6 | R 1/4” |
| 60507 | 150–300 / 6"-12" | 150 / 6” | 300 / 12” | 2.5 / 36 | 142 / 5.6” | 540 / 21” | 2.6 / 6 | M8 | R 1/4” |
| 60510 | 200–400 / 8"-16" | 200 / 8” | 400 / 16” | 2.5 / 36 | 192 / 7.6” | 600 / 24” | 3.6 / 8 | M8 | R 1/4” |
| 526623 | 300–525 / 12"-21" | 300 /12” | 525 / 21” | 2.5 / 36 | 272 / 10.7” | 630 / 25” | 6.8 / 15 | M8 | R 1/4” |
| 60511 | 350–600 / 14"-24" | 350 / 14” | 600 / 24” | 2.5 / 36 | 322 / 12.7” | 830 / 33” | 9.8 / 22 | M10 | R 1/4” |
| 526624 | 375–750 / 15"-30" | 375 / 15” | 750 / 30” | 2.5 / 36 | 342 / 13.5” | 1050 / 41” | 11.9 / 26 | M10 | R 1/4” |
| 526625 | 500–800 / 20"-32" | 500 / 20” | 800 / 32” | 2.5 / 36 | 472 / 18.6” | 1150 / 45” | 19.5 / 43 | M10 | R 1/4” |
| 510070 | 500–1000 / 20"-40" | 500 / 20” | 1000 / 40” | 1.5 / 22 | 472 / 18.6” | 1150 / 45” | 19.5 / 43 | M10 | R 1/4” |
| 526626 | 600–1200 / 24"-48" | 600 / 24” | 1200 / 48” | 1.5 / 22 | 574 / 22.6” | 1450 / 57” | 38 / 84 | M10 | 2 x R 3/8” |
PLUGSY C - Bypass Plugs
|
PART NUMBER |
NOMINAL SIZE |
SIZE USAGE RANGE |
REQUIRED INFLATION PRESSURE [bar] / [psi] |
DEFLATED PLUG |
PRODUCT WEIGHT [kg] / [lbs] |
EYE BOLT |
INFLATION VALVE |
BYPASS DIAMETER (FEMALE) |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA.
[mm] / [inch] |
MAX. DIA. [mm] / [inch] |
DIAMETER [mm] / [inch] |
RUBBER LENGTH [mm] / [inch] |
M THREAD | THREAD SIZE | |||||
| 526637 | 100-200 / 4"-8" | 100 / 4” | 200 / 8” | 2.5 / 36 | 92 / 3.6” | 500 / 20” | 2.7 / 6 | M6 | R 1/4” | 1” |
| 526636 | 150-300 / 6"-12" | 150 / 6” | 300 / 12” | 2.5 / 36 | 142 / 5.6” | 540 / 21” | 4.3 / 9 | M8 | R 1/4” | 1” |
| 526635 | 200-400 / 8"-16" | 200 / 8” | 400 / 16” | 2.5 / 36 | 192 / 7.6” | 600 / 24” | 7 / 15 | M8 | R 1/4” | 2” |
| 526634 | 300-525 / 12"-21" | 300 /12” | 525 / 21” | 2.5 / 36 | 272 / 10.7” | 630 / 25” | 12 / 26 | M8 | R 1/4” | 2” |
| 526633 | 350-600 / 14"-24" | 350 / 14” | 600 / 24” | 2.5 / 36 | 322 / 12.7” | 830 / 33” | 16 / 35 | M10 | R 1/4” | 2” |
| 526631 | 375-750 / 15"-30" | 375 / 15” | 750 / 30” | 2.5 / 36 | 342 / 13.5” | 1050 / 41” | 19.7 / 43 | M10 | R 1/4” | 2” |
| 526629 | 500-800 / 20"-32" | 500 / 20” | 800 / 32” | 2.5 / 36 | 472 / 18.6” | 1150 / 45” | 32.5 / 72 | M10 | R 1/4” | 2” |
| 526628 | 500-1000 / 20"-40" | 500 / 20” | 1000 / 40” | 1.5 / 22 | 472 / 18.6” | 1150 / 45” | 32.5 / 72 | M10 | R 1/4” | 2” |
| 526627 | 600-1200 / 24"-48" | 600 / 24” | 1200 / 48” | 1.5 / 22 | 574 / 22.6” | 1450 / 57” | 55.5 / 122 | M10 | 2 x R 3/8” | 4” |
Back Pressures [Bar] / [Psi]* - PLUGY C, PLUGSY C
| PLUG SIZE | PIPE DIAMETER [mm] / [inch] | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 / 1.5” | 70 / 2.8” | 100 / 4” | 150 / 6” | 200 / 8” | 250 / 10” | 300 / 12” | 350 / 14” | 400 / 16” | 500 / 20” | 600 / 24” | 800 / 32” | 1000 / 40” | 1200 / 48” | |
| 40-70 / 1,6"-2,8" | 2.0/29 | 1.2/17 |
|
|
|
|
|
|
|
|
|
|
|
|
| 70-150 / 2,8"-6" |
|
2.2/32 | 1.7/25 | 1.3/19 |
|
|
|
|
|
|
|
|
|
|
| 100-200 / 4"-8" |
|
|
2.2/32 | 1.7/25 | 1.3/19 |
|
|
|
|
|
|
|
|
|
| 150-200 / 6"-8" |
|
|
|
2.0/29 | 1.5/22 |
|
|
|
|
|
|
|
|
|
| 150-300 / 6"-12" |
|
|
|
2.2/32 | 2.0/29 | 1.4/20 | 1.2/17 |
|
|
|
|
|
|
|
| 200-400 / 8"-16" |
|
|
|
|
2.2/32 | 2.0/29 | 1.7/25 | 1.5/22 | 1.2/17 |
|
|
|
|
|
| 300-525 / 12"-21" |
|
|
|
|
|
|
2.0/29 | 1.7/25 | 1.5/22 | 1.2/17 |
|
|
|
|
| 350-600 / 14"-24" |
|
|
|
|
|
|
|
2.1/30 | 1.9/28 | 1.6/23 | 1.3/19 |
|
|
|
| 375-750 / 15"-30" |
|
|
|
|
|
|
|
|
2.0/29 | 1.7/25 | 1.4/20 |
|
|
|
| 500-800 / 20"-32" |
|
|
|
|
|
|
|
|
|
1.8/26 | 1.4/20 | 1.1/16 |
|
|
| 500-1000 / 20"-40" |
|
|
|
|
|
|
|
|
|
1.0/15 | 0.8/12 | 0.6/9 | 0.5/7 |
|
| 600-1200 / 24"-48" |
|
|
|
|
|
|
|
|
|
|
1.0/15 | 0.7/10 | 0.6/9 | 0.5/7 |
Coupling System
Type 26
Accessories
Single Fitting Controller
0.9 kg (2 lbs)
2.5 bar (36 psi) - 60310
2.0 bar (29 psi) - 565643
1.5 bar (22 psi) - 74609
1.0 bar (15 psi) - 74653
Hand Held Single Deadman
2.5 bar (36 psi)
0.9 kg (2 lbs)
519442
Inflation Hose Grey
10 m (33’)
1.2 kg (2.6 lbs)
614341
Poly Lift Inflation Hose
10 m (33’), 2.4 kg (5.3 lbs)
615288
