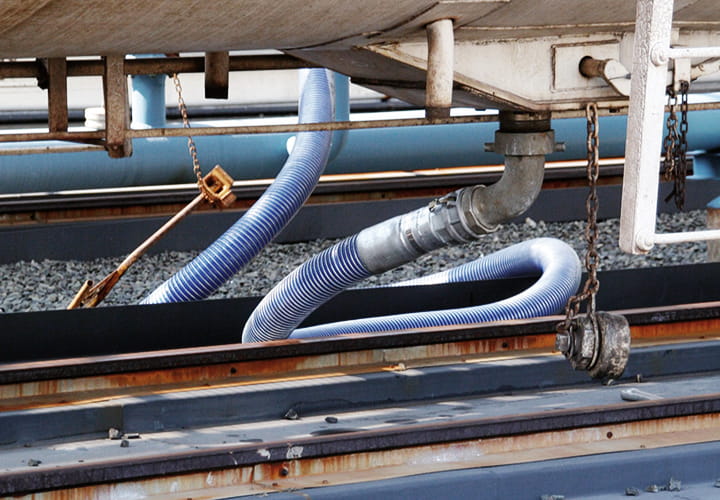

Gutteling Tanktruck Blue hoses are extreme flexible and low weight. This ensures that they are easy to handle by operators and truck drivers.


Gutteling Tanktruck Blue hoses are available with Galvanized Steel and Aluminum wires. The design pressure is rated at 10.5 bar with a safety fact of 4:1. These hoses are produced and tested according international standards like EN 13765, AS 2683 and BS 3492.

Applications

GUTTELING TANKTRUCK BLUE hoses are specially designed for conveying hydrocarbons and aromatics, for tanktruck applications. The hoses are light weighted and have a high flexibility, therefore the GUTTELING TANKTRUCK BLUE hoses are easy to handle by operators and truck drivers.

GUTTELING TANKTRUCK BLUE hoses are obtainable in two types, with Galvanized steel inner wire or with Aluminium inner wire to obtain a lower weight.

Physical Properties

  • Maximum elongation: 10% on proof pressure
  • Electrical resistance: max. 100 Ohm per length
  • Maximum twist: 10° p/m
  • Vacuum range: 0,9 bar
  • Min. burst pressure: 4x working pressure (safety fact 4:1)
  • Max. flowrate: on request
  • Temperature range: -30°C up to +100°C (-22F up to +212F)

Technical Description

Inner wire: Galvanized steel, Polypropylene coated steel or Aluminium

Lining: Polypropylene

Outer cover: Polyester PVC coated blue

Outer wire: Galvanized steel

Standard / Approval

GUTTELING TANKTRUCK BLUE hoses are produced and tested according international standards like

EN 13765, AS 2683 & BS 3492.

Complementary Information

Other outer wire qualities (Aluminum, Polypropylene coated steel, Stainless steel 316/304) are available upon request. Other cover colors available upon request.

Assembled lengths are delivered with pressure test certificate.

Design

GUTTELING TANK TRUCK BLUE

Downloads

More in-depth information about Gutteling Tanktruck Blue hoses is available in our datasheet.

Download PDF

Certificates

Gutteling Composite Hoses are fully type approved by several international classification societies.

Read more
