Applications
For spraying of mortar and mixed concrete as well as dry products.
Used as a service hose between pump and nozzle in transporting plaster, grout and ready mixed concrete.
Advantages
Light weight, flexible and is easy to handle.
Abrasion resistant tube compound.
Conductive inner tube compound gives increased safety for the operator.
Design

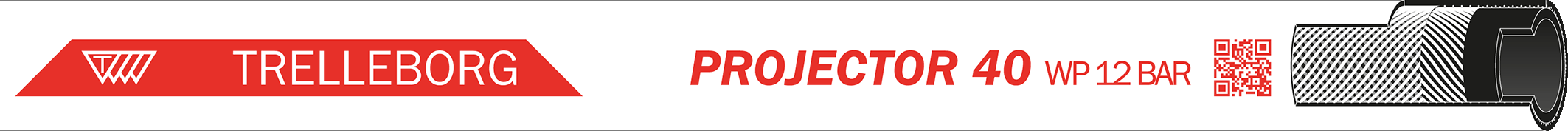

Technical drawing
Overview
Inner tube
wear resistant NR, smooth, black,
Reinforcement
synthetic textile,
Cover
wear and weather resistant SBR, fabric impression, black,
Temperature range
-30 to +70
Electrical properties
conductive tube, R<2.10^6Ω/m.
Special properties
abrasion resistance of tube <40mm3 according to ISO 4649.
Technical Specifications
| ID (mm) | Wall thickness (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number | Stock or min. order (m) |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
