Expansion Joints - TEGUFLEX®
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Easy to install with good performance and long service life.
Easy to install with good performance and long service life.

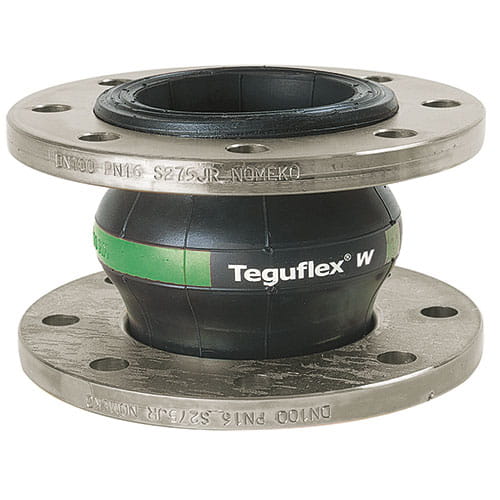

TEGUFLEX® W
Building length: 150 - 300 mm
Dimensions: DN 25 - DN 1000
Dimensions: DN 25 - DN 1000
TEGUFLEX® C
Building length: 100 mm
Dimensions: DN 25 - DN 150
Dimensions: DN 25 - DN 150

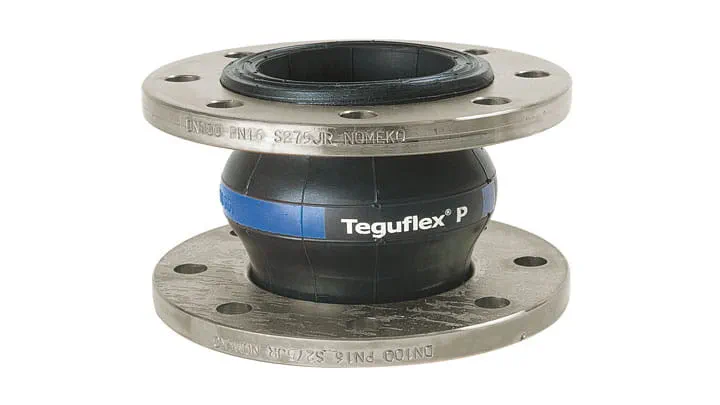

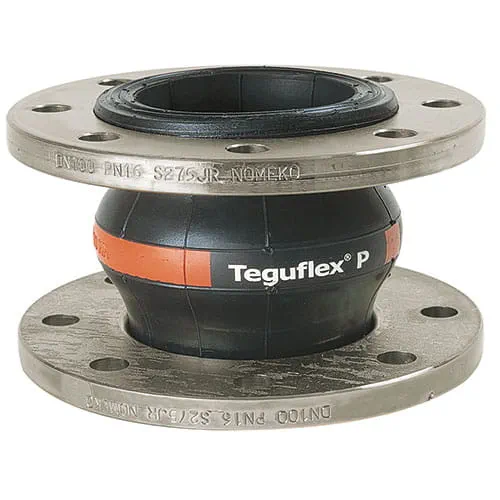

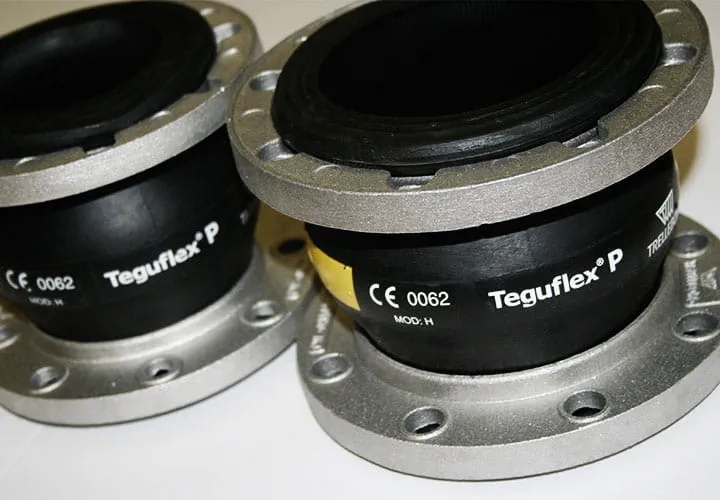

TEGUFLEX® P
Building length: 130 mm
Dimensions: DN 25 - DN 300
Dimensions: DN 25 - DN 300
Customized expansion joints
We offer you the opportunity of designing and manufacturing a tailor-made full faced rubber flanges expansion joint to cover the most constraining applications, in term of dimensions, fluid, temperatures, admissible movements, etc...

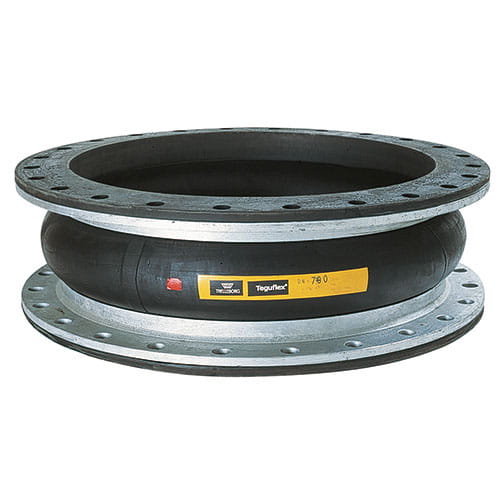

TEGUFLEX® FFL
Full-faced rubber flange bellow
Loose steel flanges with supporting collar giving a smooth movement to the bellow.
High convolution and therefore highly flexible.
Compensate for high movements due to its low inherent resistance.
Building length: 250 / 300 mm.
Dimensions: DN 200 - DN 2800.
Loose steel flanges with supporting collar giving a smooth movement to the bellow.
High convolution and therefore highly flexible.
Compensate for high movements due to its low inherent resistance.
Building length: 250 / 300 mm.
Dimensions: DN 200 - DN 2800.

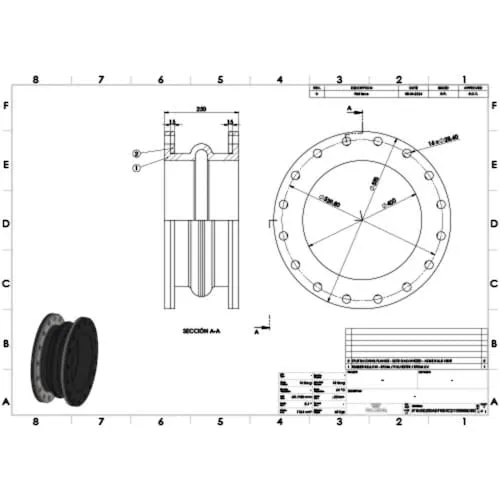

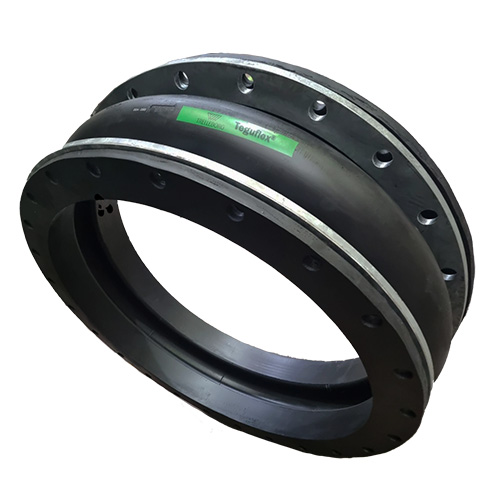

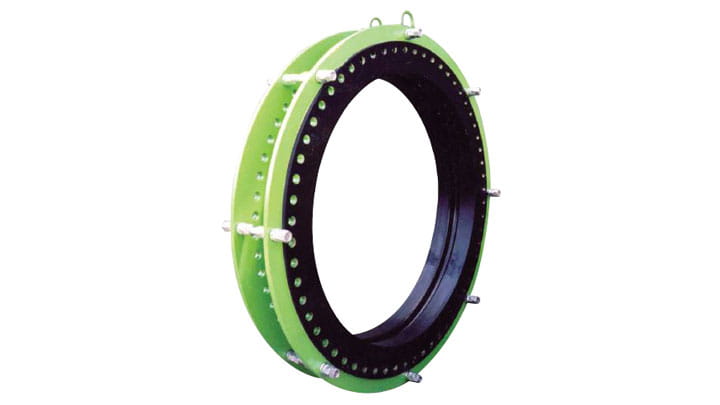

TEGUFLEX® FFI
Full-faced rubber flange bellow
Integrated steel flanges.
Gives small reaction forces, providing high reliability and long service life.
Designed for vacuum 0,8-1,0 bar as standard.
Building length: on request.
Dimensions: on request, up to DN 3200.
Integrated steel flanges.
Gives small reaction forces, providing high reliability and long service life.
Designed for vacuum 0,8-1,0 bar as standard.
Building length: on request.
Dimensions: on request, up to DN 3200.
TEGUFLEX® FFS
We offer you the option of designing and manufacturing all types of special expansion joint as conical, square, multi-convolutions, no convolution, etc...
Accessories

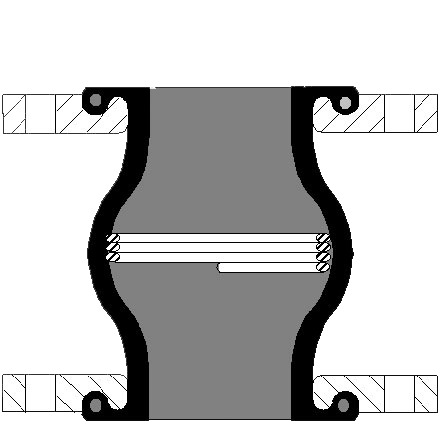

Vacuum Ring

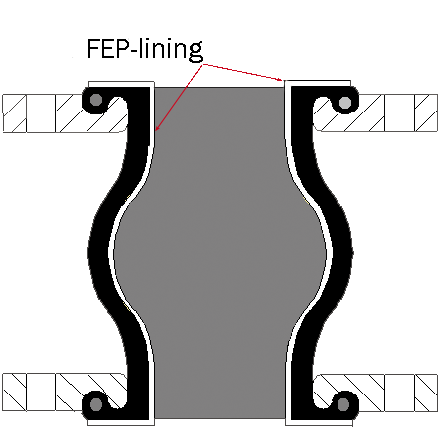

PTFE lining

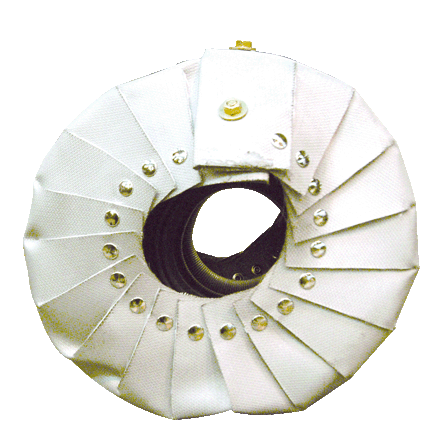

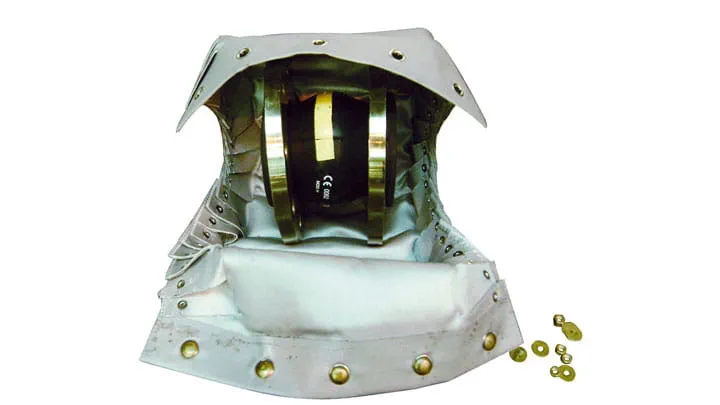

Flame Guard

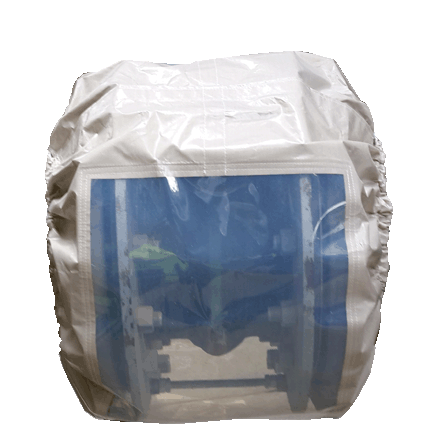

PTFE Safety Shield
Product range
Documentation
Chemical Resistance
In the document below, please find a table where the most common chemicals and the effects on the assortments of our rubber material can be found. The table indicates the effects of specific chemicals on rubber expansion joints. The table comprises recommendations which do not imply an undertaking or a guarantee on the part of Trelleborg. If you feel unsure, or if the chemical in question can not be found in the table, or if the medium is a mixture of two or more chemicals etc., please contact us for further information.
Installation Guidelines
Please find below, guidelines how to install the different types of expansion joints and what to be careful with, as well as, how to calculate for the thrust on the fixing points of the pipes.
Full-Faced Expansion Joints installation
Turnable Flanges Expansion Joints installation
Full-Faced Expansion Joints installation
Turnable Flanges Expansion Joints installation

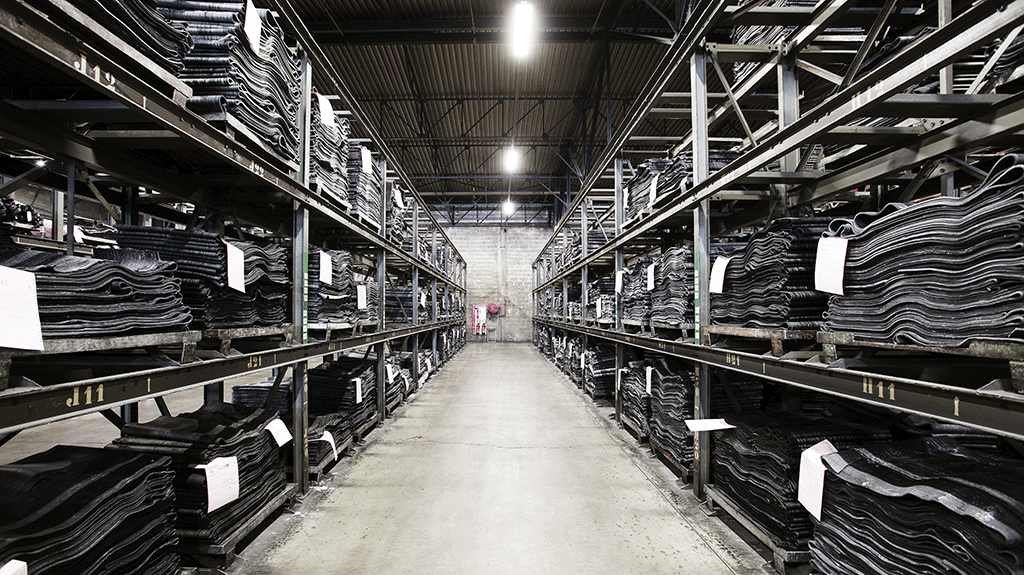

Storage Guideline
In the majority of products based on vulcanised rubber, storage for a certain period inevitably induces changes in the physical properties of the stored products. Consequently, these products may not have their ultimate performance characteristics if stored for a length of time before installation (for example, an excess hardness, softening of the rubber or cracks and other surface deteriorations). These changes may result from one particular factor or from a combination of factors, namely the effect of oxygen, ozone, light, heat and humidity. The adverse effects of these factors may be minimised by a careful choice of the storage conditions.
