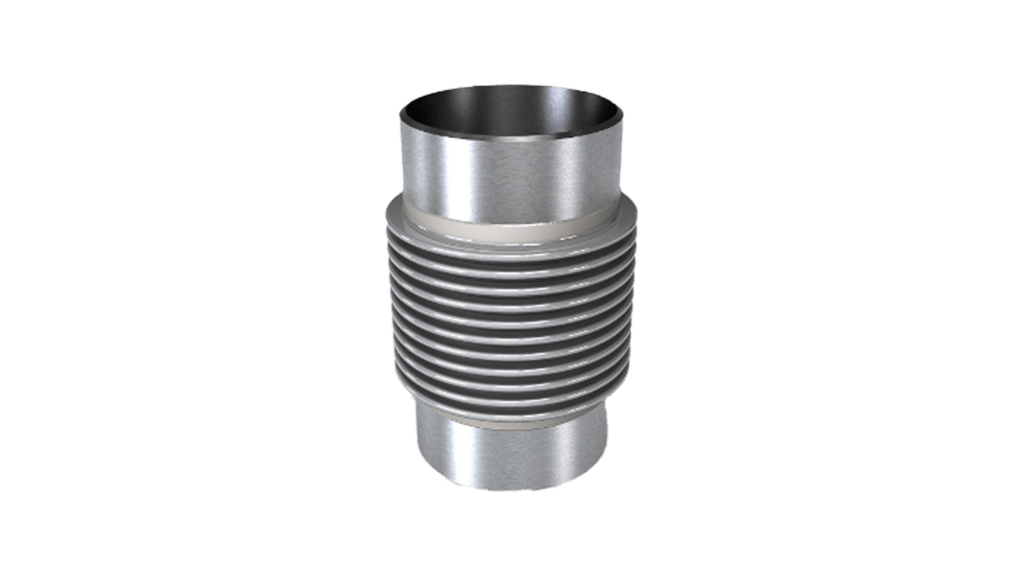

Balance VII: DN40-600
The Balance VII is a stainless steel expansion joint with stainless steel weld ends. It is used to accommodate axial movements and relatively small lateral misalignments in piping systems. Due to its double-ply bellows, this compensator is more flexible in comparison to similar single-ply compensators. The maximum operating temperature of the Balance VII is +550 °C, the maximum working pressure 2,5 bar (120 °C).
APPROVALS
Type approval available on request.
CHARACTERISTICS
- Stainless steel expansion joint AISI 316 TI
- Stainless steel weld ends AISI 316 TI
- Double-ply bellows material
- Standard length
- Max. temperature: 550 °C
- Max. pressure: 2,5 bar (120 °C)
- Stock item
Product data
PART No. | DN | L1 | Bellows (AISI 321) | Welding ends (carbon steel) (mm) | Movements 2 (mm) | Springrate (n/mm) | |||||||
B (mm) | Thickness (mm) | No. of Conv. | No. of Plies | A | C | L2 | Axial +/- | Lateral +/- | Axial +/- | Lateral +/- | |||
300 250 040 | 40 | 245 | 57.7 | 0.3 | 22 | 1 | 48.3 | 2 | 50 | 29 | 18 | 30 | 7 |
300 250 050 | 50 | 245 | 69.7 | 0.3 | 13 | 2 | 60.3 | 2 | 50 | 29 | 15 | 34 | 11 |
300 250 065 | 65 | 245 | 87.5 | 0.3 | 13 | 2 | 76.1 | 2 | 50 | 32 | 15 | 56 | 50 |
300 250 080 | 80 | 245 | 100.3 | 0.3 | 13 | 2 | 88.9 | 2 | 50 | 38 | 15 | 53 | 35 |
300 250 100 | 100 | 245 | 129.8 | 0.3 | 11 | 2 | 114,3 | 2 | 50 | 44 | 10 | 34 | 40 |
300 250 125 | 125 | 245 | 157.8 | 0.3 | 11 | 2 | 139.7 | 2 | 50 | 33 | 10 | 86 | 122 |
300 250 150 | 150 | 245 | 186.6 | 0.3 | 9 | 2 | 168.3 | 2 | 50 | 38 | 10 | 91 | 229 |
300 250 200 | 200 | 245 | 239.7 | 0.3 | 9 | 2 | 219.1 | 2 | 50 | 27 | 10 | 108 | 465 |
300 250 250 | 250 | 245 | 293.6 | 0.3 | 9 | 2 | 273 | 2 | 50 | 38 | 8 | 76 | 509 |
300 250 300 | 300 | 295 | 346.5 | 0.3 | 9 | 2 | 323.9 | 2 | 50 | 45 | 7 | 76 | 773 |
300 250 350 | 350 | 295 | 378.2 | 0.3 | 9 | 2 | 355.6 | 2 | 70 | 44 | 6 | 112 | 1330 |
300 250 400 | 400 | 295 | 435 | 0.3 | 9 | 2 | 406.4 | 2 | 60 | 50 | 3 | 91 | 1144 |
300 250 450 | 450 | 300 | 487.8 | 0.4 | 9 | 2 | 457 | 2 | 60 | 50 | 3 | 101 | 1081 |
300 250 500 | 500 | 340 | 585.6 | 0.4 | 9 | 2 | 508 | 3 | 70 | 73 | 2 | 89 | 1526 |
300 250 600 | 400 | 330 | 642.6 | 0.4 | 9 | 2 | 610 | 3 | 70 | 68 | 2 | 119 | 2027 |
