Product Description

The RAEM is a universal mounting for applications demanding maximum vibration isolation. It is a further development of the RA mount, where EM stands for 'extra soft' and is suitable for both light and heavy machines. Its unique construction and the latest production methods make the RAEM mounting a high performance mount, with a number of advantages such as, corrosion protection to cope with arduous environments and a domed shaped cover to protect against oil contamination.

Product Data

REFERENCE DRAWING NO. PART NO. HARDNESS
(IRHD)		 DIMENSIONS (mm) MAX.
LOAD (N)		 MAX. BOLT
TORQUE (Nm)
ØD A H K Ød L ØG
RAEM 40 17-4023-1 10-00122 40 64 88 35.5 110 9 12 M10 300 15
RAEM 40 17-4024-1 10-00123 60 64 88 35.5 110 9 12 M10 600 15
RAEM 60 17-4025-1 10-00183 40 63 100 35.5 120 11 15 M12 600 25
RAEM 60 17-4026-2 10-00184 60 63 100 35.5 120 11 15 M12 1200 25
RAEM 125 17-2336-1 10-00108 40 84 110 35.5 135 11 15 M10 800 15
RAEM 125 17-2338-1 10-00109 60 84 110 35.5 135 11 15 M10 1800 15
RAEM 125 17-2336-2 10-00168 40 84 110 35.5 135 11 15 M12 800 25
RAEM 125 17-2338-2 10-00169 60 84 110 35.5 135 11 15 M12 1800 25
RAEM 350 17-2341-1 10-00174 40 110 140-148 42 175 14 18 M12 2000 25
RAEM 350 17-2342-1 10-00175 60 110 140-148 42 175 14 18 M12 4000 25
RAEM 350 17-2341-2 10-00114 40 110 140-148 42 175 14 18 M16 2000 50
RAEM 350 17-2342-2 10-00115 60 110 140-148 42 175 14 18 M16 4000 50
RAEM 800 17-2347-2 10-00120 40 155 182 54 216 14 18 M16 4500 50
RAEM 800 17-2348-1 10-00121 60 155 182 54 216 14 18 M16 8000 50
RAEM 1500 17-4020-1 10-00158 40 182 146 85 180 14 - M20 9000 100
RAEM 1500 17-4018-1 10-00159 60 182 146 85 180 14 - M20 17000 100
RAEM 2500 17-4021-2 10-00160 40 224 180 105.5 220 17.5 - M24 17000 200
RAEM 2500 17-4022-1 10-00161 60 224 180 105.5 220 17.5 - M24 34000 200

Technical Drawing

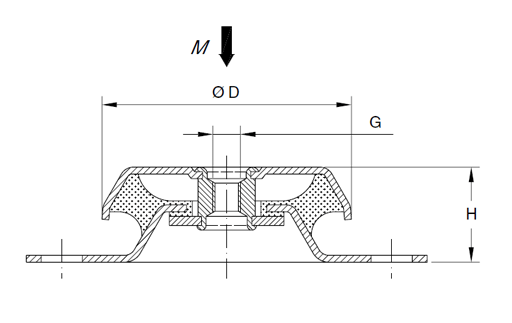

raem-s-m-l-1

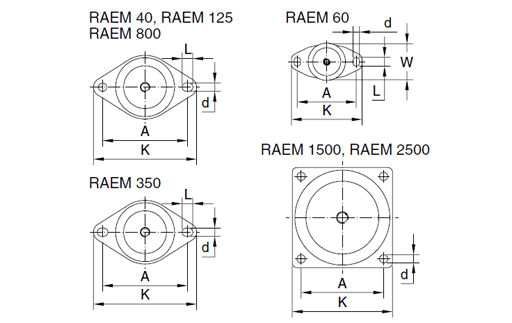

raem-s-m-l-2
