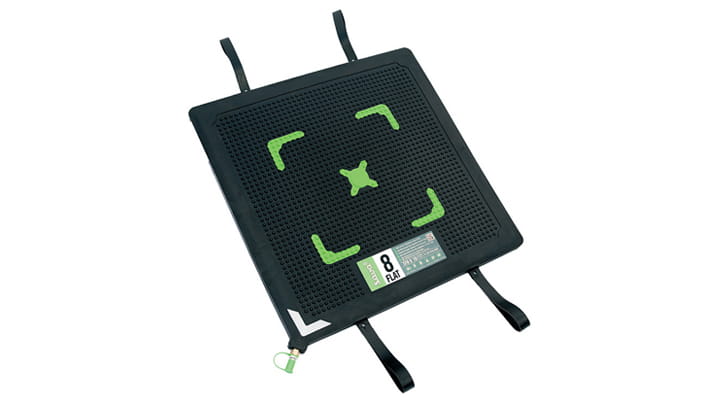

Maximum force, minimal footprint
Key features & benefits
- EN 13731 certified
- Stackable up to 3 bags
- Superb stability
- Flat surface
|
TYPE |
PART |
DIMENSIONS |
WEIGHT |
WORKING |
AIR |
MAX. LIFTING |
MAX. LIFTING |
MAX. LIFTING |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
LENGTH |
WIDTH |
HEIGHT |
||||||||
|
[cm] / [inch] |
[cm] / [inch] |
[cm] / [inch] |
[kg] / [lbs] |
[bar] / [psi] |
[l] / [cu./Ft.] |
[t] / [US Tons] |
[cm] / [inch] |
[t] / [US Tons] |
||
| SFB-K 2/17 | 282314 | 45 / 18" | 45 / 18" | 2.5 / 1" | 5.1 / 11.3 | 8 / 116 | 200 / 7.1 |
13.5 / 14.9 |
17 / 6.7" | 2.3 /2.5 |
| SFB-K 7/17 | 519883 | 55 / 22" | 55 / 22" | 2.5 / 1" | 7.3 / 16 | 8 / 116 | 224 / 7.9 | 21.1 / 23.2 | 17 / 6.7" | 6.7 / 7.4 |
| SFB-K 10/17 | 519884 | 61 / 24" | 61 / 24" | 2.5 / 1" | 9.2 / 20 | 8 / 116 | 350 / 12.4 | 25.2 / 27.7 | 17 / 6.7" | 9.5 / 10.5 |
| SFB-K 20/17 | 519885 | 78 / 31" | 78 / 31" | 2.5 / 1" | 14.5 / 32 | 8 / 116 | 520 / 18.4 | 44.6 / 49.1 | 17 / 6.7" | 20.2 / 22.2 |
| SFB-K 33/17 | 519886 | 91.5 / 36" | 91.5 / 36" | 2.5 / 1" | 20.6 / 45 | 8 / 116 | 810 / 28.6 | 64 / 70.4 | 17 / 6.7" | 33.3 / 36.6 |

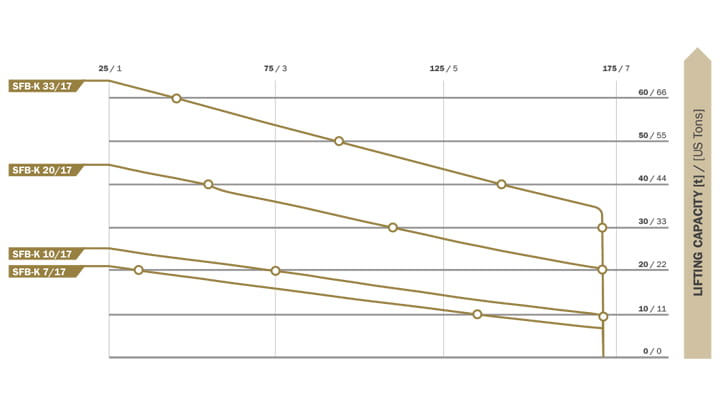

Lifting height [mm]/ [Inch]
Coupling System
Type 25 Safety
Accessories (Suitable for flat bags only)
Triple deadman controller
3 EXP 8
8 bar (116 psi)
4.0 kg (8.8 lbs)
609800
Set of triple flat bag connectors, orange
(4 Pcs Per Set)
0.6 kg (1.3 lbs)
530545
Set of dual flat bag connectors, yellow
(4 Pcs Per Set)
0.4 kg (0.88 lbs)
529480
Inflation Hoses
Inflation hoses - Red
5 m (16’), 0.8 kg (1,8 lbs) - 516191
10 m (33’), 1.4 kg (3 lbs) - 516193
Inflation hoses - Yellow
5 m (16’), 0.8 kg (1,8 lbs) - 517967
10 m (33’), 1.4 kg (3 lbs) - 517968
Inflation hoses - Blue
5 m (16’), 0.8 kg (1,8 lbs) - 516192
10 m (33’), 1.4 kg (3 lbs) - 516194
Inflation hoses - Grey
5 m (16’), 0.8 kg (1,8 lbs) - 529317
10 m (33’), 1.4 kg (3 lbs) - 529318
Controllers
Single fitting controller
8 bar (116 psi)
0.9 kg (2 lbs)
76681
Double fitting controller
8 bar (116 psi)
2.0 kg (4.4 lbs)
76682
Hand-held double deadman controller
8 bar (116 psi)
1.6 kg (3.5 lbs)
519820
8 bar HND single controller
8 bar (116 psi)
1.2 kg (2.6 lbs)
628284
8 bar HND double controller
8 bar (116 psi)
2.3 kg (5.1 lbs)
628287
8 bar HND triple controller
8 bar (116 psi)
3.5 kg (7.7 lbs)
628292
Accessories
Rubber hose with shut-off valve
8 bar (116 psi)
2 m (6.6′) 10 m (33′)
0.9 kg (2 lbs) 3.3 kg (7.3 lbs)
615212 615273
Rubber hose with shut-off + safety valve
8 bar (116 psi)
2 m (6.6′) 10 m (33′)
2.2 kg (4.8 lbs) 3.5 kg (7.7 lbs)
615274 615215
Foot pump
8 bar (116 psi)
3 kg (6.6 lbs)
615206
Shut-off +safety valve
8 bar (116 psi)
0.4 kg (0.88 lbs)
519051
Inflation distributor
With 2×2 m rubber hoses
2 m (6.6′)
1.5 kg (3.3 lbs)
615224
Pressure reducer
8 bar (116 psi) 200/300 bar (2900/4350 psi)
2.2 kg (4.9 lbs)
EN - 615155
CGA – 596586
Single stage regulator Cga
With 6′ yellow supply hose attached
8 - 10 bar (116 - 145 psi)
0.4 kg (0.88 lbs)
Reg 116-145 psi - SH6
Other Accessories
Compressed air cylinder
300 bar (4350 psi),
6L (366 cu.in.)
7.5 kg (16.5 lbs)
627936
Carry-on valise for compressed air cylinder
0.1 kg (2.2 lbs)
519811
Universal connector kit
0.2 kg (0.44 lbs)
519809
Truck tyre valve connection
0.1 kg (2.2 lbs)
519806
Truck tyre valve
0.05 kg (0.11 lbs)
519805
Compressed air mains
0.05 kg (0.11 lbs)
519808
Truck tyre inflator adapter
0.05 kg (0.11 lbs)
519807
Dual connector for compressed air cylinders
1.0 kg (2.2 lbs)
529383
Triple connector for compressed air cylinders
1.2 kg (2.6 lbs)
529384
Truck compressed air connection
0.4 kg (0.88 lbs)
529005
Safety carrier rack-two cylinder 6l (366 Cu.In.) modul-trolley system
3.0 kg (6.6 lbs)
542868
Adapter for construction site compressor
0.2 kg (0.44 lbs)
529704
Safety carrier rack-two cylinder 6l (366 Cu.In.) modul-trolley system
3.0 kg (6.6 lbs)
542868
Safety carrier rack-Four cylinder 6l (366 Cu.In.) modul-trolley system
5.0 kg (11 lbs)
542872
Loading plates
Load Plate # 350 - 556308
3.5 kg (7.7 lbs)
Load Plate # 420 - 556309
5.0 kg (11 lbs)
Load Plate # 520 - 556310
7.5 kg (16.5 lbs)
Load Plate # 670 - 556311
13.0 kg (29 lbs)
High pressure liftings bags - Full instructions for use
