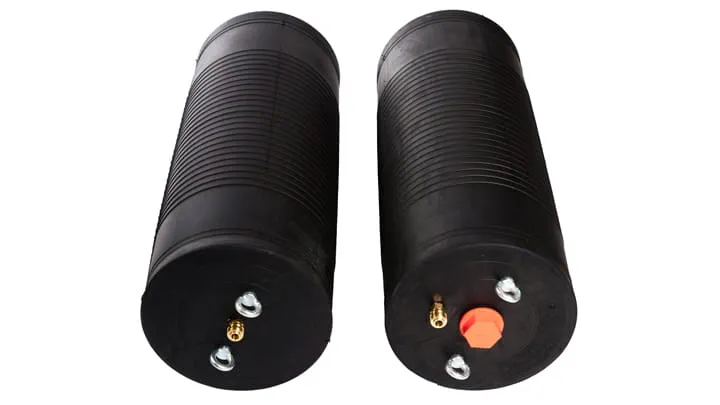

Inflatable pipe plugs reinforced with Aramid cord are noted for a wide application range. They can be used in different situations, where a pipe needs to be blocked or a bypass made.
Key features & benefits
- Flexible design
- Aramid cord reinforced
- Superior grip surface
- A wide usage range
Back Pressure Measured in a Dry Iron Pipe (bar/psi)
| SIZE | PIPE DIAMETER [mm] / [inch] | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
40 / 1.5 |
70 / 2.8 |
100 /
4 |
150 /
6 |
200 / 8 |
250 / 10 |
300 / 12 |
350 / 14 |
400 / 16 |
500 / 20 |
600 / 24 |
800 / 32 |
1000 / 40 |
1200 / 48 |
1300 / 51 |
1400 / 55 |
1500 / 60 |
1600 / 63 |
1700 / 67 |
1800 / 72 |
|
| 40-70 | 2.0/29 | 1.2/17 | ||||||||||||||||||
| 70-150 | 2.2/32 | 1.7/24.5 | 1.3/19 | |||||||||||||||||
| 100-200 | 2.2/32 | 1.7/24.5 | 1.3/19 | |||||||||||||||||
| 150-200 | 2.0/29 | 1.5/22 | ||||||||||||||||||
| 150-300 | 2.2/32 | 2.0/29 | 1.4/20 | 1.2 /17 | ||||||||||||||||
| 200-400 | 2.2/32 | 2.0/29 | 1.7/24.5 | 1.5/22 | 1.2/17 | |||||||||||||||
| 300-525 | 2.0/29 | 1.7/24.5 | 1.5/22 | 1.2/17 | ||||||||||||||||
| 350-600 | 2.1/30.5 | 1.9/27.5 | 1.6/23 | 1.3/19 | ||||||||||||||||
| 375-750 | 2.0/29 | 1.7/24.5 | 1.4/20 | |||||||||||||||||
| 500-800 | 1.8/26 | 1.4/20 | 1.1/16 | |||||||||||||||||
| 500-1000 | 1.0/15 | 0.8/11.5 | 0.6/8.7 | 0.5/7.2 | ||||||||||||||||
| 600-1200 | 1.0/15 | 0.7/10 | 0.6/8.7 | 0.5/7.2 | ||||||||||||||||
| 750-1500 | 1.0/15 | 0.9/13 | 0.7/10 | 0.6/8.7 | 0.5/7.2 | 0.4/5.8 | ||||||||||||||
| 800-1800 | 1.0/15 | 1.0/15 | 0.8/11.5 | 0.7/10 | 0.6/8.7 | 0.5/7.2 | 0.5/7.2 | 0.4/5.8 | 0.4/5.8 | |||||||||||
Technical Data - Plugy (Blocking Plugs)
| TYPE |
PART NUMBER |
SIZE USAGE RANGE | WEIGHT |
WORKING PRESSURE |
DEFLATED PLUG DIMENSIONS |
EYE BOLT M THREAD |
INFLATION VALVE |
||
|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIAMETER |
MAX. DIAMETER |
DIAMETER | LENGTH | ||||||
| [mm] / [inch] | [mm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [mm] / [inch] | [mm] / [inch] | Thread size | |||
| PLUGY 40-70 | 519423 | 40 / 1.5" | 70 / 2.8" | 0.3 / 0.7 | 2.5 / 36 | 35 / 1.4" | 195 / 7.7" | / | R 1/4” |
| PLUGY 70-150 | 519424 | 70 / 2.8" | 150 / 6" | 0.6 / 1.3 | 2.5 / 36 | 68 / 2.7" | 335 / 13" | / | R 1/4” |
| PLUGY 100-200 | 60417 | 100 / 4" | 200 / 8" | 1.1 / 2.4 | 2.5 / 36 | 92 / 3.6" | 535 / 21" | 6 | R 1/4” |
| PLUGY 150-200 | 526850 | 150 / 6" | 200 / 8" | 1.8 / 4 | 2.5 / 36 | 142 / 5.6" | 385 / 15" | 8 | R 1/4” |
| PLUGY 150-300 | 60418 | 150 / 6" | 300 / 12" | 1.9 / 4 | 2.5 / 36 | 142 / 5.6" | 575 / 23" | 8 | R 1/4” |
| PLUGY 200-400 | 60419 | 200 / 8" | 400 / 16" | 3.0 / 7 | 2.5 / 36 | 192 / 7.6" | 635 / 25" | 8 | R 1/4” |
| PLUGY 300-525 | 60599 | 300 / 12" | 525 21" | 6.0 / 14 | 2.5 / 36 | 272 / 10.7" | 675 / 27" | 8 | R 1/4” |
| PLUGY 350-600 | 60422 | 350 / 14" | 600 / 24" | 8.4 / 19 | 2.5 / 36 | 322 / 12.7" | 865 / 34" | 10 | R 1/4” |
| PLUGY 375-750 | 60606 | 375 / 16" | 750 / 30" | 10.9 / 24 | 2.5 / 36 | 342 / 13.5" | 1085 / 43" | 10 | R 1/4” |
| PLUGY 500-800 | 60453 | 500 / 20" | 800 / 32" | 17.3 / 39 | 2.5 / 36 | 472 / 18.6" | 1185 / 47" | 10 | R 1/4” |
| PLUGY 500-1000 | 530301 | 500 / 20" | 1000 / 40" | 17.3 / 39 | 1.5 / 22 | 472 / 18.6" | 1185 / 47" | 10 | R 1/4” |
| PLUGY 600-1200 | 530302 | 600 / 24" | 1200 / 48" | 39.0 / 86 | 1.5 / 22 | 574 / 22.6" | 1500 / 60" | 10 | 2 × R 3/8” |
| PLUGY 750-1500 | 78959 | 750 / 30" | 1500 / 60" | 65.0 / 143 | 1.0 / 15 | 600 / 23.6" | 2300 / 91" | 10 | 2 × R 1/4” |
| PLUGY 800-1800 | 535881 | 800 / 32" | 1800 / 72" | 105.0 / 231 | 1.0 / 15 | 600 / 23.6" | 2960 / 117" | 10 | 2 × R 1/4“ |
Technical Data - Plugsy (Bypass Plugs)
| TYPE |
PART NUMBER |
SIZE USAGE RANGE | WEIGHT |
WORKING PRESSURE |
DEFLATED PLUG DIMENSIONS |
EYE BOLT M THREAD |
INFLATION VALVE |
BYPASS DIAMETER |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIAMETER |
MAX. DIAMETER |
DIAMETER | LENGTH | |||||||
| [mm] / [inch] | [mm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [mm] / [inch] | [mm] / [inch] | Thread size | (female) | |||
| PLUGSY 70-150 | 526849 | 70 / 3" | 150 / 6" | 1.7 / 3.7 | 2.5 / 36 | 68 / 2.7" | 350 / 14" | / | R 1/8” | 1/2” |
| PLUGSY 100-200 | 60429 | 100 / 4" | 200 / 8" | 2.6 / 5.8 | 2.5 / 36 | 92 / 3.6" | 550 / 22" | 6 | R 1/4” | 1” |
| PLUGSY 150-200 | 526851 | 150 / 6" | 200 / 8" | 3.2 / 7.1 | 2.5 / 36 | 142 / 5.6" | 420 / 17" | 8 | R 1/4” | 1” |
| PLUGSY 150-300 | 60432 | 150 / 6" | 300 / 12" | 4.4 / 10 | 2.5 / 36 | 142 / 5.6" | 590 / 23" | 8 | R 1/4” | 1” |
| PLUGSY 200-400 | 60434 | 200 / 8" | 400 / 16" | 6.3 / 14 | 2.5 / 36 | 192 / 7.6" | 635 / 25" | 8 | R 1/4” | 2” |
| PLUGSY 300-525 | 60630 | 300 / 12" | 525 / 21" | 11.9 / 26 | 2.5 / 36 | 272 / 10.7" | 675 / 27" | 8 | R 1/4” | 2” |
| PLUGSY 350-600 | 60440 | 350 / 14" | 600 / 24" | 16.6 / 37 | 2.5 / 36 | 322 / 12.7" | 865 / 34" | 10 | R 1/4” | 2” |
| PLUGSY 375-750 | 60632 | 375 / 15" | 750 / 30" | 19.7 / 43 | 2.5 / 36 | 342 / 13.5" | 1085 / 43" | 10 | R 1/4” | 2” |
| PLUGSY 500-800 | 60454 | 500 / 20" | 800 / 32" | 31.3 / 69 | 2.5 / 36 | 472 / 18.6" | 1185 / 47" | 10 | R 1/4” | 2” |
| PLUGSY 500-1000 | 530303 | 500 / 20" | 1000 / 40" | 31.3 / 69 | 1.5 / 22 | 472 / 18.6" | 1185 / 47" | 10 | R 1/4” | 2” |
| PLUGSY 600-1200 | 530304 | 600 / 24" | 1200 / 48" | 46.0 / 101 | 1.5 / 22 | 574 / 22.6" | 1500 / 60" | 10 | 2 × R 3/8” | 4” |
| PLUGSY 750-1500 | 78960 | 750 / 30" | 1500 / 60" | 75.0 / 165 | 1.0 / 15 | 600 / 23.6" | 2300 / 91" | 10 | 2 × R 1/4” | 4” |
| PLUGSY 800-1800 | 535882 | 800 / 32" | 1800 / 72" | 117.0 / 258 | 1.0 / 15 | 600 / 23.6" | 2960 / 117" | 10 | 2 × R 1/4“ | 4“ |
Coupling System
Type 26
1 Bar (22 Psi); 2.5 Bar (36 Psi)
Type 14
1.5 Bar (22 Psi)
Accessories
Poly lift hose
10 m (33')
1 bar (14.5 psi)
2.5 bar (36 psi)
2.0 Kg (4.4 Ibs)
615288
Poly lift hose
10m (33')
1.5 bar (22 psi)
2.0 kg (4.4 lbs)
615291

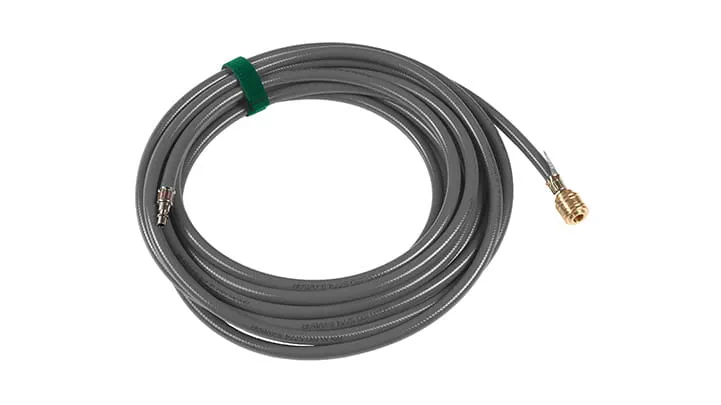

Inflation hose
10 m (33′) 10 m (33′)
1 bar (14.5 psi) 1.5 bar (22 psi)
2.5 bar (36 psi) 2.0 kg (4.4 lbs)
2.0 kg (4.4 lbs)
614341 615285
Single fitting controller
0.9 kg (2 lbs)
2.5 bar (36 psi) - 60310
1.5 bar (22 psi) - 529663
1.0 bar (14.5 psi) - 74653
