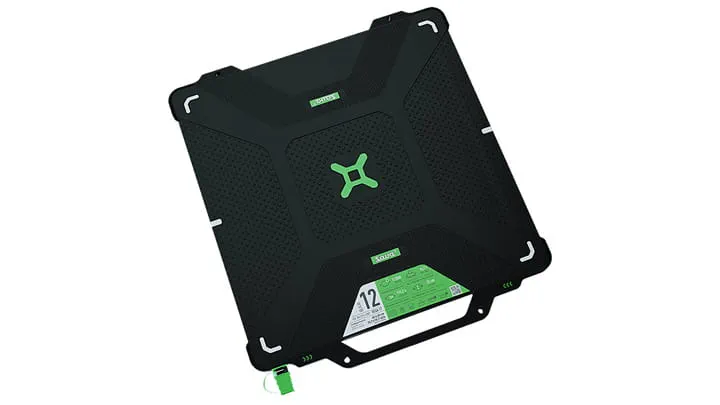

VEGA conventional lifting bag|Seals & Profiles

VEGA lifting bag is a standard 12 bar pressure class lifting bag with strong lifting capacity, but with improved safety and user experience features.

With boosting the already proven properties of our existing assortment we introduce a new concept in the field of rescue and recovery. Our new design brings many new features on both, the bags and accessories.

See all the benefits

Technical Data

TYPE	PART NUMBER	DIMENSIONS			WEIGHT	WORKING PRESSURE	AIR REQUIREMENT	MAX. LIFTING CAPACITY	MAX. LIFTING HEIGHT
		LENGTH	WIDTH	HEIGHT	WEIGHT	WORKING PRESSURE	AIR REQUIREMENT	MAX. LIFTING CAPACITY	MAX. LIFTING HEIGHT
		[cm] / [inch]	[cm] / [inch]	[cm] / [inch]	[kg] / [lbs]	[bar] / [psi]	[l] / [cu./Ft.]	[t] / [US Tons]	[cm] / [inch]
VEGA 2	608046	15 / 6″	15 / 6″	2.2 / 0.9″	0.5 / 1.2	12 / 174	4.5 / 0.16	1.4 / 1.5	8 / 3″
VEGA 5	608047	23.5 / 9.2″	23.5 / 9.2″	2.2 / 0.9″	1.2 / 3	12 / 174	22.4 / 0.79	4.9 / 5.4	13 / 4.9″
VEGA 10	608049	32 / 12.6″	32 / 12.6″	2.5 / 1″	2.5 / 5.5	12 / 174	63.4 / 2.24	10.1 / 11.1	17 / 6.9″
VEGA 17	608050	40 / 15.7″	40 / 15.7″	2.5 / 1″	4 / 8.8	12 / 174	131.7 / 4.65	16.7 / 18.4	22 / 8.5″
VEGA 25	608051	48 / 18.9″	48 / 18.9″	2.5 / 1″	5.7 / 12.6	12 / 174	236 / 8.33	25.1 / 27.6	26 / 10.4″
VEGA 33	608052	55 / 22″	55 / 22″	2.5 / 1″	7.5 / 16.5	12 / 174	365 / 12.89	33.2 / 36.5	30 / 11.9″
VEGA 41	608053	61 / 24″	61 / 24″	2.5 / 1″	9.3 / 20.5	12 / 174	681 / 24.05	41.2 / 45.3	34 / 13.2″
VEGA 50	608054	67 / 26.4″	67 / 26.4″	2.5 / 1″	11.2 / 24.7	12 / 174	897 / 31.68	50.2 / 55.2	37 / 14.4″
VEGA 65	608055	76 / 30″	76 / 30″	2.7 / 1.1″	15.5 / 34.2	12 / 174	1010 / 35.67	65.2 / 71.7	41 / 16.3″
VEGA 80	608056	84 / 33″	84 / 33″	2.7 / 1.1″	19 / 41.9	12 / 174	1381 / 48.77	80.2 / 88.2	46 / 17.9″
VEGA 100	608057	93 / 36.5″	93 / 36.5″	2.7 / 1.1″	23.3 / 51.4	12 / 174	1895 / 66.92	100.2 / 110.2	51 / 20.1″
