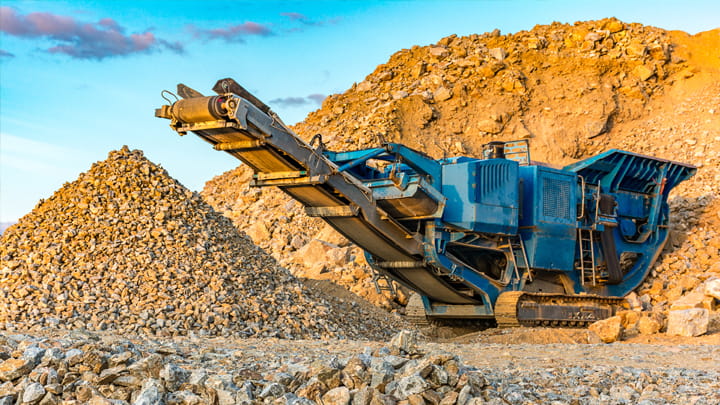

Mobile crushing machine processing stone in a quarry with gravel piles and rocky terrain

Engineered for extreme applications

  • Crushed stone and aggregates
  • Milled asphalt
  • Crushed glass
  • Ores and mineral materials
  • Sharp, heavy aggregates and heterogeneous waste fractions

Why choose CarryRock

Key advantages

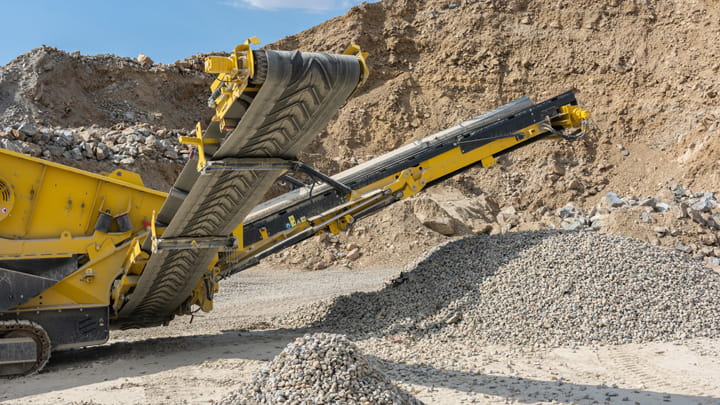

CarryRock on conveyor belt transporting abrasive stone material in a quarry

Specially formulated top cover

Compared to standard chevron conveyor belts, CarryRock delivers significantly improved mechanical and wear properties.

Manufactured from an advanced rubber compound with exceptional resistance to:

  • Abrasion
  • Cutting
  • Tearing
  • Impact

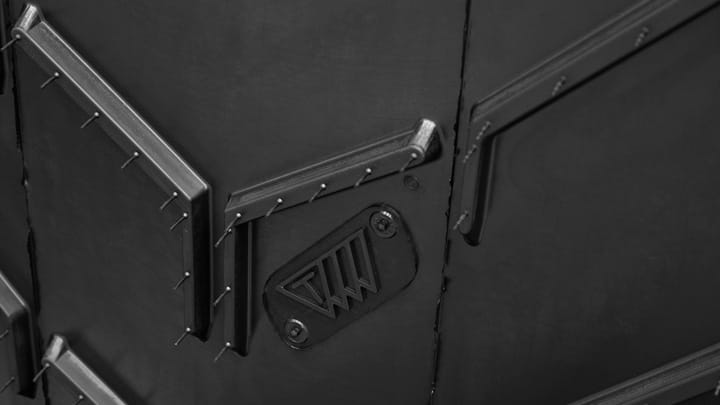

Close‑up of the Carry Rock specialized Chevron conveyor belt, designed for handling highly abrasive materials in heavy‑duty industrial applications

High elasticity for superior flexibility

Reduced mechanical stress and extended belt lifespan.

The enhanced elastic properties of the rubber allow:

  • Excellent belt flexibility
  • Reliable operation over small-diameter rollers

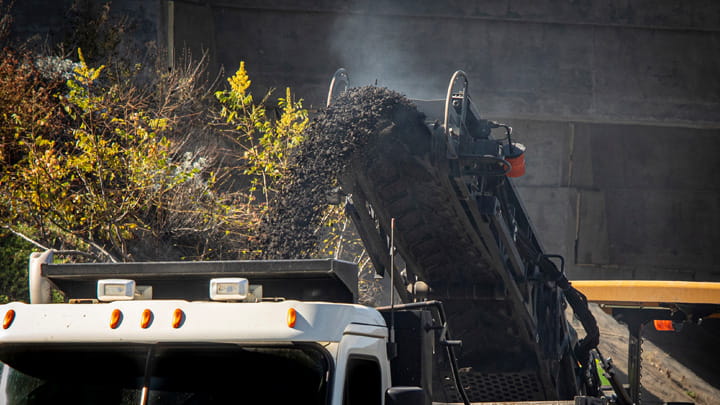

Carry Rock specialized Chevron conveyor belt unloading highly abrasive materials into a truck in a heavy‑duty industrial environment

Improved cleats bonding technology

Increased reliability in demanding conveying conditions.

Advanced cleat impressing ensures:

  • Strong adhesion between cleats and belt body
  • No cleats detachment during operation

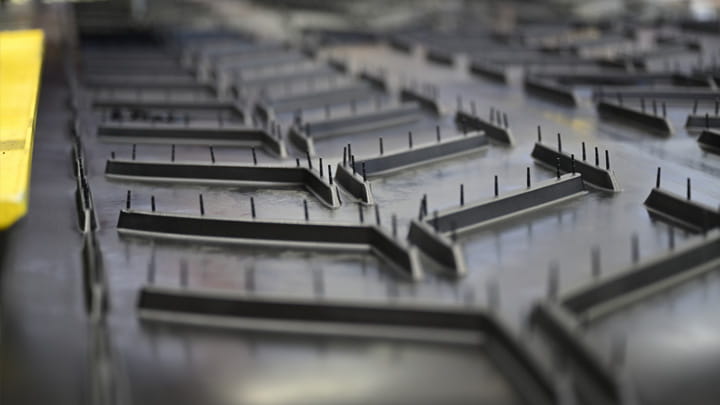

Carry Rock conveyor belt close‑up with reinforced chevron profile for abrasive materials

Enhanced rubber compound formulation

Reduced material loss and extended overall service life of the belt.

Provides:

  • Higher cut resistance
  • Prevention of surface cracking and damage
  • Effective protection of the belt carcass

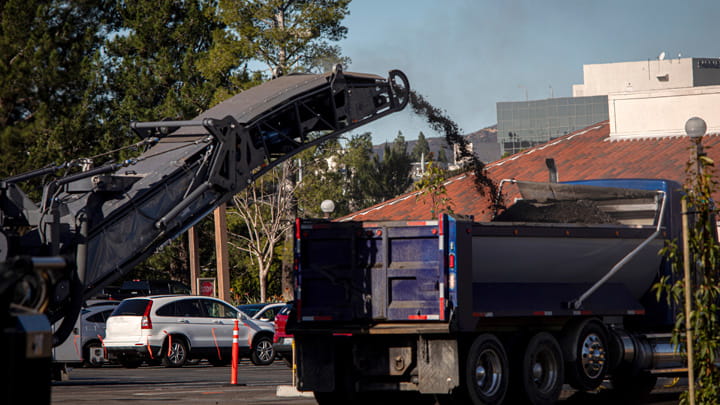

Carry Rock Chevron conveyor belt transferring abrasive material from a conveyor system into a truck in a heavy‑duty industrial application

Optimized bottom cover

Specifically designed for sharp and abrasive materials of various sizes, CarryRock effectively addresses the primary causes of conveyor belt failure in demanding industries.

Ensures:

  • Reliable traction on drive pulleys
  • Stable and smooth system operation
  • Improved efficiency
Performance you can measure
Compared to standard chevron conveyor belts, CarryRock delivers significantly improved mechanical and wear properties.
 Property  Standard Chevron Belt  CarryRock Belt
 Average tensile strength  11 MPa  20 MPa
 Average abrasion  160 mm³  35 mm³ ±20
 Average elongation at break  380%  575%
ill_manufacturing_wg_rgb
Les downtime. Less maintenance. Higher productivity
ill_manufacturing_wg_rgb
30%
Longer service life
ill_manufacturing_wg_rgb
65%
Lower wear in abrasive applications
