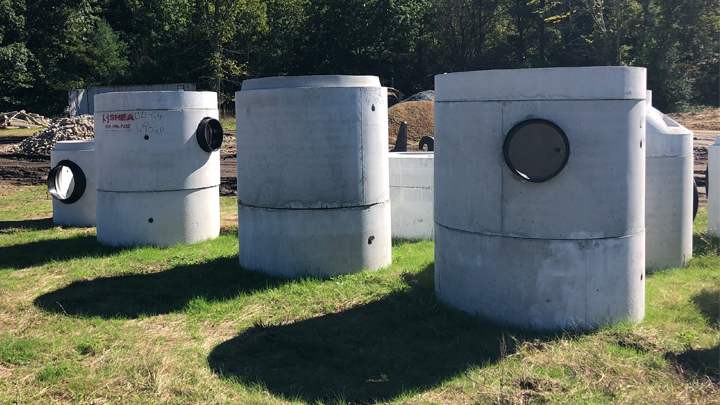

Key features & benefits
- Establishes a watertight connection between manhole wall and pipe
- Installs in minutes saving time
- Perfect for re-establishing watertight connections at manhole after pipe bursting

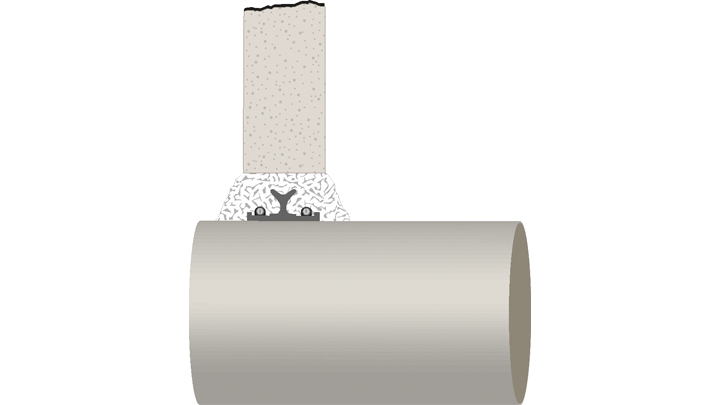

Fit the Waterstop Grouting Ring around the outside diameter of the pipe. Position it so that the ring will be in the middle of the structure’s wall thickness.
Note: When using corrugated pipe an adapter must be used. Please refer to the Corrugated Pipe Adapter data sheet.

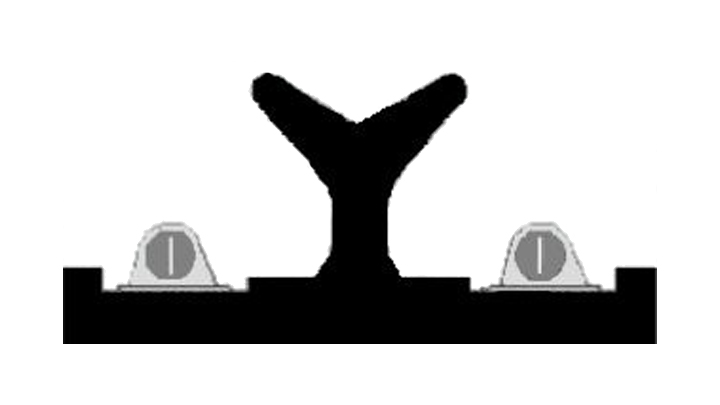

Install the stainless-steel pipe clamps around the groove of the grouting ring and tighten to 60 inch pounds using a T-Handle Torque Wrench (p/n 80090).
The pipe is now ready to be mortared or cast into the concrete structure. A high-strength, non-shrinking grout is recommended for mortaring (or brick and mortaring) pipe connections in place.
| Pipe Size | Type of Pipe | Pipe O.D | P/N | Clamp P/N |
Clamp Qty |
|---|---|---|---|---|---|
|
10" |
PVC | 10.50 | WS-10105 | I-190 | 2 |
| Ductile Iron | 11.50 |
WS-11115 |
I-218 |
2 |
|
| Quality Culvert | 11.50 | WS-11115 |
I-218 |
2 | |
| ADS/Hancor | 11.63 |
WS-11512 |
I-218 |
2 |
|
12" |
PVC |
12.50 | WS-12125 |
I-218 |
2 |
| Ductile Iron |
12.20 | WS-13135 |
I-242 |
2 | |
| JM Eagle |
14.25 |
WS-14145 |
I-258 |
2 |
|
| Baughman |
14.50 | WS-14515 |
I-258 |
2 | |
| Quality Culvert |
14.56 | WS-14515 |
I-258 |
2 | |
| ADS/Hancor |
14.63 |
WS-14515 |
I-258 |
2 |
|
| 15" | PVC |
15.30 | WS-15516 |
I-282 | 2 |
| JM Eagle |
17.50 |
WS-17518 |
I-306 |
2 |
|
| Truss | 17.00 |
WS-16517 |
I-306 |
2 | |
| Quality Culvert |
17.70 | WS-17518 |
I-306 |
2 | |
| ADS/Hancor |
17.75 | WS-17518 |
I-306 |
2 |
|
| Baughman | 18.25 | WS-18185 |
I-306 |
2 |
|
| 16 | Ductile Iron/Cast Iron |
17.40 | WS-17518 |
I-306 | 2 |
| 18" |
PVC | 18.70 | WS-18519 |
I-318 |
2 |
| Ductile Iron/Cast Iron |
19.50 | WS-19195 |
I-348 |
2 |
|
| JM Eagle |
20.875 | WS-21215 |
I-180 |
4 |
|
| Quality Culvert |
21.15 | WS-21215 |
I-180 |
4 |
|
| Baughman |
21.21 | WS-21215 |
I-180 |
4 | |
| ADS/Hancor |
21.44 | WS-21522 |
I-180 |
4 | |
| RCP-B Wall |
23.00 | WS-22523 |
I-190 | 4 | |
| 20" | Ductile Iron/Cast Iron |
21.60 | WS-21522 |
I-180 |
4 |
| 21" | PVC |
22.05 | WS-21522 |
I-258 |
4 |
| RCP-B Wall |
26.50 | WS-2627 |
I-218 |
4 | |
| 24" | PVC |
24.80 | WS-24525 |
I-218 |
4 |
| Ductile Iron/Cast Iron |
25.80 | WS-2526 |
I-218 |
4 | |
| JM Eagle |
27.50 | WS-2728 |
I-242 |
4 | |
| Quality Culvert |
27.76 | WS-2728 |
I-242 |
4 | |
| ADS/Hancor |
28.00 | WS-2728 |
I-242 |
4 |
| Pipe Size | Type of Pipe | Pipe O.D | P/N | Clamp P/N |
Clamp Qty |
|---|---|---|---|---|---|
| 24" | Baughman | 28.50 | WS-2829 | I-242 |
4 |
| RCP-B Wall | 30.00 | WS-2930 |
I-258 |
4 | |
| 31.50 | WS-3132 |
I-282 |
4 | ||
|
27" |
PVC | 27.95 | WS-2728 | I-242 |
4 |
| RCP-B Wall |
33.50 |
WS-3334 |
I-242 |
4 |
|
| 30" | Ductile Iron/Cast Iron |
32.00 | WS-3132 |
I-282 |
4 |
| JM Eagle |
34.63 | WS-3435 |
I-282 |
4 | |
| Quality Culvert |
35.40 |
WS-3536 |
I-306 |
4 |
|
| ADS |
35.50 | WS-3536 |
I-306 |
4 | |
| Hancor |
35.50 | WS-3536 |
I-306 |
4 | |
| Baughman |
35.65 | WS-3536 |
I-306 |
4 | |
| RCP-B Wall |
37.00 |
WS-3637 |
I-306 |
4 |
|
| RCP-C Wall |
38.50 | WS-3839 |
I-318 |
4 | |
| 36" | Ductile Iron/Cast Iron |
38.30 | WS-3637 |
I-348 |
2 |
| Baughman |
41.50 | WS-4142 |
I-348 |
4 | |
| JM Eagle |
41.50 |
WS-4142 |
I-348 |
4 |
|
| ADS/Hancor |
41.88 |
WS-4142 |
I-348 |
4 | |
| Quality Culvert |
41.90 | WS-4142 |
I-348 |
4 | |
| RCP-B Wall |
44.00 | WS-4344 |
I-242 |
6 |
|
| RCP-C Wall |
45.50 | WS-4546 |
I-258 |
6 |
|
| 42" |
JM Eagle |
47.38 | WS-4748 |
I-256 |
6 |
| ADS | 48.19 | WS-4849 |
I-282 |
6 |
|
| Quality Culvert |
48.20 | WS-4849 |
I-282 |
6 |
|
| Baughman |
48.20 | WS-4849 |
I-282 |
6 |
|
| Hancor |
48.44 | WS-4849 |
I-282 |
6 | |
| ARCP-C Wall |
52.50 | WS-5253 |
I-306 |
6 | |
| 48" | Ductile Iron/Cast Iron |
50.80 | WS-5051 |
I-282 |
6 |
| JM Eagle |
53.81 | WS-5354 |
I-242 |
6 | |
| Hancor |
54.19 | WS-5455 |
I-306 |
6 | |
| Baughman |
54.30 | WS-5455 |
I-306 |
6 | |
| Quality Culvert |
54.40 | WS-5455 |
I-306 |
6 | |
| RCP-B Wall |
58.00 | WS-2930 |
I-318 |
6 |

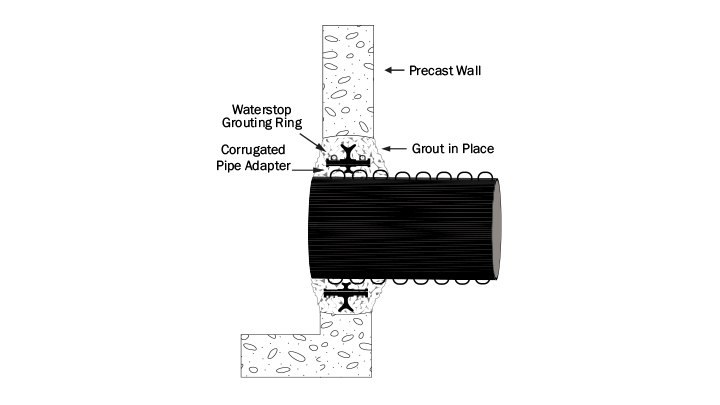

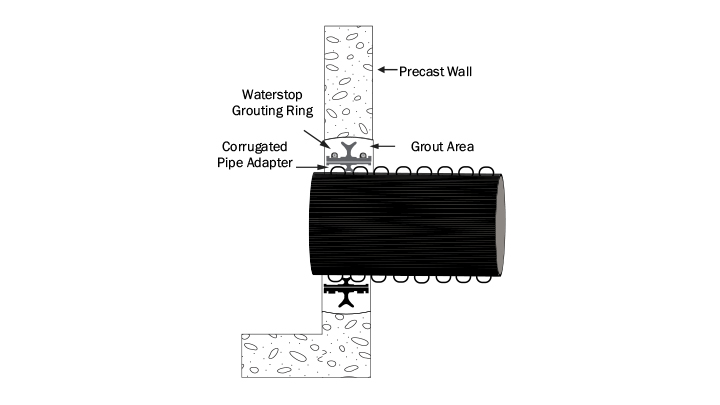

Waterstop Installed on Corrugated Pipe

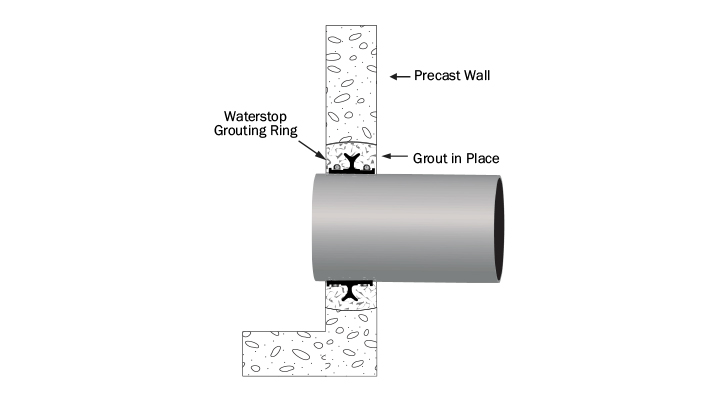

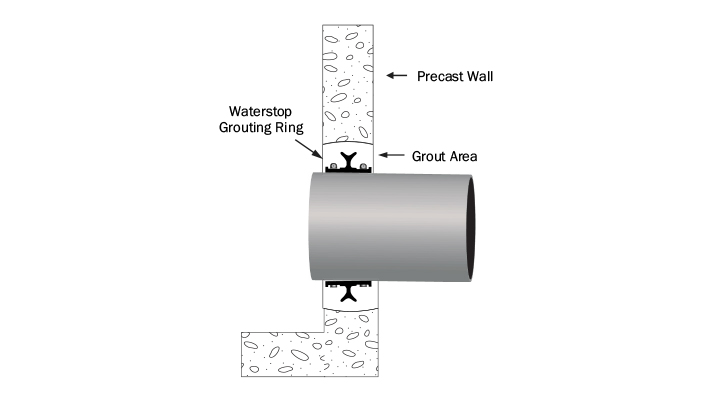

Waterstop Installed on Smooth-Wall Pipe
