Catch Bags are used to “catch″ the vehicle when uprighting it for a soft landing and to prevent secondary tip-over. They are built to prevent dangerous and uncontrolled descent of any vehicle or object. Perfect in combination with our low-pressure lifting bags.
Key features & benefits
- Good stability in all conditions
- Special air-release openings
- Extremely durable
- Quick assembly and disassembly
Technical Data
| TYPE | PART NUMBER | DIMENSIONS | WEIGHT | WORKING PRESSURE | NOMINAL CONTENT | AIR REQUIREMENT | MAX. HEIGHT | INFLATION TIME | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOTTOM | TOP | HEIGHT | ||||||||||
| LENGTH | WIDTH | LENGTH | WIDTH | |||||||||
| [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [l] / [cu./Ft.] | [l] / [cu./Ft.] | [cm] / [inch] | [sec] | ||
| SCB-1 | 574577 | 140 / 55" | 140 / 55" | 100 / 39" | 100 / 39" | 10 / 4" | 22 / 50 | < 0.2 / < 3 | 1700 / 60 | 2000 / 71 | 160 / 63" | 60-90 |
| SCB-2 | 596823 | 110 / 43" | 110 / 43" |
80 / 31" |
80 / 31" | 10 / 4" | 17 / 37 |
< 0.2 / < 3 | 1100 / 39 |
1320 / 46 |
100 / 39" |
50-70 |
Coupling system
Type Camlock
Positioning Accessories

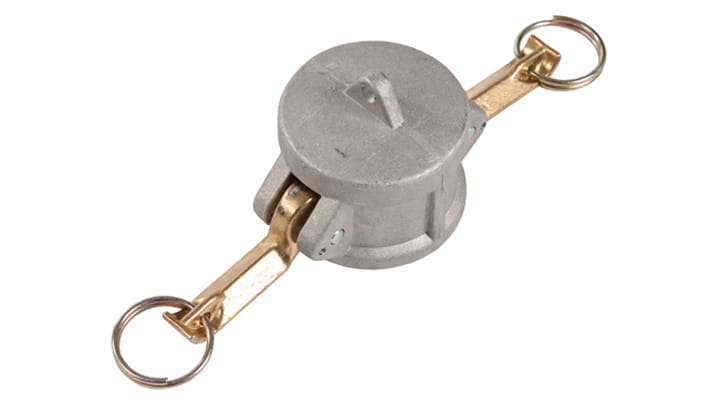

Blind coupling 11/2"
0.3 kg (0.7 Ibs)
574581

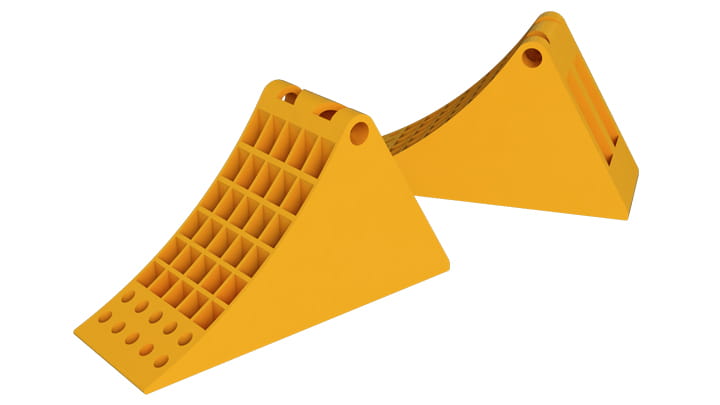

Wedge
1.5 kg (3.3 Ibs)
581229

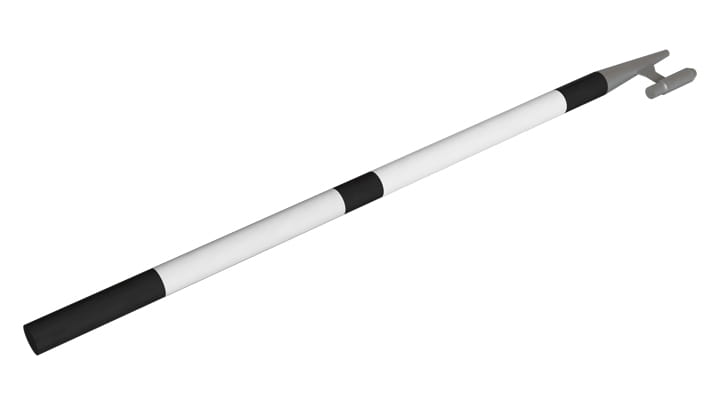

Insertion pole
2.0 Kg (4.4 Ibs)
581228

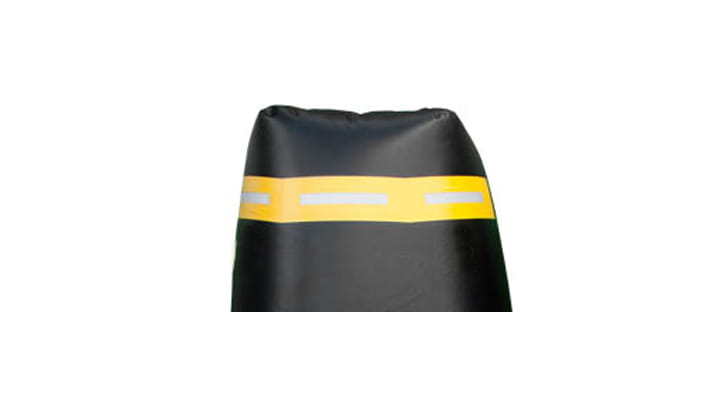

Protective cap
7.0 Kg (15 Ibs)
587031

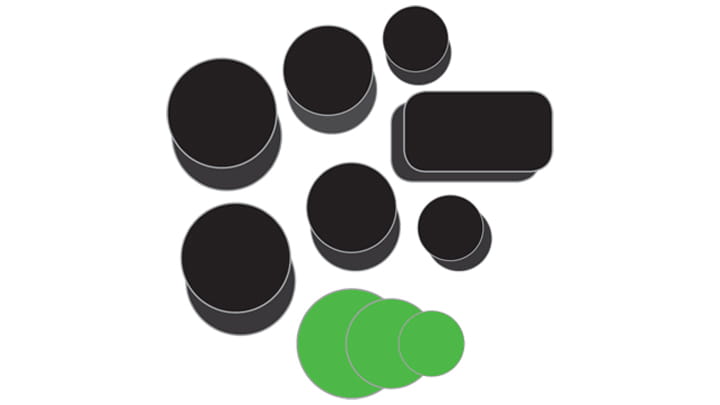

Repair kit
0.5 Kg (1.1 Ibs)
578468

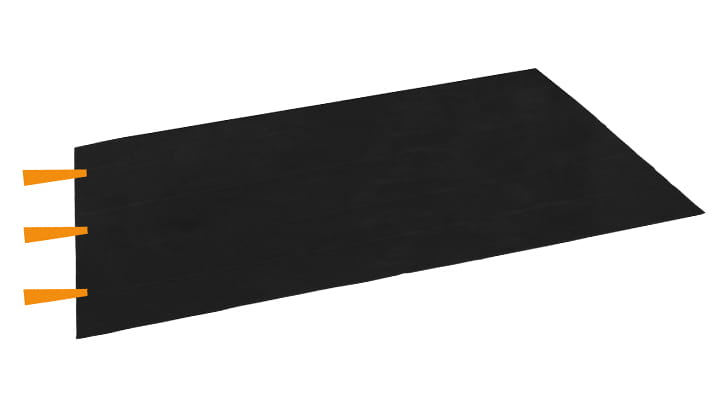

Top cover
PVC 579669
2.0 Kg (4.4 Ibs)
Rubber 581226
9.9 Kg (22Ibs)
Proposed Recovery Sets
|
PART |
DESCRIPTION |
LONG HEAVY VEHICLE SET |
HEAVY VEHICLE SET |
|
|
Quantity [pc] |
||||
|
1 |
574577 |
SCB-1 |
3 |
2 |
|
2 |
574578 |
INFLATION HOSE 10 m (33’) (FOR CATCH BAGS) |
3 |
2 |
|
3 |
574580 |
BLOWER |
1 |
1 |
|
4 |
574579 |
THREE-WAY DISTRIBUTOR |
1 |
1 |
|
5 |
574581 |
BLIND COUPLING |
1 |
1 |
|
6 |
578468 |
REPAIR KIT FOR CATCH BAGS |
1 |
1 |
|
7 |
587031 |
PROTECTIVE CAP |
3 |
2 |
|
8 |
581228 |
INSERTION POLE |
3 |
2 |
|
9 |
581229 |
WEDGE |
2 |
2 |
Download instructions for use
