Your new companion for small main sewers

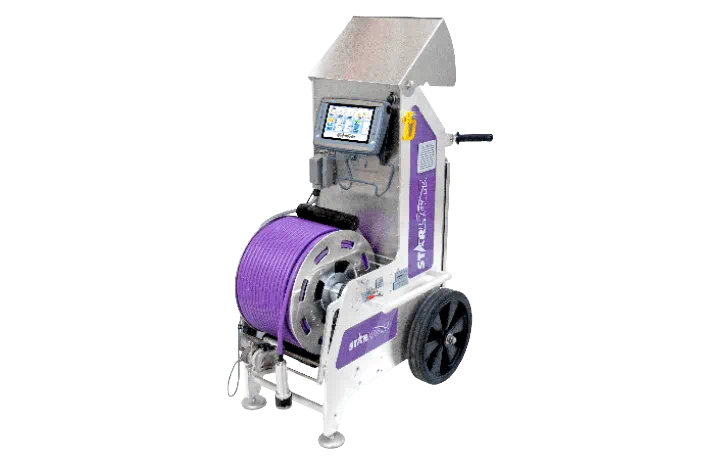

The STARLIGHT UV curing system, consisting of a mobile UV system, several liner and resin variants for the rehabilitation of pipes, lines and sewers from DN 150 to DN 600. The compact UV system was developed for mobile use and is made for small main sewers with critical access points, where bigger UV trucks might not enter. It is transportable in a sprinter or can be completely installed in a 3,5–5T mini-van. The power is supplied by house current.

If you want to watch this content, you must accept marketing cookies.

Cookie settings

Advantages of the system

  • Pipes and sewers from DN 150 to DN 600
  • Optimal for small main sewers and poorly accessible supports
  • Mobile UV curing system
  • Optimal price-performance ratio
  • Small and mobile system completely installed in a 3.5 T, Power via alternator or small generator
  • Small blower
  • Same control and documentation software as in the PowerLIGHT system
  • Perfect combination of equipment and consumables
  • Cable lengths of 90 m

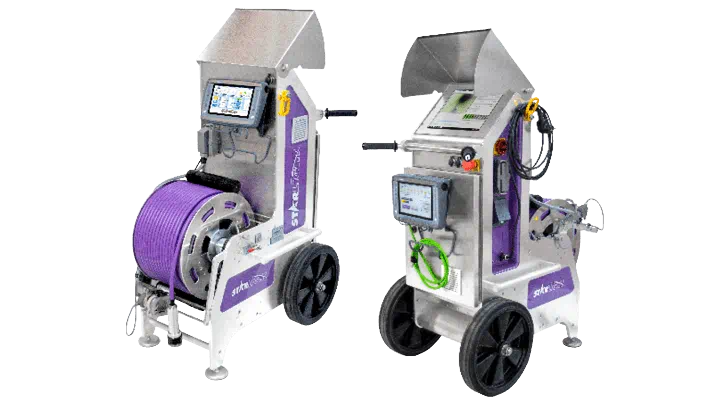

UV-technology starlight machine

Machine technology

  • Siemens HMI-Touchdisplay
  • Remote maintenance
  • Same PLC as in the PowerLIGHT system
  • Power: Max. Power 1.600 W with 4 x 400 W light chain
  • Cable lengths: 90 m
  • Dimensions: 800 x 610 x 1260 mm (L x W x H)
  • Weight: approx. 150 kg
  • Power supply: 230 V | 60 / 50 Hz | 16 A

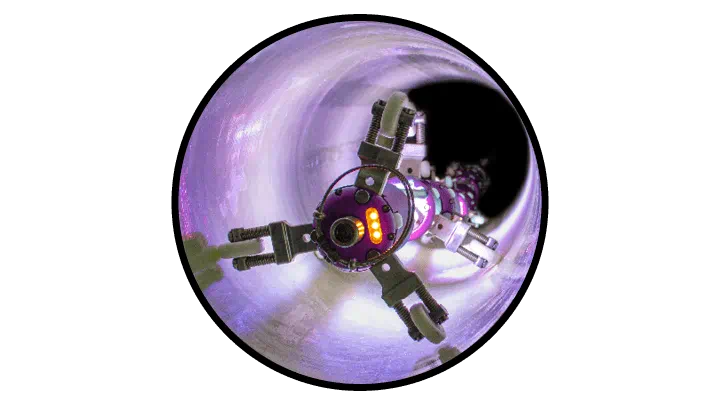

UV-technology starlight light-chain

Light chain 4 x 400 W

  • Range of application DN 150 – DN 600
  • Four uv bulbs implemented
  • Ø 100 mm - perfect for small liner
  • Length: 2100 mm
  • Weight: 10 kg
  • Front facing camera included
  • Wheelsets DN 150 to DN 300 included – bigger wheelsets on request
