Componentes técnicos
Equipamiento básico

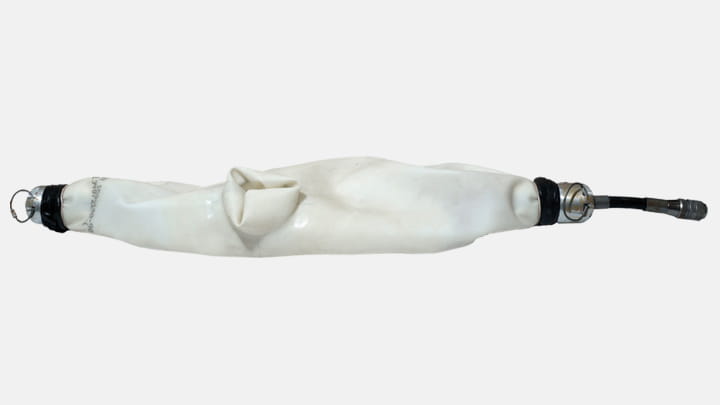

Trelleborg LCR-B Packer - Obturador
Packers are available in different sizes: S and L for lateral rehabilitation lengths of 280 mm/11 inch and 1180 mm/46.5 inch respectively. They can be converted into the dimension that is needed for the lateral connection (DN 50 - DN 200).
Usable for both, hot water or steam cure.
Trelleborg LCR-B Push Rod - Varillas de empuje por aire
Push rods are available in different materials and lengths (0.7 m; 1.5 m; 3.0 m)
LCR-B air push rods are equipped with safety coupler and lock.

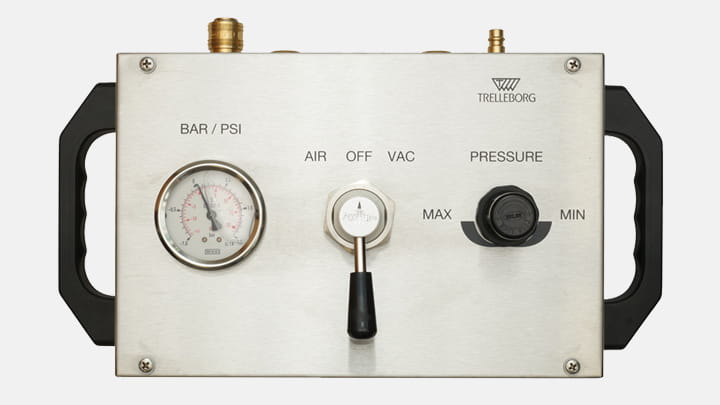

LCR-B Control Box – Caja de control
The LCR-B control box controls the compressed air and the vacuum for the LCR-B packer.
Trelleborg Steam Generators - Generadores de vapor
Two types, 3 kg/h or 6 kg/h steam production
This small steam unit is the best solution if you want to speed up the curing time of built-in hat profiles or LCR liners, using the Trelleborg LCR method for lateral connection repair of underground house sewers and downpipes in buildings. It is easy to handle and suited for portable use.
- Trelleborg Steam Gen 3 / 230 V / 3.5 kW / steam production 3 kg/h
- Trelleborg Steam Gen 6 / 400 V / 6.0 kW / steam production 6 kg/h
Maximum Pressure: 6 bar
Certificates
International Standards
In conformance with worldwide standards.
European Standards
Devices meet the requirements of the applicable EC directives.
Quality Management
In conformance with the quality management standard criteria
Quality Management
In conformance with the quality management standard criteria
