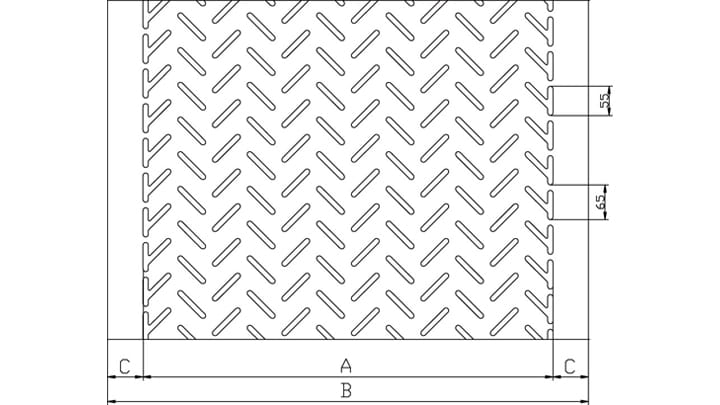

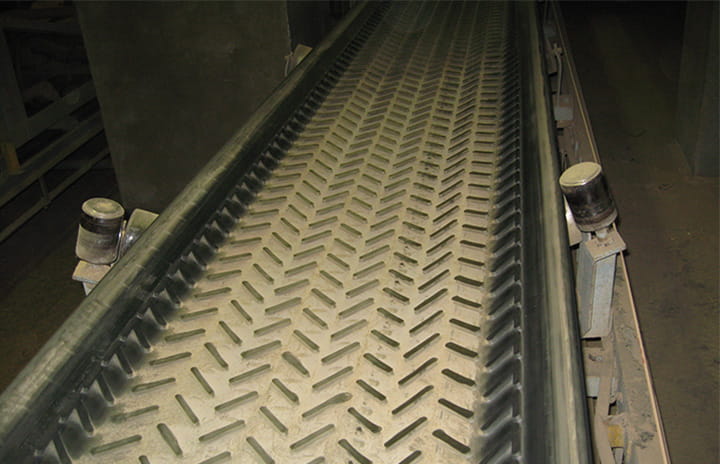

L type conveyor belts

Type L - profile height 8 mm (reversible)

Pattern	Width (B) (mm)	Pattern width (A) (mm)	Fleezone width (C) (mm)	EP 400/3 3,5/1,5	EP 500/4 4/2
L 38	500	380	60	only on request	only on request
L 51	650	510	70	only on request	only on request
L 64	800	640	80	only on request	only on request
L 77	1000	770	115	only on request	only on request
L 103	1200	1030	85	only on request	only on request
L 103	1400	1030	185	only on request	only on request
L 142	1600	1420	90	only on request	only on request
	1800	1420	190	only on request	only on request
	2000	1420	290	only on request	only on request
