Key features & benefits
- Suitable for the efficient transportation of a wide range of materials
- Maximum inclination angle of 22 degrees
- Homogeneous Chevron profiles that are vulcanized together with a base belt
- Durable and flexible
- Individualized design
- Engineered to deliver optimal performance and reliability
Applications
- Quarries, sandpits
- Cement works, lime works
- Farming: conveying of beets, grains, potatoes, fertilizers, wooden chips
- Coal and coke transportsugar refineries
- Sugar refineries
- Salt mines
- Mobile crushers and screens
- Road milling machines
Types of chevron belts
- A - profile height 16 mm
- AH - profile height 25 mm
- F - profile height 32 mm
- AF - profile height 32 mm
|
Type of material |
Material example |
Max. angle of inclination |
||
|---|---|---|---|---|
|
Height of cleats |
||||
|
Profile type A, h: 16 mm |
Profile type AH, h: 25 mm |
Profile type AF and F, h: 32 mm |
||
|
POWDERY |
Flour, lime, etc. |
25° |
28° |
30° |
|
LOOSE FLOWING |
Grains: corn, barley, wheat, rye, dry sand |
20/25° |
25/30° |
25/30° |
|
LOOSE ROLLING |
Gravel, ground stone |
25° |
28° |
30° |
|
STICKY |
Wet sand, ash, wet loam |
30/35° |
35/40° |
40/45° |
|
PACKED |
Sacks, jute sacks, paper sacks |
30/35° |
35/40° |
35/40° |
|
|
|
|
||
Widths
- From 350 to 2000 mm (with molded edges)
- Specific width requests up to from 350 of 2100 mm (with cut edges)
Reinforced belts
- Textile breaker
- RC
- RCH (rip check cords)
- Different built carcass
Material
- Multiply EP carcass (warp polyester + weft polyamide)
- EE carcass (warp polyester + weft polyester)
- EPP (warp polyester + warp polyamide + weft polyamide) constructions
Chevron conveyor belts with A and AH type profiles

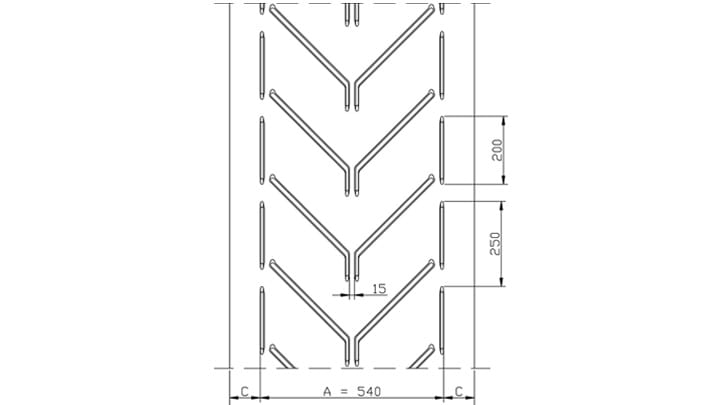

A54, AH54

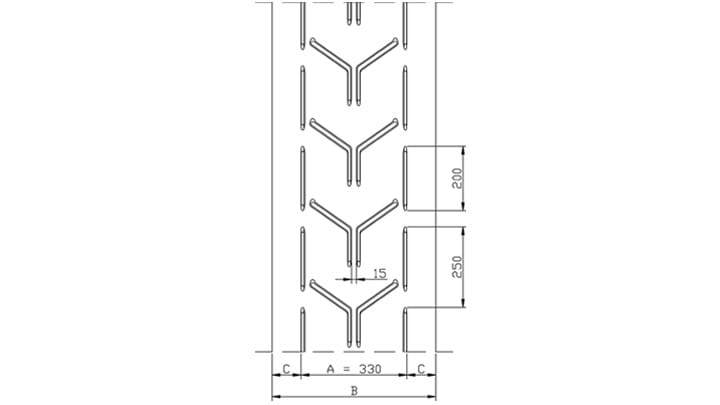

A33, AH33

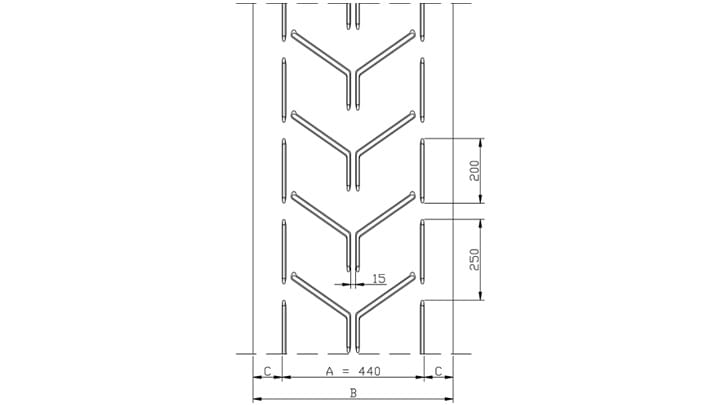

A44, AH44

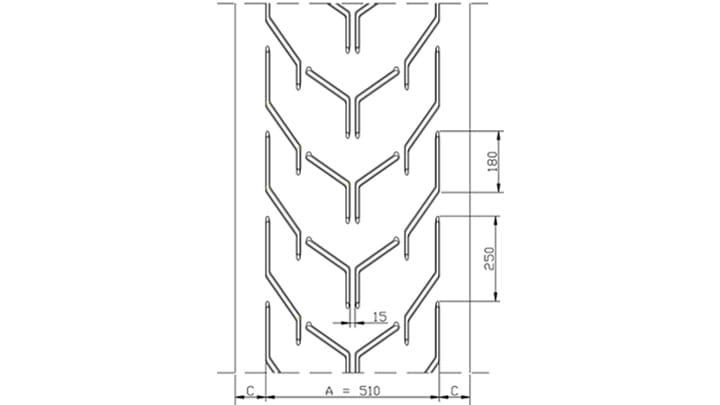

A51, AH51

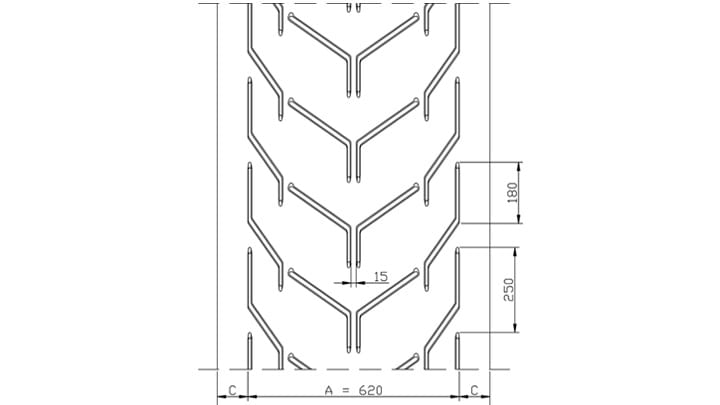

A62, AH62

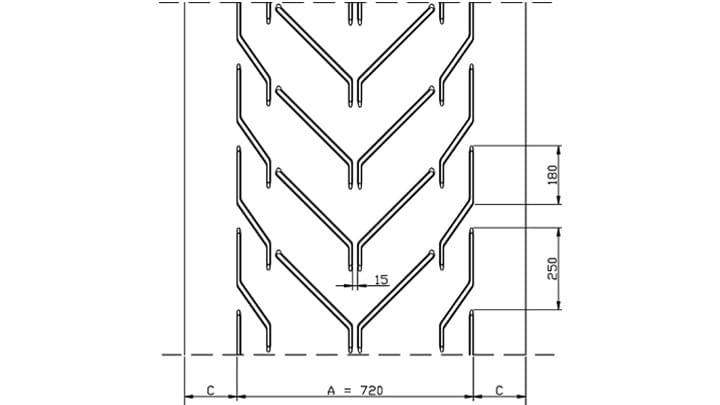

A72, AH72

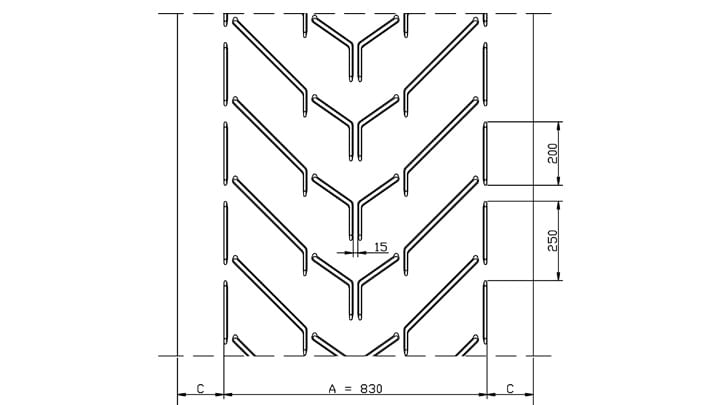

A83, AH83

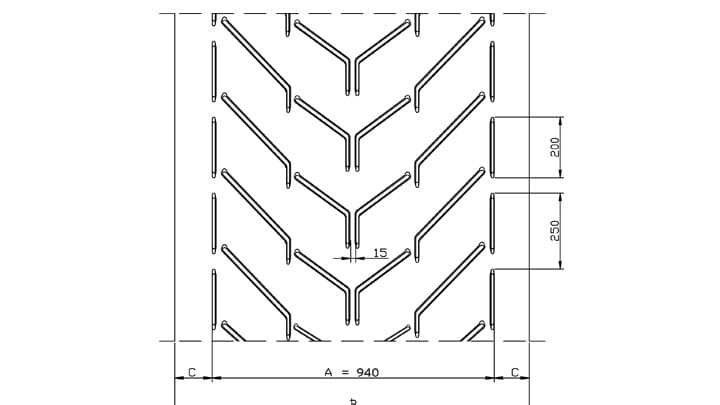

A94, AH94

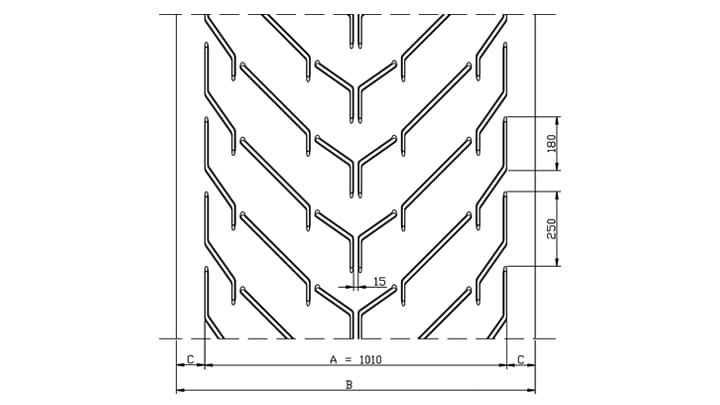

A101, AH101

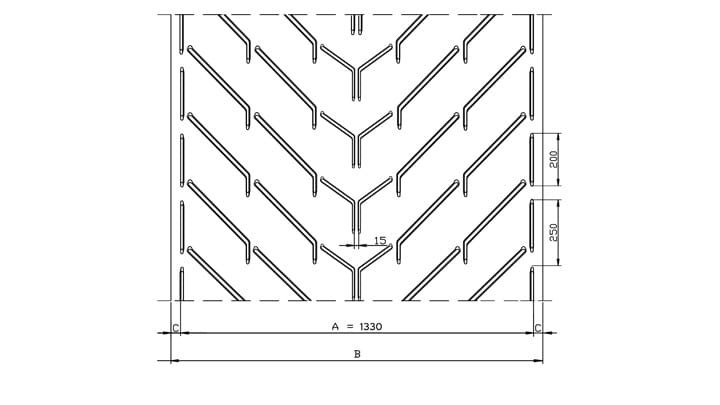

A133, AH133

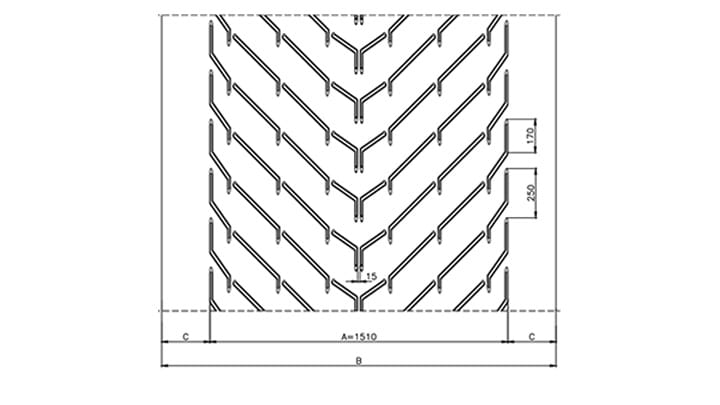

A151, AH151

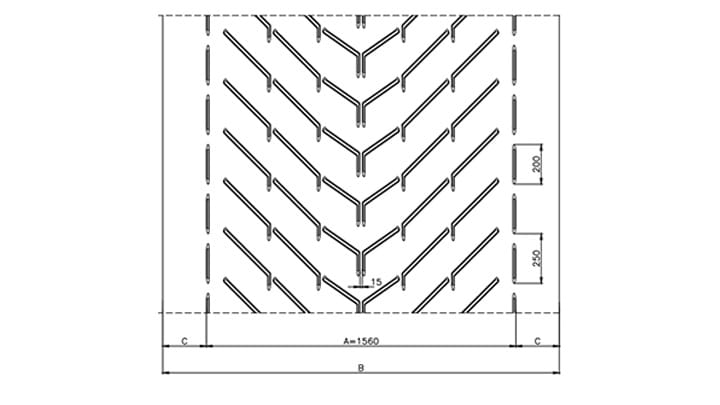

A156, AH156

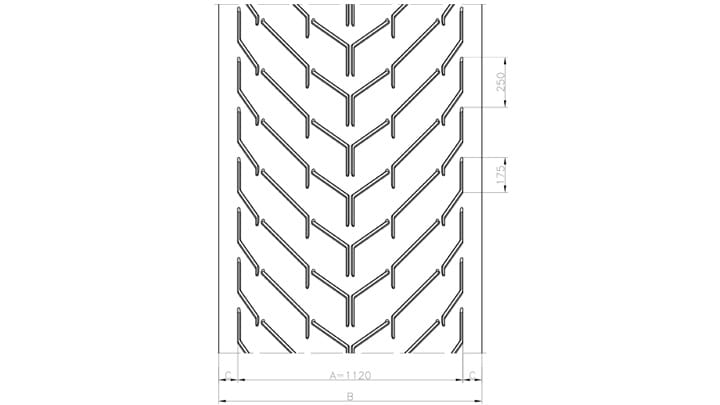

A112, AH112

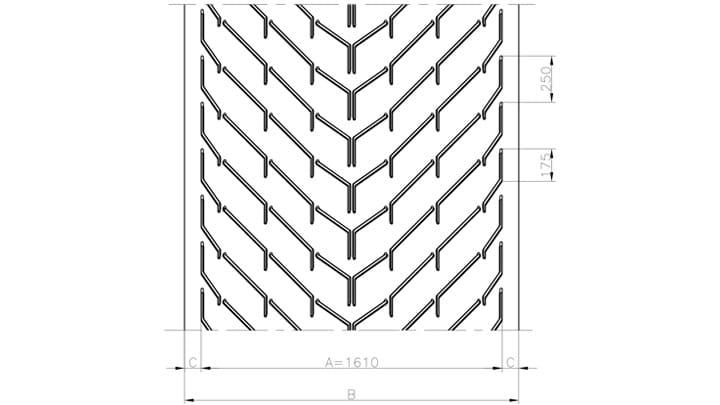

A161, AH161
Chevron conveyor belts with AC type profiles
Key features & benefits of the AF Chevron conveyor
Improved forming of the through on the conveyor.
Smoother run on return side – less vibration, longer service life of the equipment, lower costs.
Better tension distribution and improved crack prevention on chevrons travelling over the drum.
Higher productivity due to improved design and flow of transported material.
Shorter pitch, less material rolling backward.

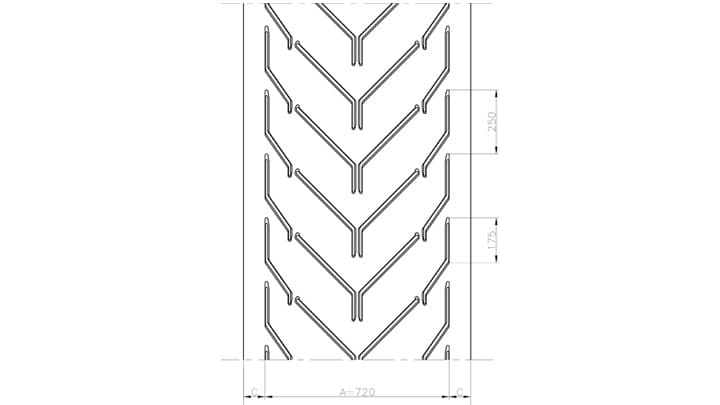

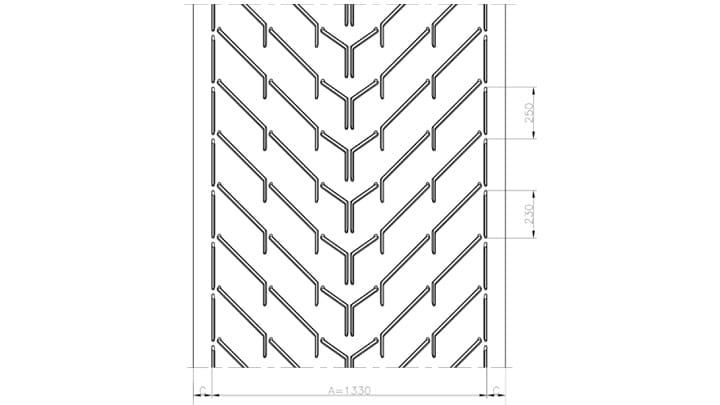

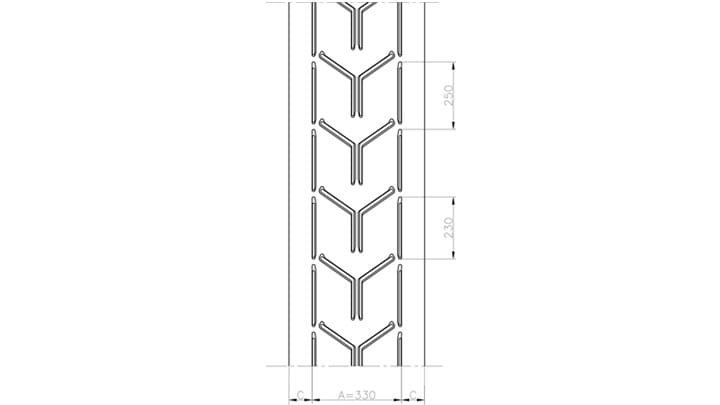

AF 33

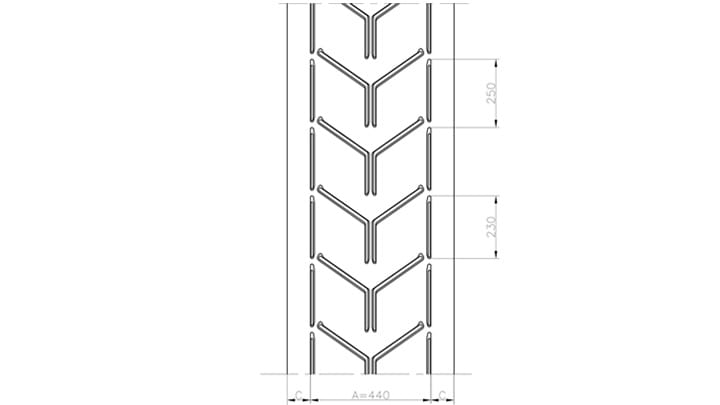

AF 44
AF 51

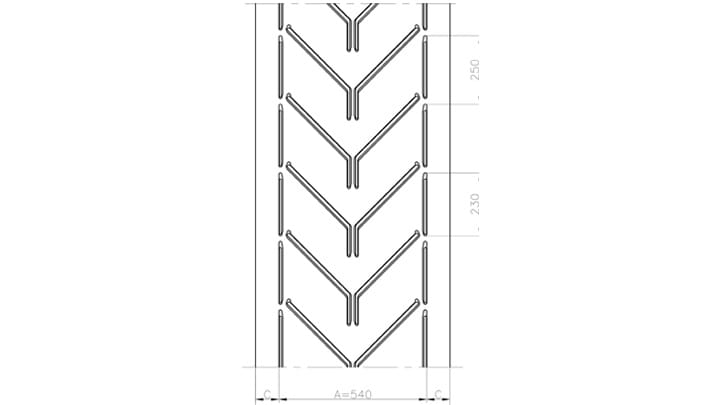

AF 54

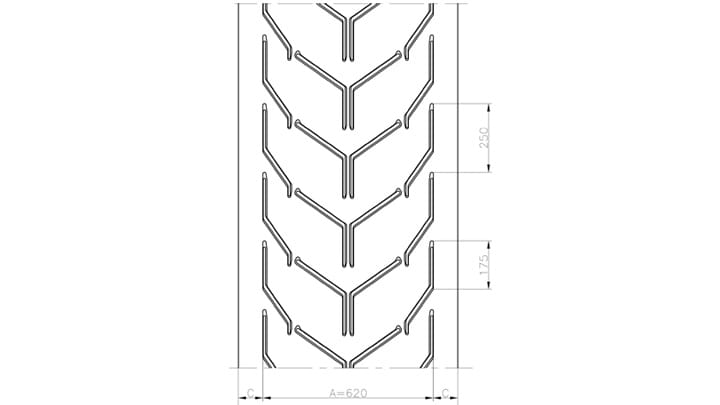

AF 62
AF 72

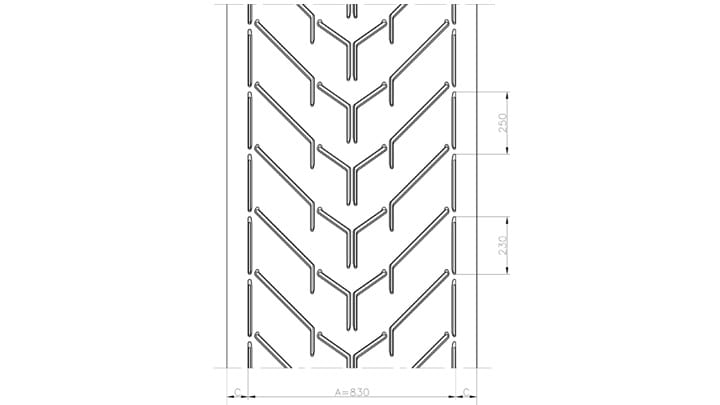

AF 83

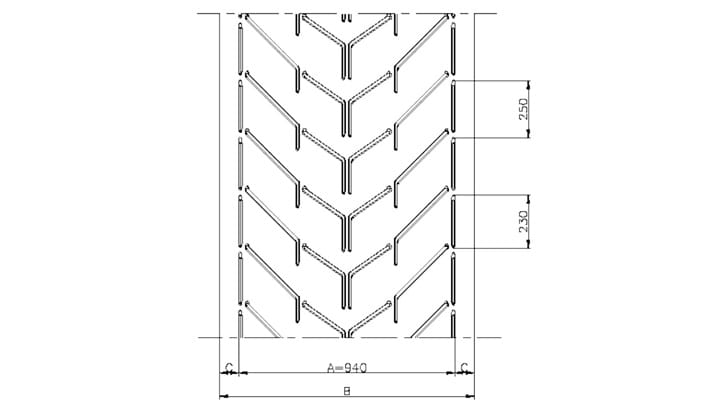

AF 94

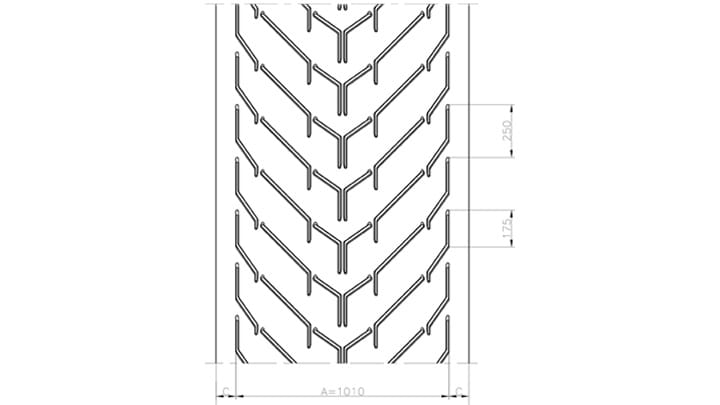

AF 101

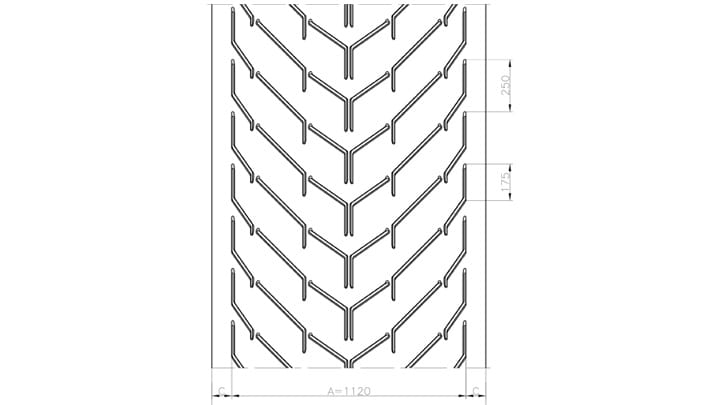

AF 112
AF 133

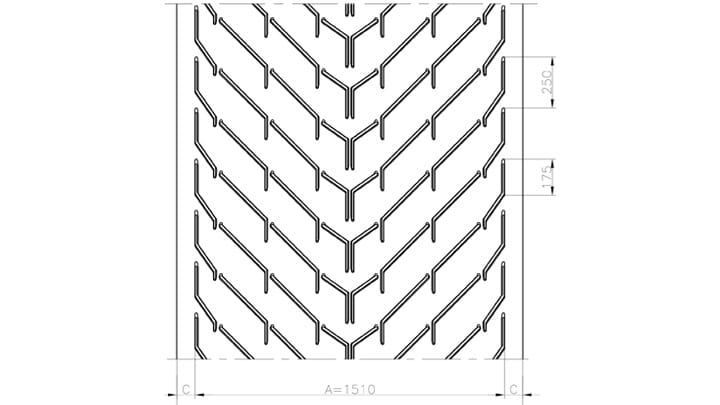

AF 151

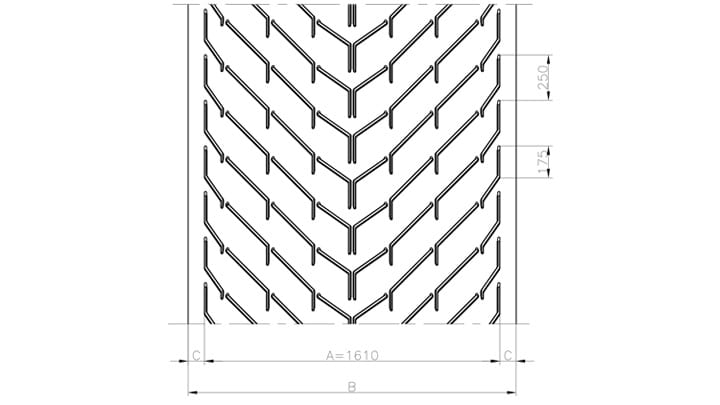

AF 161

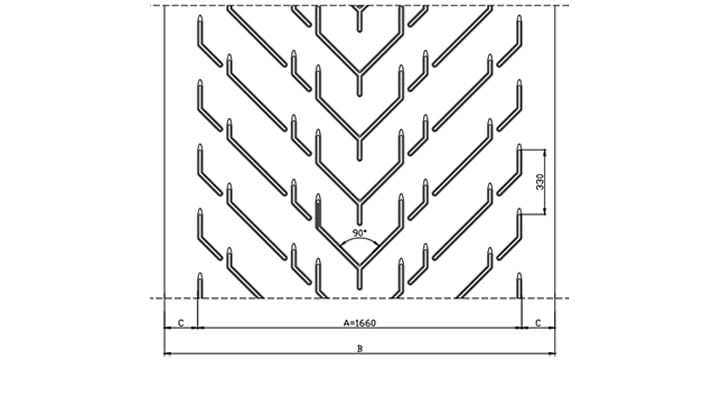

Chevron conveyor belts with F type profiles

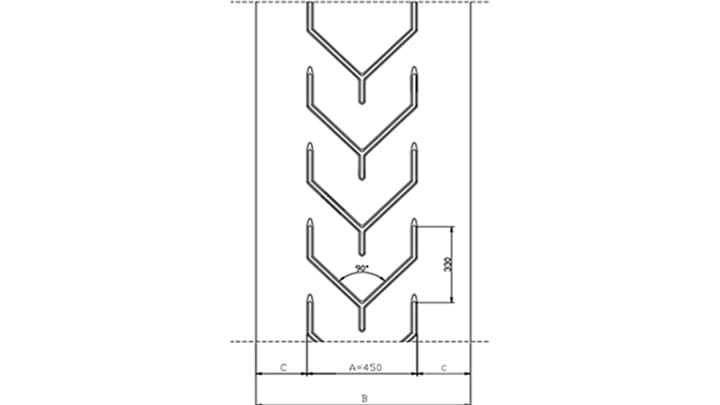

F 45

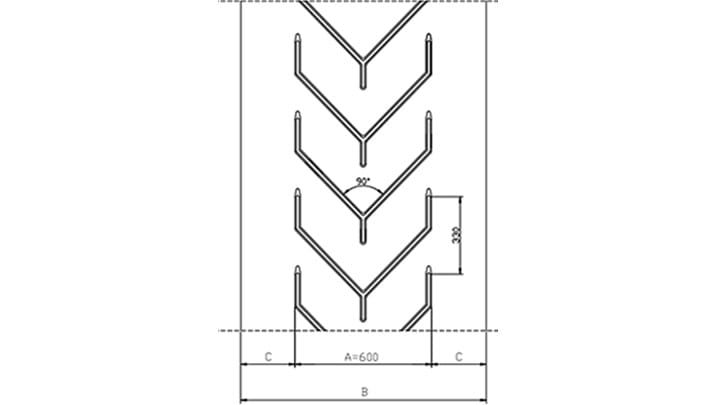

F 60

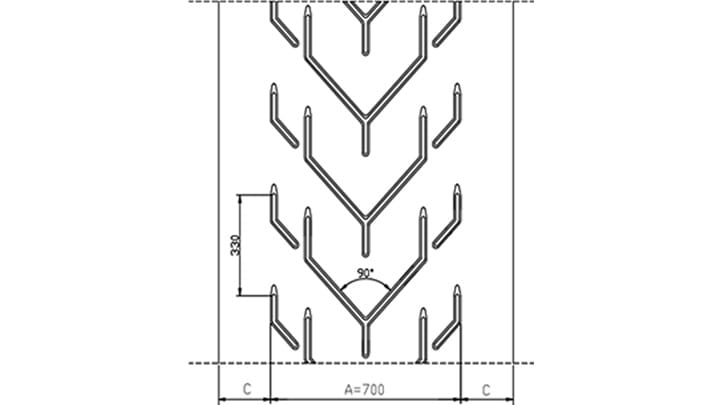

F 70

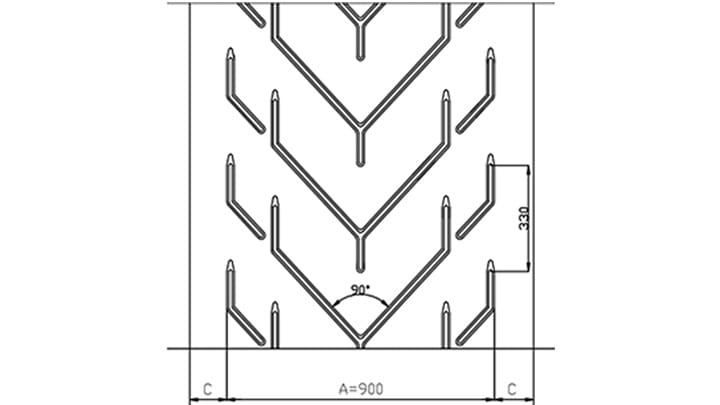

F 90

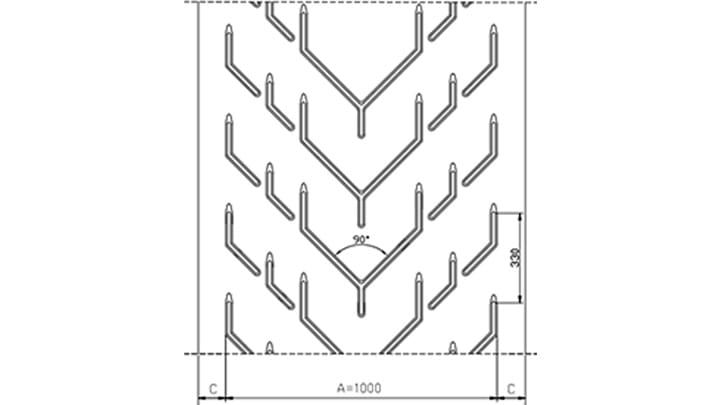

F 100

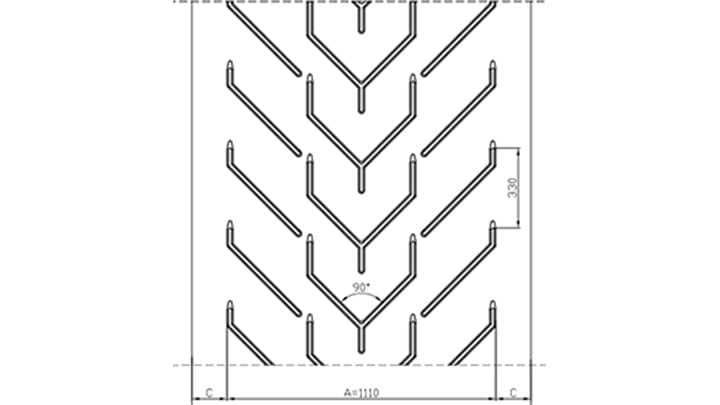

F 111

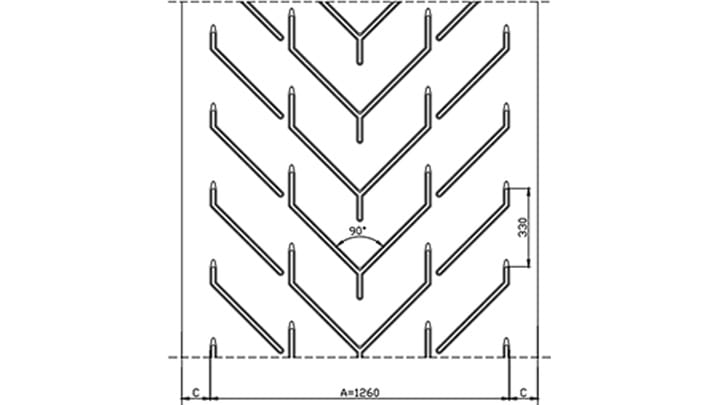

F 126

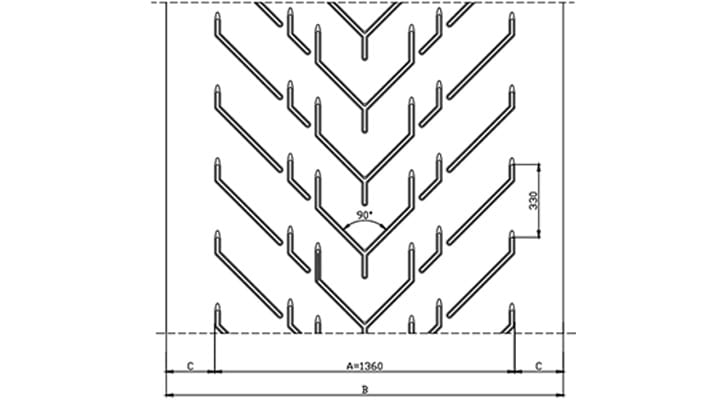

F 136

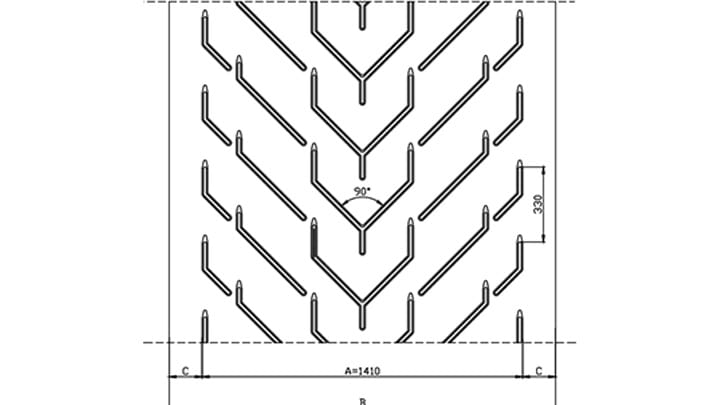

F 141

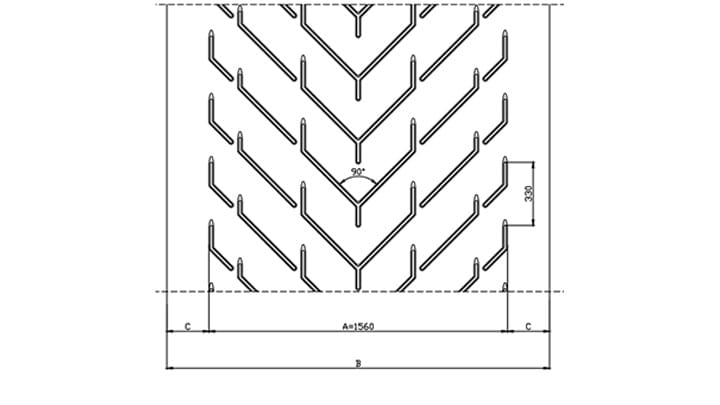

F 156
