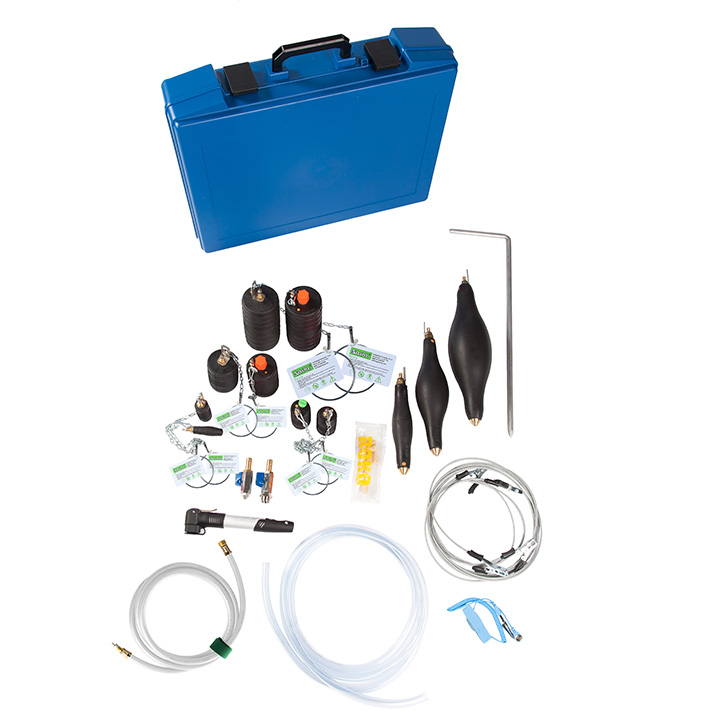

Pipe Plug Kit - Plugs
| PART NUMBER | DESCRIPTION |
QUANTITY [pc] |
| 542488 | Elliptical Plugy G1 50-80 C | 1 |
| 542489 | Elliptical Plugy G2 80-130 C | 1 |
| 542490 | Elliptical Plugy G3 100-160 C | 1 |
| 523289 | Pneumatic plug type Z1 C | 1 |
| 523290 | Pneumatic plug type Z1 1/2 C | 1 |
| 523292 | Pneumatic plug type Z2/3 C | 1 |
| 523294 | Pneumatic plug type Z3/4 C | 1 |
| 523296 | Pneumatic plug type Z4/6 C | 1 |
| 523302 | Pneumatic plug type S2 C | 1 |
| 523304 | Pneumatic plug type S3/4 C | 1 |
| 523307 | Pneumatic plug type S4/6 C | 1 |
Pipe Plug Kit - Accessories
| PART NUMBER | DESCRIPTION |
QUANTITY [pc] |
| 541951 | Tyre valve extension hose 1 m (3’), 0.1 kg (0.22 lbs) | 2 |
| 551285 | Inflation hose 3 m (10’), antistatic, 0.3 kg (0.66 lbs) | 1 |
| 541957 | Static discharge kit, 0.5 kg (0.11 lbs) | 1 |
| 541960 | Hand pump - mini, 0.2 kg (0.44 lbs) | 1 |
| 541952 | Shut-off valve R 1/8”, 0.3 kg (0.66 lbs) | 1 |
| 541953 | Shut-off valve R 1/2”, 0.3 kg (0.66 lbs) | 1 |
| 541958 | Bag of corks, 0.03 kg (0.066 lbs) | 1 |
| 580018 |
Controlling pressure gauge up to 3 bar (44 psi), 0.2 kg (0.44 lbs) |
1 |
| 542217 |
Portable case type 3, 609 x 409 x 140 mm (24” x 16” x 5,5”) with foam, 4.0 kg (8.8 lbs) |
1 |
Technical Data
| TYPE |
PART NUMBER |
SIZE USAGE RANGE | WEIGHT |
WORKING PRESSURE |
DEFLATED PLUG DIMENSIONS |
INFLATION VALVE |
BYPASS DIAMETER |
||
|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIAMETER |
MAX. DIAMETER |
DIAMETER |
RUBBER BODY LENGTH |
||||||
| [mm] / [inch] | [mm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [mm] / [inch] | [mm] / [inch] | Thread size | (female) | ||
| ELLIPTICAL PLUGY G1 50-80 C | 542488 | 45 / 2" | 80 / 3" | 0.3 / 0.7 | 3 / 44 | 45 / 2" | 280 / 11" | R 1/4" | / |
| ELLIPTICAL PLUGY G2 80-130 C | 542489 | 75 / 3" | 130 / 5" | 0.4 / 0.9 | 2.5 / 36 | 76 / 3" | 360 / 14" | R 1/4" | / |
| ELLIPTICAL PLUGY G3 100-160 C | 542490 | 100 / 4" | 160 / 6" | 0.6 / 1.3 | 2 / 29 | 98 / 4" | 420 / 17" | R 3/8" | / |
| PNEUMATIC PLUG TYPE Z1 C | 523289 | 20 / 1" | 30 / 1" | 0.01 / 0.02 | 2.5 / 36 | 19 / 1" | 65 / 3" | R 1/8" | / |
| PNEUMATIC PLUG TYPE Z1 1/2 C | 523290 | 33 / 1" | 40 / 2" | 0.1 / 0.2 | 2.5 / 36 | 32 / 1" | 70 / 3" | R 1/4" | / |
| PNEUMATIC PLUG TYPE Z2/3 C | 523292 | 50 / 2" | 75 / 3" | 0.1 / 0.2 | 2.5 / 36 | 45 / 2" | 80 / 3" | R 1/4" | / |
| PNEUMATIC PLUG TYPE Z3/4 C | 523294 | 75 / 3" | 100 / 4" | 0.3 / 0.7 | 2.5 / 36 | 70 / 3" | 100 / 4" | R 1/4" | / |
| PNEUMATIC PLUG TYPE Z4/6 C | 523296 | 100 / 4" | 150 / 6" | 0.5 / 1.1 | 2.5 / 36 | 85 / 4" | 165 / 7" | R 1/4" | / |
| PNEUMATIC PLUG TYPE S2 C | 523302 | 50 / 2" | 0.2 / 0.4 | 2.5 / 36 | 45 / 2" | 80 / 3" | R 1/8" | 1/8" | |
| PNEUMATIC PLUG TYPE S3/4 C | 523304 | 75 / 3" | 100 / 4" | 0.4 / 0.9 | 2.5 / 36 | 70 / 3" | 100 / 4" | R 1/8" | 1/2" |
| PNEUMATIC PLUG TYPE S4/6 C | 523307 | 100 / 4" | 150 / 6" | 0.7 / 1.5 | 2.5 / 36 | 85 / 4" | 165 / 7" | R 1/8" | 1/2" |
