Deploy the kit at chemical processing plants, oil refineries, LNG plant trains, regasification terminals, exploration and drilling platforms, ocean transport vessels, railways and pipeline transport facilities.

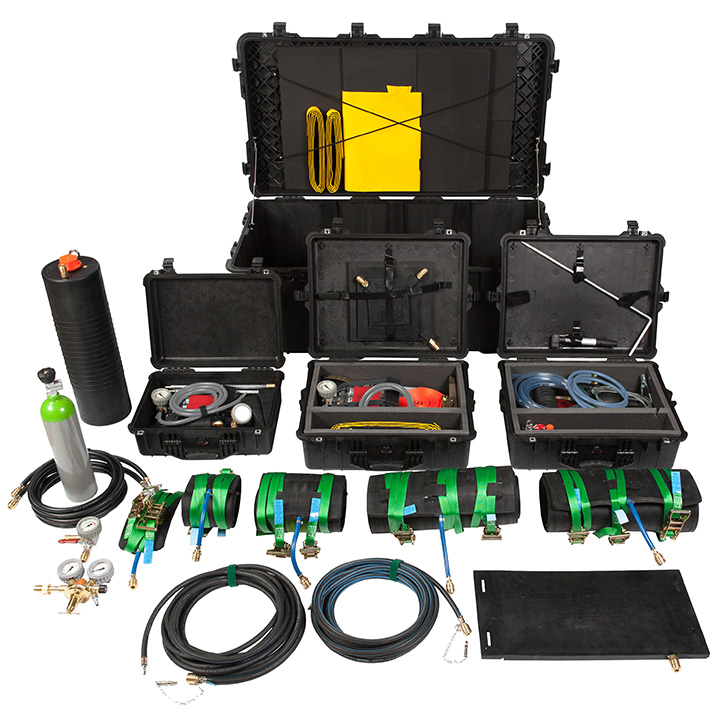

The Mega Sealing Kit Consists of:
This is our standard mega set. Custom-made mega kits are available on request.
Cases
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 577688 | Mega black case, 38.0 kg (84 lbs) | 1 |
| 562160 | Medium black case with foam, 5.0 kg (11 lbs) | 1 |
| 566529 | Small black case with foam, 3.0 kg (6.6 lbs) | 2 |
MK Sealing Bandages Set
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 515713 | SB 1 125 x 250 mm (5’’ x 10’’) | 1 |
| 525813 | SB 2 125 x 980 mm (5’’ x 39’) | 1 |
| 525277 | SB 5 250 x 800 mm (10’’ x 32’’) | 1 |
| 516042 | SB 7 450 x 1300 mm (18’’ x 51’’) | 1 |
| 525814 | SB 8 450 x 1700 mm (18’’ x 70’’) | 1 |
| 576567 |
Inflation hose EPDM with chain and deflation nipple, 10 m (33’), 3.0 kg (6.6 lbs) |
1 |
MK M1 Set - 1.5 Bar
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 60043 |
Leak sealing bag, Type M1 with belt guiding slits |
1 |
| 529094 |
Inflation hose, 10 m (33’), blue with chain and deflation nipple, 1.4 kg (3 lbs) |
1 |
| 60166 |
Tensioning and extension belts, 10 m (33’) long, yellow, with ratchet, 2.0 kg (4.4 lbs) |
1 |
| 60165 |
Tensioning and extension belts, 10 m (33’) long, orange, with ratchet, 2.1 kg (4.6 lbs) |
1 |
| 524551 | Sealing plate, 600 x 300 x 30 mm, (24” x 12” x 1,2”) CR, 1.0 kg (2.2 lbs) | 2 |
| 524552 | Sealing plate,1000 x 300 x 30 mm (40” x 12” x 1,2”), CR, 1.5 kg (3.3 lbs) | 2 |
| 528304 | Acid proof protection bag for M1, 0.4 kg (0.88 lbs) | 1 |
Mk Leak Sealing Lance Set
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 528386 | Wedge-shaped sealing bag type 1 | 1 |
| 528387 | Wedge-shaped sealing bag type 2 | 1 |
| 528388 | Wedge-shaped sealing bag type 3 | 1 |
| 528389 | Cone-shaped sealing bag | 1 |
| 528618 |
Push and inflation rod, 35 cm (14’), chain, deflation nipple, 0.5 kg (1.1 lbs) |
1 |
| 528619 | Push and inflation rod, 35 cm (14’), 0.4 kg (0.88 lbs) | 3 |
| 529510 | Shut-off unit, 0.7 kg (1.5 lbs) | 1 |
| 528873 | Foot-operated pump with safety valve 1.5 bar (22 psi), 2.9 kg (6.4 lbs) | 1 |
| 529087 | Splash disc, 0.04 kg (0.088 lbs) | 1 |
MK Pipe Plug Kit
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 542488 | Elliptical Plugy G1 50-80 C | 1 |
| 542489 | Elliptical Plugy G2 80-130 C | 1 |
| 542490 | Elliptical Plugy G3 100-160 C | 1 |
| 523289 | Pneumatic plug type Z1 C | 1 |
| 523290 | Pneumatic plug type Z1 1/2 C | 1 |
| 523292 | Pneumatic plug type Z2/3 C | 1 |
| 523294 | Pneumatic plug type Z3/4 C | 1 |
| 523296 | Pneumatic plug type Z4/6 C | 1 |
| 523302 | Pneumatic plug type S2 C | 1 |
| 523304 | Pneumatic plug type S3/4 C | 1 |
| 523307 | Pneumatic plug type S4/6 C | 1 |
| 541951 | Tyre valve extension hose 1 m (3.3’), 0.1 kg (0.22 lbs) | 2 |
| 551285 | Inflation hose 3 m (10’), antistatic, 0.3 kg (0.66 lbs) | 1 |
| 541957 | Static discharge kit, 0.5 kg (1.1 lbs) | 1 |
| 541960 | Hand pump - mini, 0.2 kg (0.44 lbs) | 1 |
| 541952 | Shut-off valve R 1/8”, 0.3 kg (0.66 lbs) | 1 |
| 541953 | Shut-off valve R 1/2”, 0.3 kg (0.66 lbs) | 1 |
| 541958 | Bag of corks, 0.03 kg (0.066 lbs) | 1 |
| 580018 |
Controlling pressure gauge - up to 3 bar (44 psi), 0.2 kg (0.44 lbs) |
1 |
MK Mini Leak Sealing Bags Set
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 78082 | Type T1 | 1 |
| 78096 | Type T2 | 1 |
| 78099 | Type T3 | 1 |
| 528873 | Foot-operated pump with safety valve 1.5 bar (22 psi), 2.9 kg (6.4 lbs) | 1 |
| 60167 |
Fastening belts, 150 cm (5’) long, yellow, 0.2 kg (0.44 lbs) |
2 |
| 60169 |
Fastening belts, 300 cm (10’) long, yellow, 0.4 kg (0.88 lbs) |
3 |
MK Oil-Resistant Plugsy Set
|
PART NUMBER |
DESCRIPTION |
QUANTITY [pc] |
| 576566 | Inflation hose 10 m (33’), black, 3.0 kg (6.6 lbs) | 1 |
| 567165 | CR inflation hose 3 m (10’), black, 1.5 kg (3.3 lbs) | 2 |
| 560195 |
Pressure reducer – 200/300 bar (2900/4350psi), 1.7 kg (3.7 lbs) |
1 |
| 60310 | Single fitting controller 2.5 bar (36 psi), 0.9 kg (2 lbs) | 1 |
| 526635 | Plugsy C 200-400 | 1 |
| 525324 |
Air cylinder 2L (122 cu.in.) – 200 bar (2900 psi), 3 kg (6.6 lbs) |
1 |
