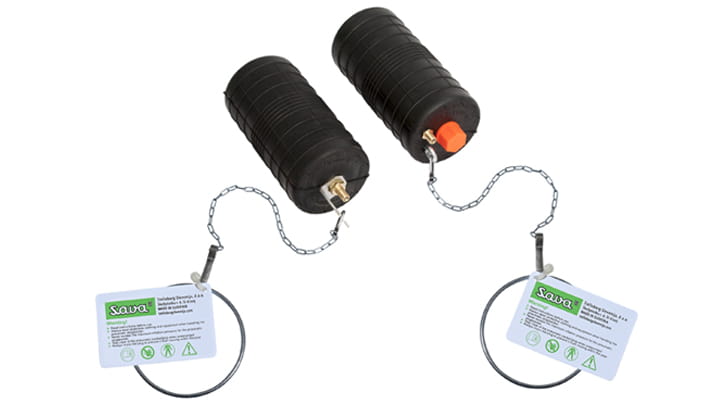

Trelleborg plugs of smaller diameters PLUGY Z and PLUGSY S can be used in all types of pipelines.
Since these plugs are not reinforced with cord, they exhibit excellent stretching and sealing characteristics in pipe diameters from 20 mm (0.8″) up to 305 mm (12″).
Plugs are equipped with a car tire inflation valve and can be inflated with a standard tire pump. An eyebolt with a chain and a specially designed handle simplify manipulation of the plug.
|
PART NUMBER |
NOMINAL SIZE | SIZE USAGE RANGE |
REQUIRED INFLATION PRESSURE [bar] / [psi] |
DEFLATED PLUG |
PRODUCT WEIGHT [kg] / [oz / lbs] |
EYE BOLT | INFLATION VALVE | ||
|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA.
[mm] / [inch] |
MAX. DIA.
[mm] / [inch] |
DIAMETER
[mm] / [inch] |
RUBBER
LENGTH [mm] / [inch] |
M THREAD | THREAD SIZE | ||||
| 508123 | Z1 | 20 / 0.75” | 33 / 1.3” | 2.5 / 36 | 19 / 0.8" | 65 / 2.6” | 0.01 / 0.4 oz | NA | R 1/8” |
| 60022 | Z1 1/2 | 33 / 1.3” | 40 / 1.6” | 2.5 / 36 | 32 / 1.3" | 70 / 2.8” | 0.09 / 3.2 oz | NA | R 1/4” |
| 78582 | Z2 | 50 / 2” | 2.5 / 36 | 45 / 1.8" | 72 / 2.8” | 0.11 / 3.9 oz | NA | R 1/4” | |
| 78603 | Z2-3 | 50 / 2” | 75 / 3” | 2.5 / 36 | 45 / 1.8" | 80 / 3.1” | 0.12 / 4.2 oz | NA | R 1/4” |
| 76767 | Z3 | 75 / 3” | 2.5 / 36 | 70 / 2.8" | 85 / 3.3” | 0.23 / 8.1 oz | NA | R 1/4” | |
| 78604 | Z3-4 | 75 / 3” | 100 / 4” | 2.5 / 36 | 70 / 2.8" | 100 / 3.9” | 0.25 / 8.8 oz | NA | R 1/4” |
| 76769 | Z4 | 100 / 4” | 2.5 / 36 | 85 / 3.3" | 145 / 5.7” | 0.43 / 15 oz | NA | R 1/4” | |
| 78605 | Z4-6 | 100 / 4” | 150 / 6” | 2.5 / 36 | 85 / 3.3" | 165 / 6.5” | 0.47 / 1 lbs | NA | R 1/4” |
| 76771 | Z6 | 150 / 6” | 2.5 / 36 | 142 / 5.6" | 190 / 7.5 | 1.23 / 2.7 lbs | NA | R 1/4” | |
| 78606 | Z6-8 | 150 / 6” | 200 / 8” | 2.5 / 36 | 142 / 5.6" | 220 / 8.7” | 1.32 / 2.9 lbs | NA | R 1/4” |
| 60616 | Z8 | 175 / 7” | 204 / 8” | 2.5 / 36 | 174 / 6.9" | 220 / 8.7” | 2.1 / 4.6 lbs | 6 | R 1/4” |
| 60618 | Z10 | 219 / 9” | 254 / 10” | 2.5 / 36 | 218 / 8.6" | 250 / 9.8” | 3.4 / 7.5 lbs | 6 | R 1/4” |
| 60619 | Z12 | 275 / 11” | 305 / 12” | 2.5 / 36 | 274 / 10.8" | 290 / 10.8” | 5.1 / 11 lbs | 6 | R 1/4” |
|
PART NUMBER |
NOMINAL SIZE | SIZE USAGE RANGE |
REQUIRED
INFLATION PRESSURE [bar] / [psi] |
DEFLATED PLUG | PRODUCT WEIGHT [kg] / [oz / lbs] |
EYE BOLT | INFLATION VALVE |
BYPASS DIAMETER [FEMALE] |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA. [mm] / [inch] |
MAX. DIA. [mm] / [inch] |
DIAMETER [mm] / [inch] |
RUBBER
LENGTH [mm] / [inch] |
M THREAD | THREAD SIZE | |||||
| 78607 | S2 | 50 / 2” | 2.5 / 36 | 45 / 1.8" | 80 / 3.1” | 0.2 / 7 oz | NA | R 1/8” | 1/8” | |
| 76768 | S3 | 75 / 3” | 2.5 / 36 | 70 / 2.8" | 85 / 3.3” | 0.34 / 12 oz | 6 | R 1/8” | 1/2” | |
| 78614 | S3-4 | 75 / 3” | 100 / 4” | 2.5 / 36 | 70 / 2.8" | 100 / 3.9” | 0.43 / 15 oz | 6 | R 1/8” | 1/2” |
| 76770 | S4 | 100 / 4” | 2.5 / 36 | 85 / 3.3" | 145 / 5.7” | 0.6 / 1.3 lbs | 6 | R 1/8” | 1/2” | |
| 78609 | S4-6 | 100 / 4” | 150 / 6” | 2.5 / 36 | 85 / 3.3" | 165 / 6.5” | 0.73 / 1.6 lbs | 6 | R 1/8” | 1/2” |
| 76772 | S6 | 150 / 6” | 2.5 / 36 | 142 / 5.6" | 190 / 7.5 | 2.13 / 4.7 lbs | 6 | R 1/8” | 1” | |
| 78610 | S6-8 | 150 / 6” | 200 / 8” | 2.5 / 36 | 142 / 5.6" | 220 / 8.7” | 2.38 / 5 lbs | 6 | R 1/8” | 1” |
| 60621 | S8 | 175 / 7” | 204 / 8” | 2.5 / 36 | 174 / 6.9" | 240 / 9.5” | 3.3 / 7 lbs | 6 | R 1/4” | 2” |
| 60622 | S10 | 219 / 9” | 254 / 10” | 2.5 / 36 | 218 / 8.6" | 300 / 11.8” | 4.7 / 10 lbs | 6 | R 1/4” | 2” |
| 60623 | S12 | 275 / 11” | 305 / 12” | 2.5 / 36 | 274 / 10.8" | 350 / 13.7” | 7.4 / 16 lbs | 6 | R 1/4” | 2” |
| PLUG SIZE | PIPE DIAMETER [mm] / [inch] | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 25 / 1” | 40 / 1.6” | 50 / 2” | 75 / 3” | 100 / 4” | 150 / 6” | 200 / 8” | 250 / 10” | 300 / 12” | |
| 1˝ | 2.2 / 32 | ||||||||
| 1 1/2˝ | 2.2 / 32 | ||||||||
| 2˝ | 1.8 / 26 | ||||||||
| 2˝– 3˝ | 2 / 29 | 1.5 / 22 | |||||||
| 3˝ | 1.5 / 22 | ||||||||
| 3˝– 4˝ | 1.8 / 26 | 1.2 / 17 | |||||||
| 4˝ | 1.9 / 28 | ||||||||
| 4˝– 6˝ | 1.9 / 28 | 1.6 / 23 | |||||||
| 6˝ | 2.2 / 32 | ||||||||
| 6˝– 8˝ | 2.2 / 32 | 1.4 / 20 | |||||||
| 8˝ | 1.3 / 19 | ||||||||
| 10˝ | 1.5 / 22 | ||||||||
| 12˝ | 1.8 / 26 | ||||||||

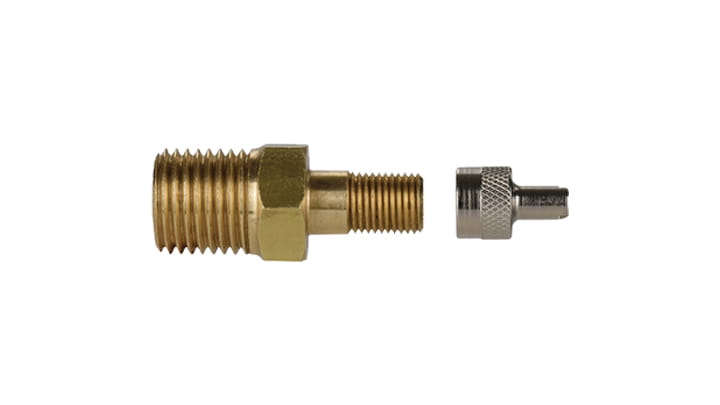

Coupling System
TR 15
Accessories

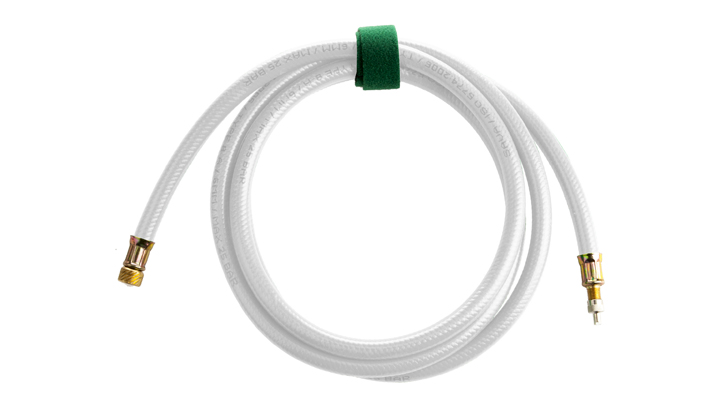

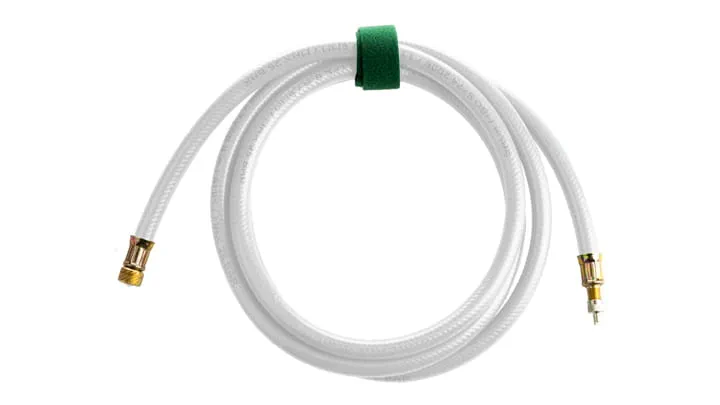

Inflation Hose, FI 6 mm
2 m (6.6'), 0.2 kg (0.44 lbs)
78904
5 m (16.4'), 0.5 kg (1.1 lbs)
78905

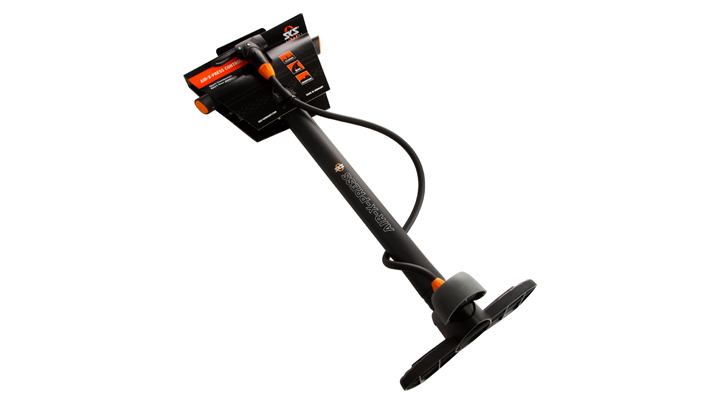

Hand Pump
0.8 kg (1.8 lbs)
60010

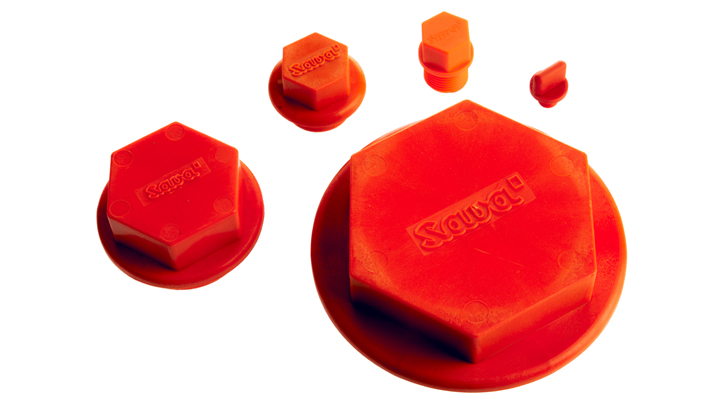

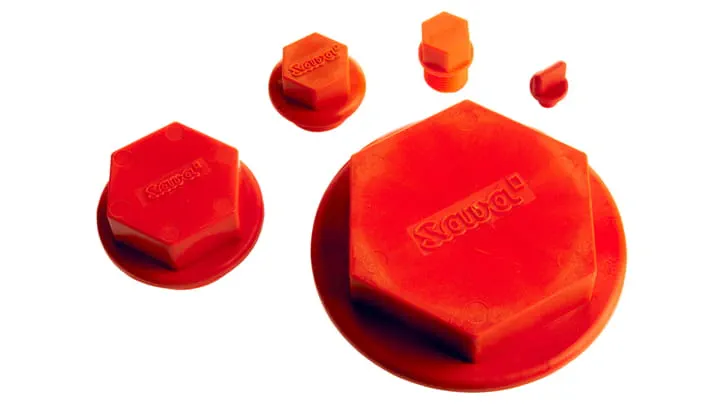

Replacement Caps
CAP 1/8” - 539897
CAP 1/2” - 539898
CAP 1” - 539899
CAP 2” - 538797
CAP 4” -539900Pneumatic plugs
