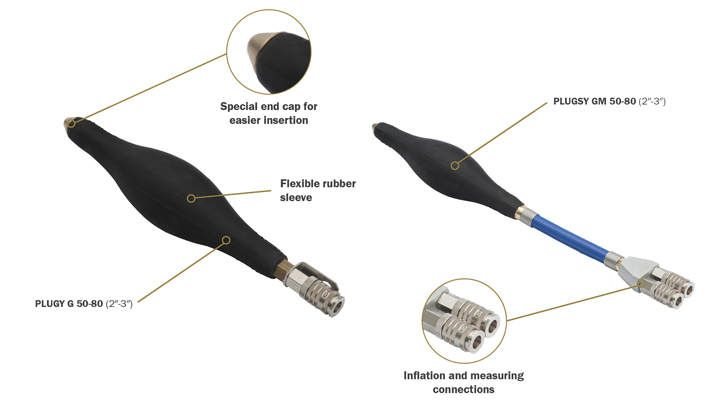

PLUGY G - BlockingPlugs
|
PART NUMBER |
NOMINAL SIZE |
SIZE USAGE RANGE |
REQUIRED INFLATION PRESSURE [bar] / [psi] |
MAX.
ALLOWED BACK PRESSURE [bar] / [psi] |
DEFLATED PLUG |
DIAMETER FOR
INSERTION [mm] / [inch] |
PRODUCT WEIGHT [kg] / [lbs] |
INFLATION VALVE |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA. [mm] / [inch] |
MAX. DIA. [mm] / [inch] |
DIAMETER [mm] / [inch] |
LENGTH [mm] / [inch] |
|||||||
|
THREAD SIZE |
||||||||||
| 511807 | 50-80 / 2”-3” | 50 / 2” | 80 / 3” | 3 / 44 | 1 / 15 | 45 / 1.8” | 280 / 11” | 35 / 1.4” | 0.29 / 0.6 | R 1/4” |
| 511808 | 80-130 / 3”-5” | 80 / 3” | 130 / 5” | 2.5 / 36 | 1 / 15 | 76 / 3” | 360 / 14” | 40 / 1.6” | 0.37 / 0.8 | R 1/4” |
| 511809 | 100-160 / 4”-6” | 100 / 4” | 160 / 6” | 2 / 29 | 1 / 15 | 98 / 3.9” | 420 / 17” | 45 / 1.8” | 0.56 / 1.2 | R 3/8” |
| 511810 | 150-210 / 6”-8” | 145 / 6” | 210 / 8” | 2 / 29 | 1 / 15 | 140 / 5.5” | 510 / 20” | 50 / 2” | 0.78 / 1.7 | R 3/8” |
| 511811 | 200-315 / 8”-12” | 200 / 8” | 315 / 12” | 2 / 29 | 1 / 15 | 200 / 7.9” | 730 / 29” | 70 / 2.8” | 1.25 / 2.8 | R 3/8” |
| 519420 | 315-500 / 12”-20” | 315 / 12” | 500 / 20” | 1.5 / 22 | 0.8 / 12 | 315 / 12.4” | 950 / 37” | 90 / 3.5” | 1.45 / 3.2 | R 3/8” |
PLUGY GM - Bypass Plugs
|
PART NUMBER |
NOMINAL SIZE |
SIZE USAGE RANGE |
REQUIRED INFLATION PRESSURE [bar] / [psi] |
MAX.
ALLOWED BACK PRESSURE [bar] / [psi] |
DEFLATED PLUG |
DIAMETER FOR INSERTION [mm] / [inch] |
PRODUCT WEIGHT
[kg] / [lbs] |
INFLATION VALVE | BYPASS DIAMETER | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA. [mm] / [inch] |
MAX. DIA. [mm] / [inch] |
DIAMETER [mm] / [inch] |
LENGTH [mm] / [inch] |
||||||||
|
THREAD
SIZE |
|||||||||||
| 511812 | 50-80 / 2”-3” | 45 / 1.8” | 80 / 3” | 3 / 44 | 1 / 15 | 45 / 1.8” | 490 / 19” | 35 / 1.4” | 0.71 / 1.6 | R 1/4” | 5 |
| 511813 | 80-130 / 3”-5” | 75 / 3” | 130 / 5” | 2.5 / 36 | 1 / 15 | 76 / 3” | 570 / 22” | 40 / 1.6” | 0.79 / 1.7 | R 1/4” | 5 |
| 511814 | 100-160 / 4”-6” | 100 / 3.9” | 160 / 6” | 2 / 29 | 1 / 15 | 98 / 3.9” | 645 / 25” | 45 / 1.8” | 1.01 / 2.2 | R 3/8” | 7 |
| 511815 | 150-210 / 6”-8” | 145 / 5.7” | 210 / 8” | 2 / 29 | 1 / 15 | 140 / 5.5” | 760 / 30” | 50 / 2” | 1.22 / 2.7 | R 3/8” | 7 |
| 511816 | 200-315 / 8”-12” | 200 / 7.9” | 315 / 12” | 2 / 29 | 1 / 15 | 200 / 7.9” | 1060 / 42” | 70 / 2.8” | 1.72 / 3.8 | R 3/8” | 7 |
| 519421 | 315-500 / 12”-20” | 315 / 12.4” | 500 / 20” | 1.5 / 22 | 0.8 / 12 | 315 / 12.4” | 1280 / 50” | 90 / 3.5” | 1.9 / 4.2 | R 3/8” | 7 |

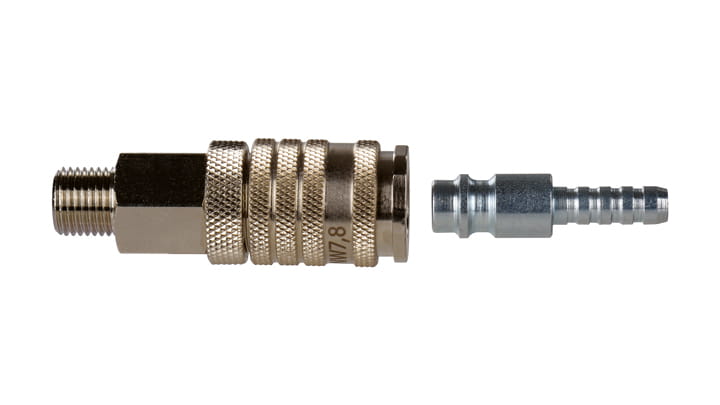

Coupling System
Type 26 - Safety
Accessories

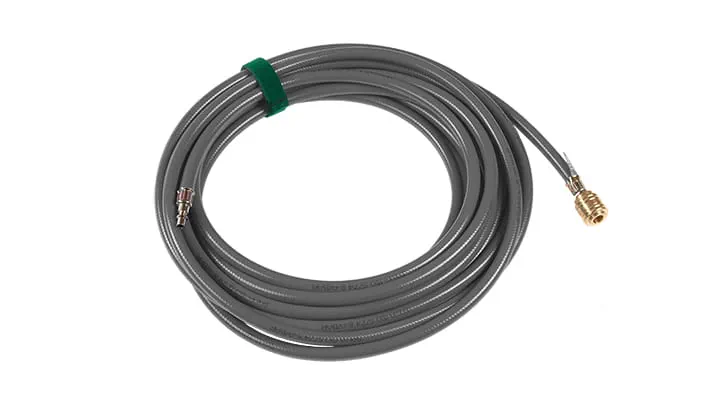

Inflation Hose Grey
10 m (33’)
1.2 kg (2.6 lbs)
614341

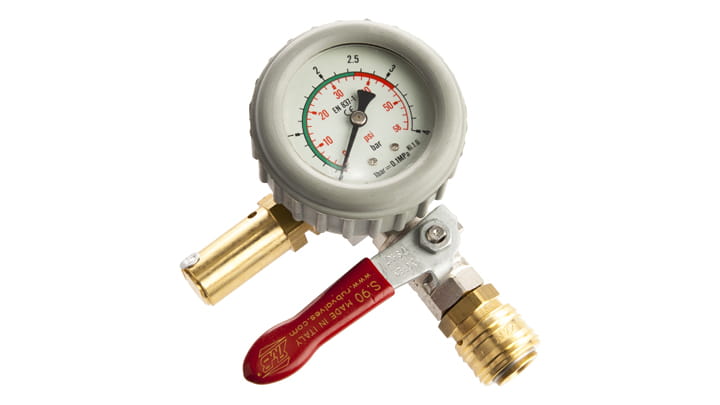

Single Fitting Controller
0.9 kg (2 lbs)
3.0 bar (44psi) - 537048
2.5 bar (36 psi) - 60310
2.0 bar (29 psi) - 565643
1.5 bar (22 psi) - 74609
Hand held controller 1 HND
1.3 Kg (2.9 lbs) 3.0 bar (44 psi) 628110
1.3 Kg (2.9 lbs) 2.5 bar (36 psi) 628111
1.3 Kg (2.9 lbs) 2.0 bar (29 psi) 628295
1.3 Kg (2.9 lbs) 1.5 bar (22 psi) 628297
1.3 Kg (2.9 lbs) 1.0 bar (15 psi) 628298
1.3 Kg (2.9 lbs) 2.5 bar (36 psi) 628111
1.3 Kg (2.9 lbs) 2.0 bar (29 psi) 628295
1.3 Kg (2.9 lbs) 1.5 bar (22 psi) 628297
1.3 Kg (2.9 lbs) 1.0 bar (15 psi) 628298

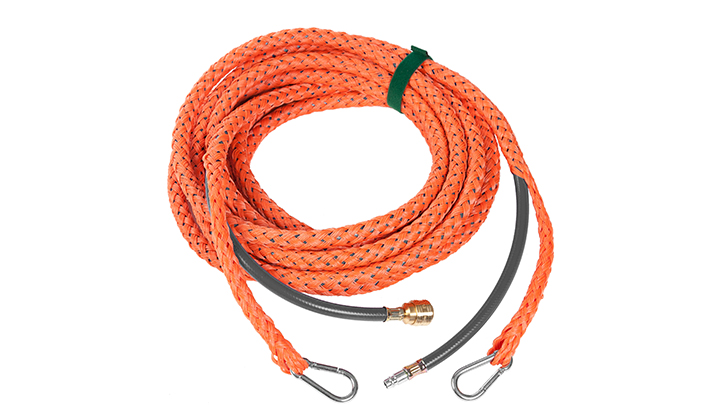

Poly Lift Inflation Hose
10 m (33’), 2.4 Kg (5.3 Lbs)
615288
Download manuals of use
Pneumatic plugs
Instructions of use in English - Full version
Pneumatic plugs
Instructions of use in German - Full version
Pneumatic plugs
Instructions of use in Slovenian - Full version
Pneumatic plugs
Instructions of use in English - Short version
Pneumatic plugs
Instructions of use in German - Short version
Pneumatic plugs
Instructions of use in Slovenian - Short version
Pneumatic plugs
Instructions of use in Italian - Short version
