Works with all offshore oil & gas and windfarm HVDC jackets
The fundamental requirement of an offshore oil and gas platform and Offshore Wind High Voltage Direct Current (HVDC) structure is the need for a secure and stable foundation.

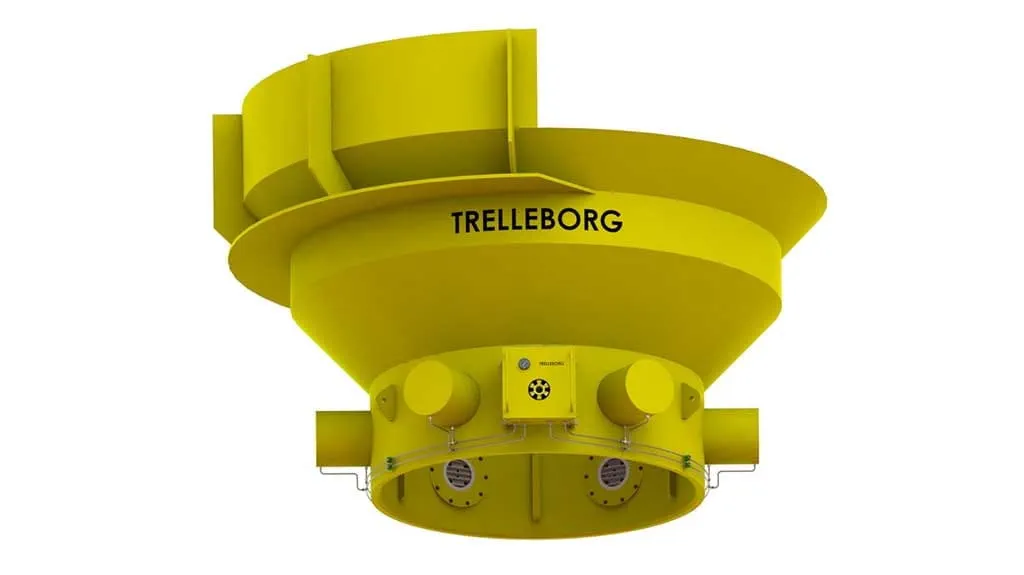

Grouting method is used to secure the platform foundation onto the seabed through piling. The skirt pile gripper is welded onto the upper of the jacket skirt pile, helping to hold the piles firmly in position, providing temporary retention of the jacket’s elevation position during the leveling operations and grout process, until the grout between the pile and the jacket has set and the installation is completed.
Trelleborg’s jacket leg can system is designed to encompass the sealing needs during the installation of an oil and gas platform substructure or Offshore Wind High Voltage Direct Current (HVDC) structure. Our Skirt Pile Gripper (SPG) combines the best in engineering capability with global offshore expertise to deliver a more efficient skirt pile installation and performance, completing Trelleborg’s solutions package for jacket leg can system.
Our custom designed SPG delivers a firmer grip on the pile with its unique biting teeth for increased contact area. This fixing method reduces risk during platform installation, as it guarantees stable working conditions, even in inclement weather. Our custom-made skirt pile gripper is available for a holding capacity of between 300MT and 3500MT.
Trelleborg offers a complete substructure leg can system solution from a single source, simplifying control and improving efficiency from purchase to delivery and reducing the risks associated with platform installation, through its Skirt Pile Gripper (SPG), Grout Seal (GS), Grout Packer (GP) and Diaphragms Closure (DC). You can now specify a total substructure leg can system from Trelleborg.
Trelleborg’s in-house engineering capabilities provide customers with the technical expertise and know-how to design, model, fabricate, and test a skirt pile gripper to ensure high quality, custom made, fully certified product.
Complete engineering such as 3D drawing services and calculation reports to ensure precise specification at the outset; this includes FEA simulations and studies for improved accuracy.
Trelleborg’s SPG sensors can be activated to detect loss of pressure, so that the secondary air piping line can be activated before the primary air piping line fails or more pressure can be added to the primary air piping line. Therefore, reducing the down-time during installation.
