Configurations
The following configurations of Tee Type strainer are available:

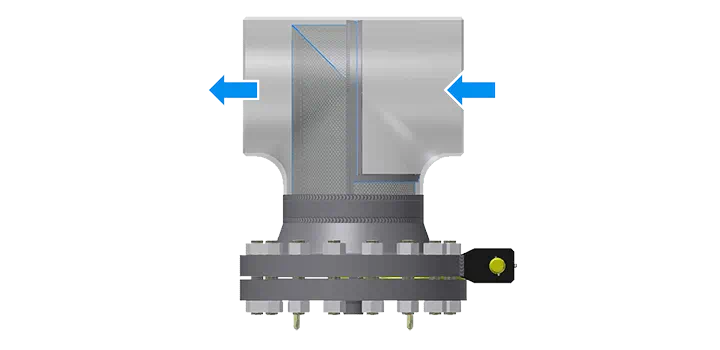

Type-A: Straight flow
- Used for straight flow only
- Most optimized Tee-type strainer design for pressure drop
- Sealing occurs at guiderails which may allow light bypass - this design is therefore suitable for coarser filtration only.
![tee type a straight flow](/marine-and-infrastructure/-/media/fluid-handling-solutions/veebee/page-image/tee-type-a-straight-flow.png?h=350&iar=0&w=720&rev=7b2a02d461d54baa86192b807cc899e5&hash=9790FF142FE57B1BD221033E0463F3C2)
Type-B: Right angled flow
- Facilitates change in direction of flow at right angle.
- Inherently stronger construction compared to Type-C angle strainer because of its “internal pressure” configuration owing to its flow direction.
- Pressure drop is generally between Type-A and Type-C strainer.
- Positive seals at flat surfaces of the seating and element rings – this design is therefore suitable for fine filtration.
![tee-type-b-right-angled-flow](/marine-and-infrastructure/-/media/fluid-handling-solutions/veebee/page-image/tee-type-b-right-angled-flow.png?h=350&iar=0&w=720&rev=a4d41418871342f1a05b3635eb7ae71c&hash=C6C34D102EA8096165CAAA2A3185E7D9)
Type-C: Right angled flow
- Facilitates change in direction of flow at right angle.
- Requires internal reinforcement due to “external pressure” configuration owing to its flow direction.
- Pressure drop is generally higher than both Type-A and Type-B strainers.
- Positive seals at flat surfaces of the seating and element rings – this design is therefore suitable for fine filtration.
![tee type c right angled flow](/marine-and-infrastructure/-/media/fluid-handling-solutions/veebee/page-image/tee-type-c-right-angled-flow.png?h=350&iar=0&w=720&rev=b2a725a4b1834409bf78f45b84e633e5&hash=015E818AD3CEB21EEB67E0AC2958409B)
