Vee Bee Dual Type Strainers provide a simple and effective solution to pipeline filtration where the use of either Y Type or Mono Type strainers is prohibited by the necessity to ensure continuous flow.
Typical options
Trelleborg offers a complete range of Vee Bee Dual Strainers for all applications.

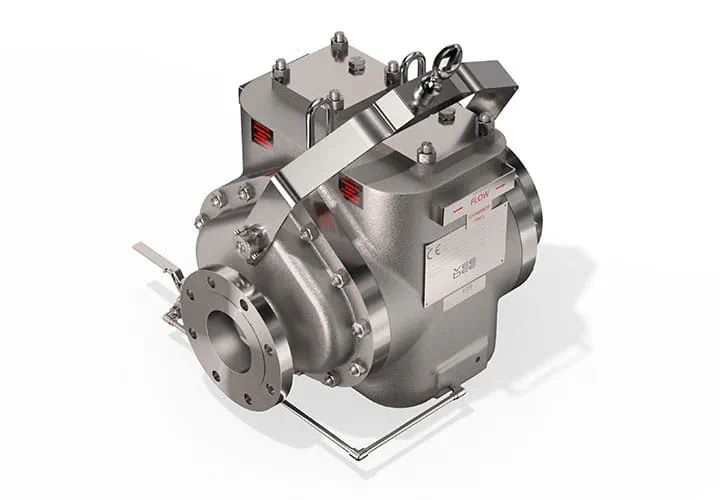

Swing Gate
- Sizes: 0.5″ (15mm) to 4″ (100mm)
- Flanged Ends ANSI, BS4504 (DIN, PN), BS10
- Screwed Ends API, BSP, NPT
- Various cast materials of construction
- 100% shut-off for gas applications
- Quick release or bolted covers
- Maximum pressure ratings ANSI Class 300lb
![dual-type-strainer](/marine-and-infrastructure/-/media/fluid-handling-solutions/veebee/page-image/dual-type-strainer.jpg?h=500&iar=0&w=720&rev=ffc9201a6028497f96282c1700b26640&hash=F424525981D03A6D2F6DEA3716AD9FC6)

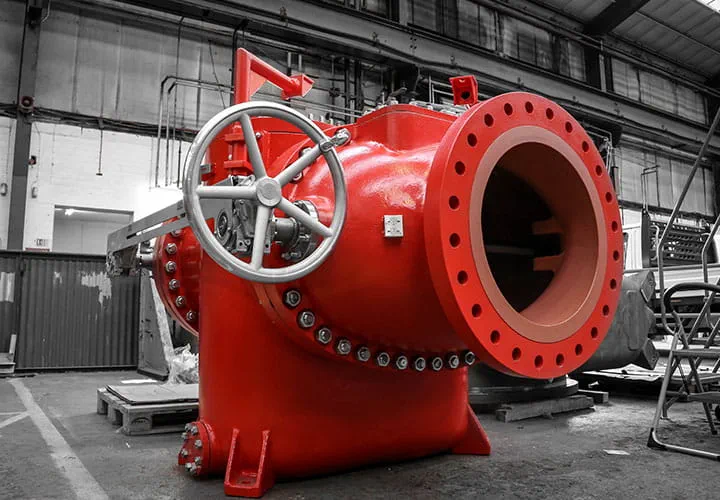

Screw Gate
- Sizes: 3″ (80mm) to 32″+ (800mm+)
- Flanged Ends ANSI, BS4504 (DIN, PN), BS10
- Various cast materials of construction
- 100% shut-off for gas applications
- Quick release or bolted covers
- Actuated changeover available
- Maximum pressure ratings ANSI Class 600lb
- Handling temperatures more than 500F
![dual screw gate strainer](/marine-and-infrastructure/-/media/fluid-handling-solutions/veebee/page-image/dual-screw-gate-strainer.jpg?h=500&iar=0&w=720&rev=25ab004c1f034437aeed99dbf6ab6db1&hash=2898358126AE5CA19CAC6556586871DA)
