The widest range of conical strainers: from Witches Hat strainers to cone type.

This simple strainer design is commonly used in pipeline systems.

The mesh cone shape offers a large filtration area for catching pipe debris. This prevents damage to pumps, control valves, gauges, flow meters and any other process equipment.

Temporary conical strainers are compact, highly durable and easy to clean.

A Vee Bee Conical Strainer is therefore a low-cost solution in protecting process equipment against contamination during start-up and commissioning.

Different configurations can be manufactured to meet specific operational processes: including size, length, filtration level and identification marks.

Full support is also available.

Show more
Show less

Typical specifications

  • Sizes: 0.5″ (15mm) to 30″+ (750mm+)
  • Various S/S, Monel, Duplex, Carbon
  • Maximum pressure rating class 2500lb+ (172 BarG+)

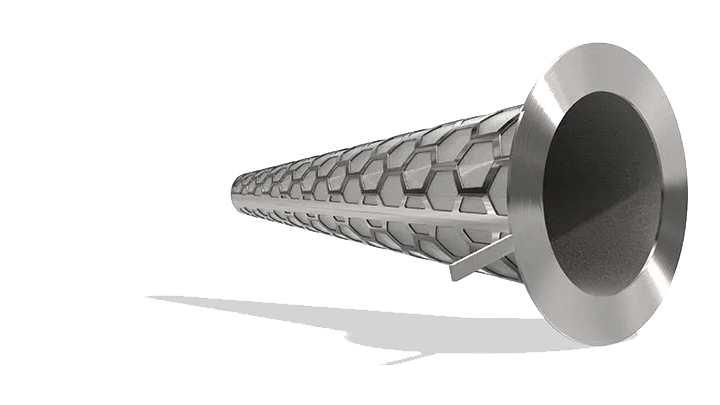

conical-high-pressure-3

High Pressure

  • Sizes: 0.5″ (15mm) to 30″+ (750mm+)
  • Various S/S, Monel, Duplex, Carbon
  • Maximum pressure rating class 2500lb+ (172 BarG+)

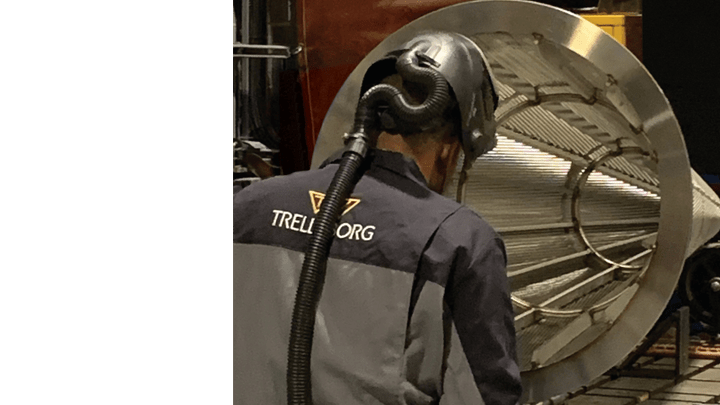

conical-high-pressure-2

Witches Hat Strainer

  • Sizes: 0.5″ (15mm) to 30″+ (750mm+)
  • Various S/S, Monel, Duplex, Carbon
  • Maximum pressure rating class 2500lb+ (172 BarG+)

Wedge Wire

  • Sizes: 0.5″ (15mm) to 30″+ (750mm+)
  • Various S/S, Monel, Duplex, Carbon
  • Maximum pressure rating class 2500lb+ (172 BarG+)

Summary introduction to Vee Bee Witches Hat Filters when installing a new system

  1. Witches Hat Filters or temporary strainers are designed for use during start-up as part of installation.
  2. The Witches Hat strainer is shaped like a pointed cone and is designed to protect control equipment from dirt, debris and any other foreign bodies that may pass through a new system.
  3. The Filter is added to a new system at the time of installation.
  4. Acting as a conical wedge or conical basket, the filter is fitted between two flanges and therefore requires an accessible section of pipe - such as at removable spool pieces.
  5. Witches Hat Filters are easy to fit and are located between the mating flanges in the pipeline.
  6. These strainers are available to fit a variety of flange facings including flat, raised face, ring joint, tongue, and groove.
  7. After initial cleaning of the system, the strainer is then removed and disposed.
