Applications

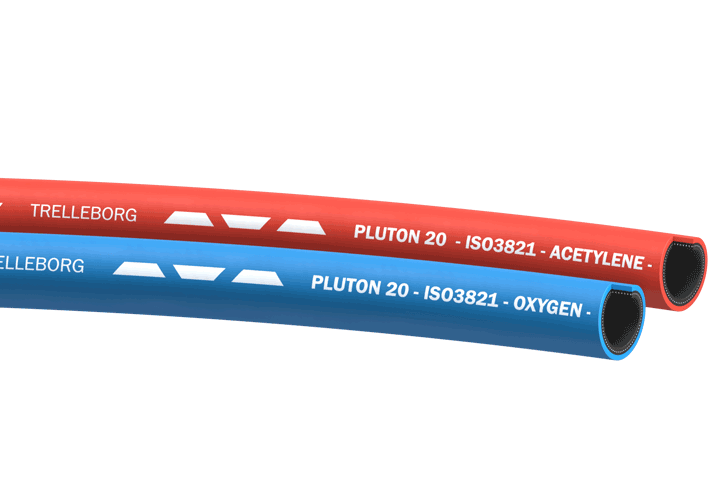

Twin line rubber hose for welding gas supply.
2 types available :
- Blue and Red for Oxygen and Acetylene
- Blue and Orange for Oxygen and LPG
Advantages
- Flexible and light weight for easy handling. The dual hose line makes connecting systems unnecessary.
- Long, safe service life.
- The cover is particularly resistant to atmospheric conditions (ozone, hot spots).
- Flame resistant tube in case of flashback.
- Very strong textile reinforcement giving high safety factor.

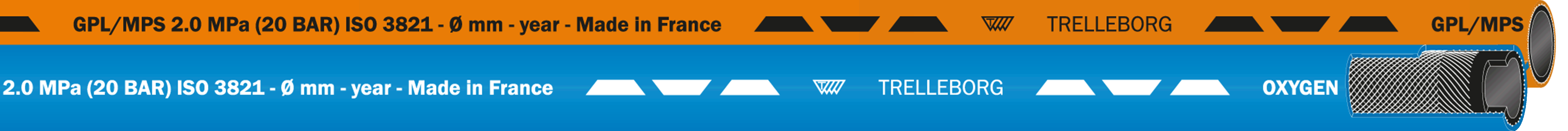

- Clear branding showing gas symbol and year of manufacture.
Design
Overview
Inner tube
SBR/NR, black, smooth.
Reinforcement
synthetic textile
Cover
EPDM, Blue/Red for oxygen and acetylene or Blue/Orange for oxygen and LPG , smooth
Temperature range
-30 to +80
Additional information
80 and 120m length are available on request.
Hoses joined by extruded rubber bridge.
2 standards colors available :
- Type BL/RE : Blue and Red for oxygen and acetylene
- Type BL/OR : Blue and Orange for oxygen and LPG
Hoses joined by extruded rubber bridge.
2 standards colors available :
- Type BL/RE : Blue and Red for oxygen and acetylene
- Type BL/OR : Blue and Orange for oxygen and LPG
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
