Applications
Specially designed for professional and industrial high pressure cleaning.

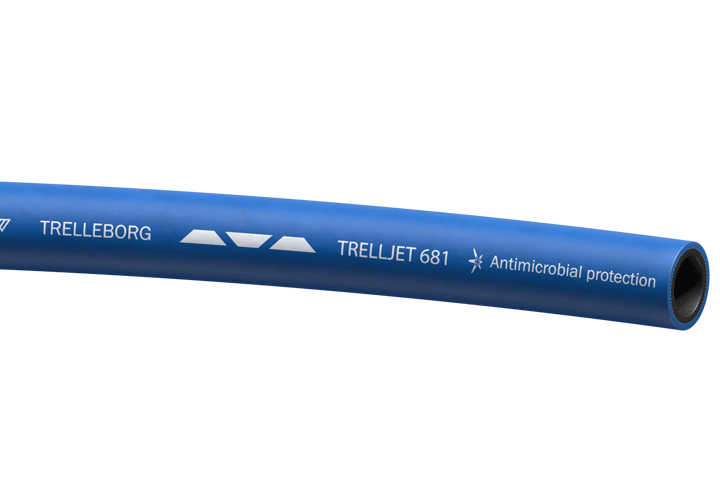

The antimicrobial TRELLJET 681 is suitable for all environments where bacteria are concerned: cleaning companies, food industries, pharmaceutics, packaging/bottling, health care institutions, schools, etc.
Suitable for mobile pressure washers, fixed installations and reel mounted applications.
Advantages
- Crush resistant.
- Antimicrobial protection: prevents odor, stain, degradation and breakdown from bacterial attacks.
- Non-staining smooth cover.
- Oil, detergents, wear and weather resistant.
- High temperature resistance.
- Highly flexible and kink resistance.
- Long service life.
Design
Technical drawing
Overview
Inner tube
NBR/SBR, black, smooth.
Reinforcement
synthetic textile.
Cover
NBR/SBR, blue, smooth.
Temperature range
-40 to +120
Standard/Approval
Specially designed fittings are available, please contact us for further information in order to get optimum connections.
Additional information
Available in random lengths: 20-95m.
50% of the volume in each delivery will be random lengths, shortest length of 20m, at least 50% will be in fixed length mentioned in the table.
50% of the volume in each delivery will be random lengths, shortest length of 20m, at least 50% will be in fixed length mentioned in the table.
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
