Applications
Specially designed for wine transfers in wine processing industries and for transfer of fresh grapes on the largest diameters.
Suction and discharge of any foodstuff except fatty/oily liquids.
Advantages
- The utmost user friendly rubber hose: outstanding flexibility and easy handling thanks to slicking cover, non-marking with weak tractive effort.
- Food grade white tube complying with the most stringent European and American requirements for foodstuff handling.
- Unaffected by changes in temperature.
- Resistant to cleaning with most common detergents (see our cleaning guideline for details) or with steam at max. 110°C during 10 minutes max.
- Contains no phthalate.

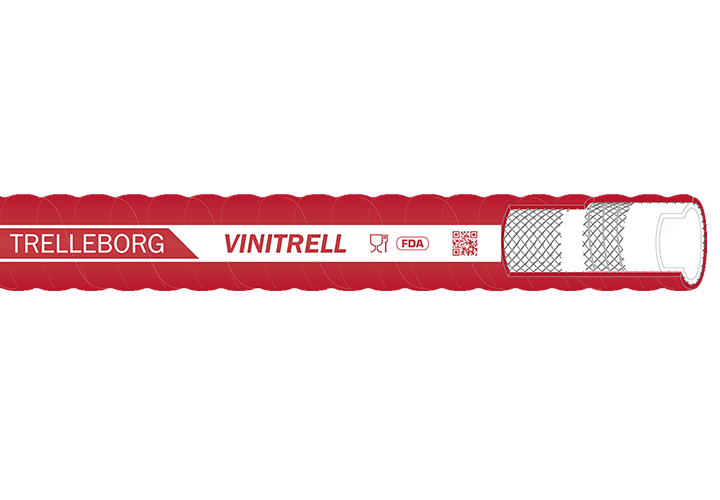

Design
Overview
Inner tube
food grade quality NR, white, smooth.
Reinforcement
synthetic textile with embedded steel helix
Cover
special polymer-based, red.
Temperature range
-30 to +80
Standard/Approval
Specially designed fittings are available, please contact us for further information in order to get optimum connections.
Additional information
Please refer to our cleaning guidelines, available upon request and from our website.
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
