Applications
Suction and discharge of a large number of very aggressive or very corrosive chemicals, chemical waste.
For road and rail tanker equipment or fixed installations in the chemical industry.
Advantages
- Easy to handle due to hose flexibility (low bending radius).
- Usable at a wide range of temperatures.
- Capable of handling many different chemicals.
- External helix in stainless steel designed for corrosion resistance.
Design

Overview
Inner tube
PTFE film.
Reinforcement
PP fabrics, PP and PET layers

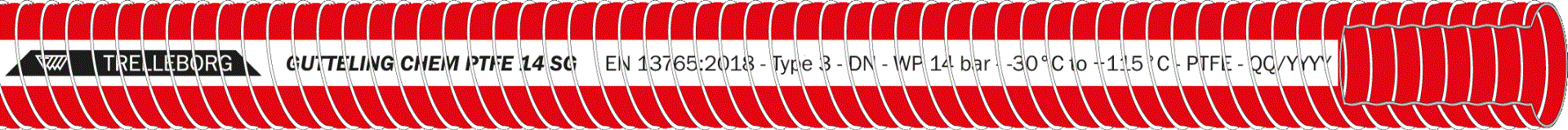

Cover
PVC coated fabric, red, corrugated.
Temperature range
-30 to +115
Standard/Approval

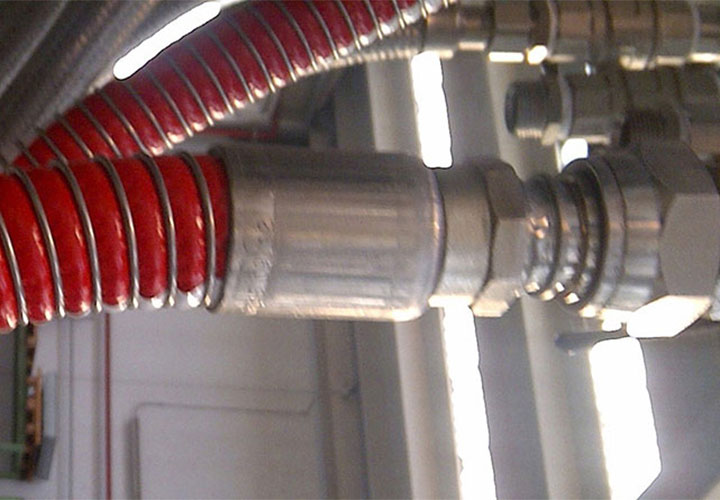

All types of swaged couplings:
- standard or revolving Guillemin
- standard or secured camlock coupling
- threaded male or female fitting (BSP, NPT, etc.)
- fixed or swivel flange ISO PN10/16, PN20 (ASA150), TTMA, etc.
- standard or revolving Guillemin
- standard or secured camlock coupling
- threaded male or female fitting (BSP, NPT, etc.)
- fixed or swivel flange ISO PN10/16, PN20 (ASA150), TTMA, etc.
Additional information
Fitted lengths are delivered on request with pressure test certificate.
Imperial size on request.
Imperial size on request.
Technical Specifications
ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
