Twinfit Fluor Blue & Clamping Bands

APPLICATION

Twinfit Fluor Blue silicone bellows provide an extremely flexible connection for cooling water systems, clean air supply, and turbo air charge systems. This type is oil resistant and suitable for applications with very high temperatures.

  • Temperature range from –60°C up to +250°C
  • Maximum working pressure 4 bar at 120°C


CONSTRUCTION

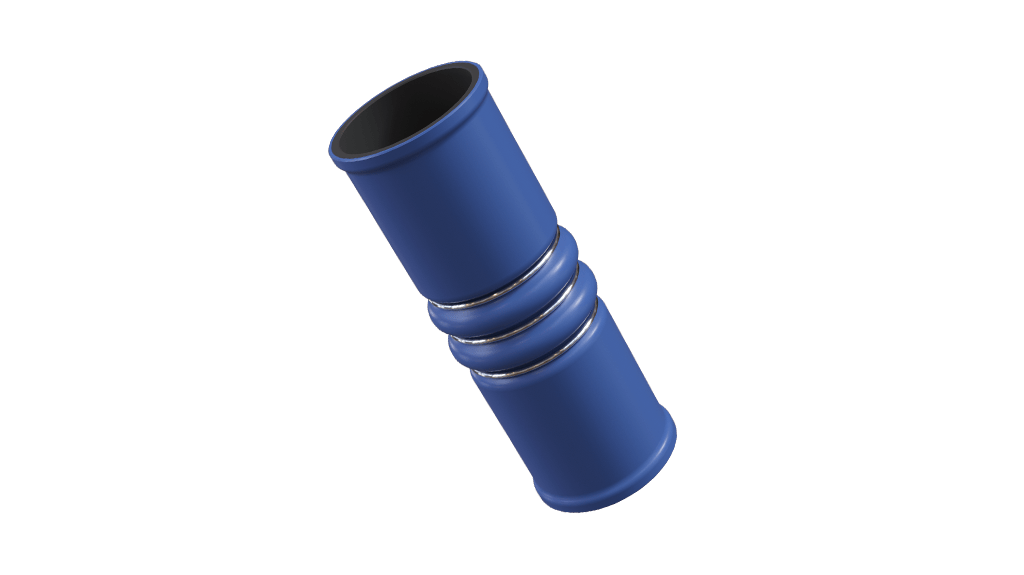

The Twinfit silicone bellows are constructed with:

  • High-quality Black Fluor silicone rubber inner tube
  • Heavy-duty DuPont Nomex cord reinforcement
  • Blue silicone rubber cover
  • Three stainless steel reinforcement rings on the outside
  • Special beads on each end for positioning the clamping bands


CLAMPING BANDS

We recommend using our heavy-duty clamping bands. The clamping bands are either made of zinc-plated carbon steel or full stainless steel.


MOVEMENTS

Compression and elongation 13 mm. Lateral 3 mm.


GENERAL

A minimum distance of 50 or 69 mm, depending on bellow size, between the pipe ends is needed for secure operation. On a TwinFit Fluor Blue clamping bands should be used.

Product data: Twinfit Fluor Blue
PART No. INSIDE DIAMETER D1 (MM) OUTSIDE DIAMETER D2 (MM) BELLOWS DIAMETER D3 (MM) NEUTRAL LENGTH L1 (MM) CUFF LENGTH L2 (MM)
300 062 034 34 39 42 178 55
300 062 038 38 44 47 178 55
300 062 042 42 48 55 178 55
300 062 048 48 53 60 178 55
300 062 054 54 59 66 178 55
300 062 060 60 65 69 185 60
300 062 076 76 80 90 188 60
300 062 080 80 85 90 214 65
300 062 089 89 94 106 214 65
300 062 108 108 112 124 217 65
300 062 114 114 118 124 217 65
300 062 133 133 138 144 217 65
300 062 139 139 144 154 217 65

Product data: Clamping Bands
FOR BELLOW PART NO. CLAMP TYPE CLAMP ST.37 ZINC-PLATED PART NO. CLAMP STAINLESS STEEL AISI 304 PART NO. REQUIRED QUANTITY
300 062 034 I-1 part 300 070 040 300 071 040 4
300 062 038 I-1 part 300 070 045 300 071 045 4
300 062 042 I-1 part 300 070 050 300 071 050 4
300 062 048 I-1 part 300 070 055 300 071 055 4
300 062 054 I-1 part 300 070 060 300 071 060 4
300 062 060 I-1 part 300 070 065 300 071 065 4
300 062 076 I-1 part 300 070 080 300 071 085 4
300 062 080 I-1 part 300 070 085 300 071 085 4
300 062 089 II-2 parts 300 080 095 300 081 095 4
300 062 108 II-2 parts 300 080 115 300 081 115 4
300 062 114 II-2 parts 300 080 125 300 081 120 4
300 062 133 II-2 parts 300 080 140 300 081 140 4
300 062 139 II-2 parts 300 080 150 300 081 150 4
