Balance VIII: DN80-1600

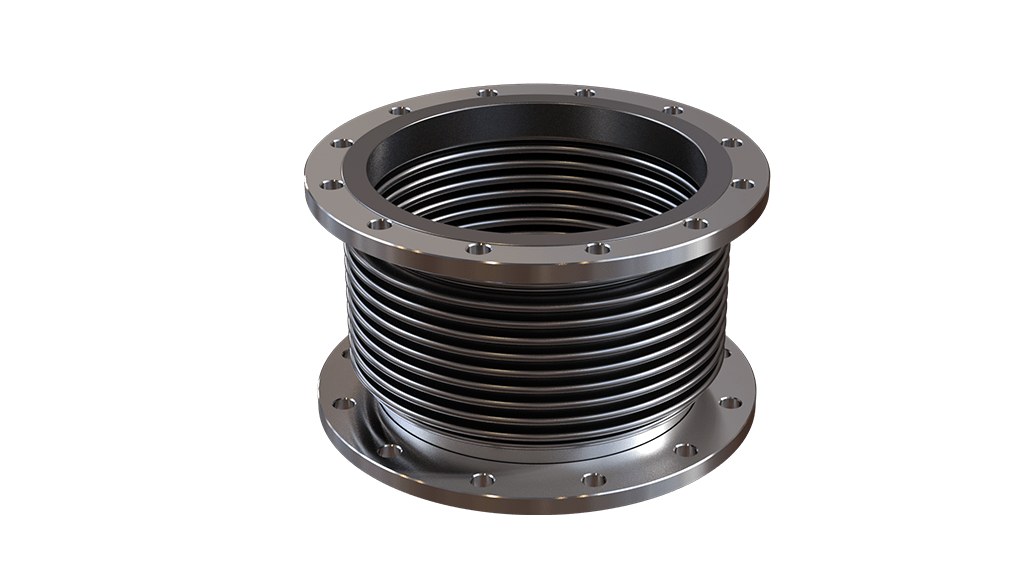

The Balance VIII is a relatively short stainless steel expansion joint with rotating flanges. It is used to accommodate axial movements and lateral misalignments in piping systems in situations with limited installation space. Due to its double-ply bellows and rotating flanges, this compensator is still able to compensate relatively large movements. The Balance VIII is supplied at pre-stressed length to reduce the reaction forces to the foundation in operating conditions (high temperature). The maximum operating temperature of the Balance VIII is +550 °C, the maximum working pressure 2,5 bar (120 °C).
APPROVALS
Type approval available on request.
CHARACTERISTICS
- Stainless steel expansion joint AISI 321
- With rotating flanges acc. DIN 86044 (<DN200 - PN10)
- Double-ply bellows material
- Standard length
- Max. temperature: 550 °C
- Max. pressure: 2,5 bar (120 °C)
- Alternative flange dimensions available
- Stock item
- Supplied at pre-stressed length
Product data
PART No. | DN | L1 | Ls | Bellows (AISI 321) | Flange (carbon steel) | Movements 2 (mm) | Springrate (n/mm) | ||||||
B (mm) | Thickness (mm) | No. of Plies | D Outside (mm) | Bolt Circle | Holes x d | Axial +/- | Lateral +/- | Axial +/- | Lateral +/- | ||||
302 610 080 | 80 | 180 | 100 | 100 | 0.3 | 2 | 200 | 160 | 8 x 18 | 30 | 15 | 35 | 25 |
302 610 100 | 100 | 150 | 170 | 141 | 0.3 | 2 | 220 | 180 | 8 x 18 | 33 | 10 | 22 | 38 |
302 610 125 | 125 | 185 | 210 | 168 | 0.3 | 2 | 250 | 210 | 8 x 18 | 35 | 11 | 26 | 45 |
302 610 150 | 150 | 200 | 225 | 196 | 0.3 | 2 | 285 | 240 | 8 x 22 | 40 | 12 | 30 | 63 |
302 610 175 | 175 | 205 | 230 | 224 | 0.3 | 2 | 315 | 270 | 8 x 22 | 40 | 10 | 28 | 65 |
302 610 200 | 200 | 185 | 215 | 244 | 0.3 | 2 | 320 | 280 | 8 x 18 | 44 | 10 | 21 | 72 |
302 610 250 | 250 | 185 | 215 | 299 | 0.4 | 2 | 375 | 335 | 12 x 18 | 42 | 8 | 41 | 226 |
302 610 300 | 300 | 180 | 210 | 353 | 0.4 | 2 | 440 | 395 | 12 x 22 | 45 | 7 | 40 | 357 |
302 610 350 | 350 | 180 | 210 | 400 | 0.4 | 2 | 490 | 445 | 12 x 22 | 44 | 6 | 39 | 389 |
302 610 400 | 400 | 220 | 265 | 450 | 0.4 | 2 | 540 | 495 | 16 x 22 | 65 | 10 | 26 | 201 |
302 610 450 | 450 | 180 | 215 | 500 | 0.4 | 2 | 595 | 550 | 16 x 22 | 50 | 5 | 33 | 518 |
302 610 500 | 500 | 230 | 280 | 550 | 0.4 | 2 | 645 | 600 | 20 x 22 | 73 | 9 | 33 | 362 |
302 610 550 | 550 | 240 | 290 | 600 | 0.4 | 2 | 703 | 650 | 20 x 22 | 73 | 8 | 36 | 434 |
302 610 600 | 600 | 230 | 275 | 650 | 0.4 | 2 | 754 | 700 | 20 x 22 | 68 | 7 | 40 | 661 |
302 610 700 | 700 | 230 | 275 | 750 | 0.4 | 2 | 856 | 800 | 24 x 22 | 63 | 5 | 40 | 942 |
302 610 800 | 800 | 230 | 275 | 85 | 0.5 | 2 | 958 | 900 | 24 x 22 | 66 | 5 | 59 | 1670 |
302 610 900 | 900 | 230 | 275 | 950 | 0.5 | 2 | 1060 | 1010 | 28 x 22 | 66 | 4 | 62 | 2310 |
302 611 000 | 1000 | 230 | 275 | 1050 | 0.5 | 2 | 1162 | 1110 | 32 x 22 | 66 | 4 | 68 | 3185 |
302 611 100 | 1100 | 230 | 275 | 1150 | 0.6 | 2 | 1266 | 1210 | 32 x 22 | 66 | 3 | 83 | 4783 |
302 611 200 | 1200 | 230 | 275 | 1250 | 0.6 | 2 | 1366 | 1310 | 36 x 22 | 66 | 3 | 90 | 6082 |
302 611 300 | 1300 | 230 | 275 | 1350 | 0.8 | 2 | 1466 | 1410 | 40 x 22 | 66 | 3 | 225 | 17721 |
302 611 400 | 1400 | 230 | 275 | 1450 | 0.8 | 2 | 1566 | 1510 | 40 x 22 | 66 | 2 | 241 | 21875 |
302 611 500 | 1500 | 230 | 275 | 1550 | 0.8 | 2 | 1666 | 1610 | 44 x 22 | 66 | 2 | 257 | 26630 |
302 611 600 | 1600 | 230 | 1650 | 0.8 | 2 | 1766 | 1710 | 48 x 22 | 66 | 2 | 273 | 32025 |
