IP 66/67-series
Gland plates MC 3/7, MC 25/27, MC 35/37 and MB 5/11 are metal reinforced cable gland plates with IP66/67 classification. All types have a new design which gives excellent protection for separate cables when cables are bended effectly. The design gives absolute protection against dust and strong jets of water and even immersion between 0,15-1 m.
Technical specifications
| Description | Aperture | Part no | Colour | RAL code | Feature | No of cables |
|---|---|---|---|---|---|---|
|
MC 3/7 |
C opening (FL21) |
105041 |
Light grey | 7035 | UL94V-0 | 7 |
| MC 3/7 | C opening (FL21 |
103577 | Light grey | 7035 | 7 | |
| MC 3/7 | C opening (FL21) |
103576 | Grey | 7032 | 7 | |
| MC 3/7 | C opening (FL21) | 103580 | Black | UL94V-0 | 7 | |
| MC 25/27 | C opening (FL21) |
105042 | Light grey | 7035 | UL94V-0 | 27 |
| MC 25/27 | C opening (FL21) |
103584 | Light grey | 7035 | 27 | |
| MC 25/27 | C opening (FL21) |
103583 | Grey | 7032 | 27 | |
| MC 25/27 | C opening (FL21) | 103586 | Black | UL94V-0 | ||
| MC 35/37 | C opening (FL21) |
105043 | Light grey | 7035 | UL94V-0 | 37 |
| MC 35/37 | C opening (FL21) |
103589 | Light grey | 7035 | 37 | |
| MC 35/37 | C opening (FL21) | 103588 | Grey | 7032 | 37 | |
| MC 35/37 | C opening (FL21) | 103591 | Black | UL94V-0 | 37 | |
| MB 5/11 | B-opening (FL13) | 105044 | Light grey | 7035 | UL94V-0 | 11 |
| MB 5/11 | B-opening (FL13) |
103608 | Light grey | 7035 | 11 | |
| MB 5/11 | B-opening (FL13) |
103607 | Grey | 7032 | 11 |
IP classification overview
Technical drawings
IP66/67 dimensions
| Description | Width (A) | Lenght (B) | Height (C) | Dept 1 (D) | Dept 2 (E) |
|---|---|---|---|---|---|
|
MC 3/7 |
222 |
92 |
76 | 53 | 33 |
| MC 25/27 | 222 | 92 | 43 | 30 | 23 |
| MC 35/37 | 222 | 92 | 43 | 30 | 23 |
| MB 5/11 | 147 | 57 | 42 | 26 | 23 |
Multigate 3/7
MC 3/7 will lead through and seal cables as follows:
24-54 mm 2 pcs
30-60 mm 1 pc
8-16 mm 4 pcs

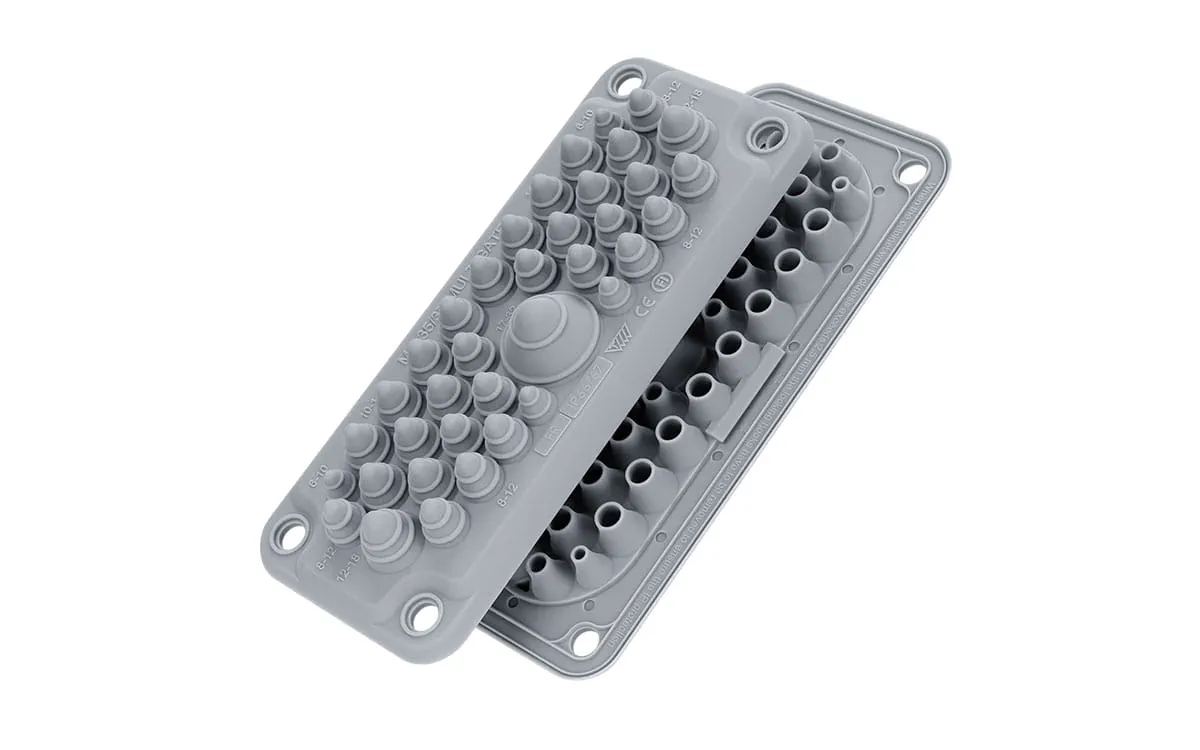

Multigate 35/37
MC 35/37 will lead through and seal cables as follows:
6-10 mm 4 pcs
8-12 mm 14 mm
10-14 mm 16 pcs
12-18 mm 2 pcs
17-32 mm 1 pc
Multigate 5/11
MB 5/11 will lead through and seal cables as follows:
5-7 mm 4 pcs
7-10 mm 3 pcs
10-14 mm 2 pcs
15-30 mm 2 pcs
Multigate 25/27
MC 25/27 will lead through and seal cables as follows:
5-7 mm 4 pcs
8-12 mm 4 pcs
10-14 mm 13 pcs
14-20 mm 4 pcs
20-26 mm 2 pcs
