  Fast, simple and cost-effective

Lateral rehabilitation with the proven, practice-oriented Power Top Hat system in combination with glass/felt caps and silicate resin.

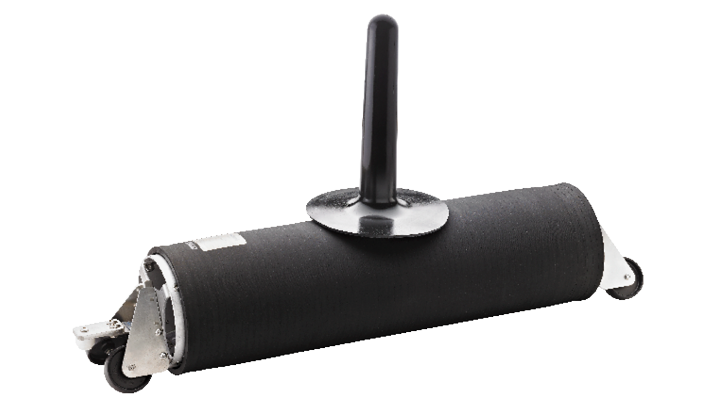

Power-tophat packer

Packers

  • Use of high quality rubber and selected components
  • Dimensions: DN 100 – 700 (main channel) DN 100, 125, 150 and 200 (side inlet)
  • Positioning: Manually via air push rods (up to DN 200)
  • or robots, e.g. PowerCUTTER 200
  • The renovation of different household connections at 45°, 70° and 90° bends is possible with the same Top Hat bladder!
  • For certain dimensions: Multi-range packers that cover several dimensions (e.g. DN 300/350)

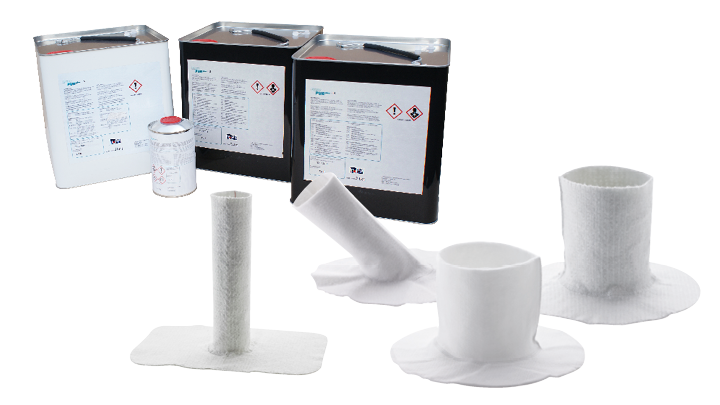

Power-tophat consumables

Consumable material

  • Reactive resins: Silicate resin Easy PUR/Easy PUR Plus or Epoxy resin Easy POX 1504
  • Hats available in different dimensions and angulations
  • Polyester needle felt with/without coating – also in combination with ECR glass fabric mats

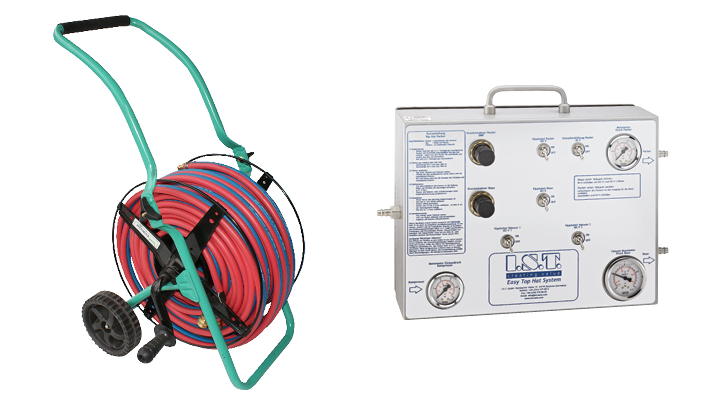

Power-tophat control-system

Control and hose reel

The Top Hat control system enables quick and easy working by controlled inflation and vacuuming of the two-chamber system. Pressure is continuously regulated during the curing process.

The hose reel and hose package are optimally adapted to the system.
