Description

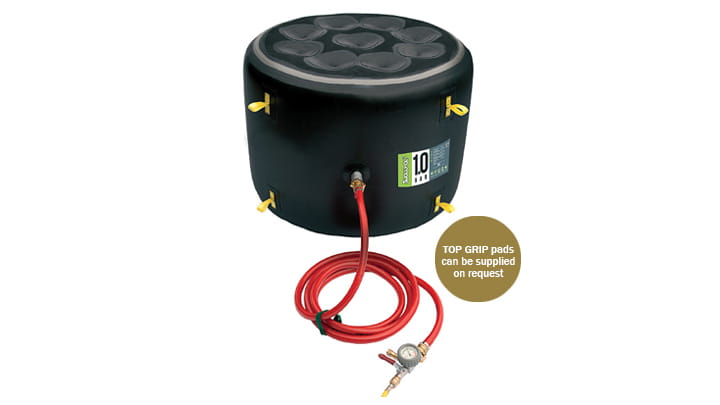

Medium-pressure lifting bags provide high lifts. They have a soft footprint which makes them ideal for lifting softer structures since the lifting force is spread over a wider area.
Key features & benefits
- Perfect performance on soft grounds
- Suitable for high lifts
- Made from extra durable materials
- Extra fast inflation and deflation
Technical Data
| TYPE |
PART NUMBER |
DIMENSIONS | WEIGHT |
WORKING PRESSURE |
NOMINAL CONTENT |
AIR REQUIREMENT |
MAX LIFTING CAPACITY |
MAX. LIFTING HEIGHT |
INFLATION VALVE |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DIAMETER | HEIGHT | |||||||||
| [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [bar] / [psi] | [l] / [cu./Ft.] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | Thread size | ||
| MA | 521478 | 61 / 24" | 5 / 2" | 7.5 / 17 | 1.0 / 14.5 | 126 / 4 | 251 / 9 | 3 / 3.3 | 43 / 17" | R 3/8” - male |
| MB | 521479 | 76 / 30" | 5 / 2" | 12 / 27 | 1.0 / 14.5 | 268 / 9 | 535 / 19 | 4.7 / 5.2 | 59 / 23" | R 3/8” - male |
| MC | 521481 | 91 / 36" | 5 / 2" | 15 / 33 | 1.0 / 14.5 | 397 / 14 | 793 / 28 | 6.7 / 7.4 | 61 / 24" | R 3/8” - male |
| MD | 521482 | 122 / 48" | 8 / 3" | 35 / 77 | 1.0 / 14.5 | 1168 / 41 | 2337 / 83 | 12 / 13.2 | 100 / 39" | R 3/8” - male |

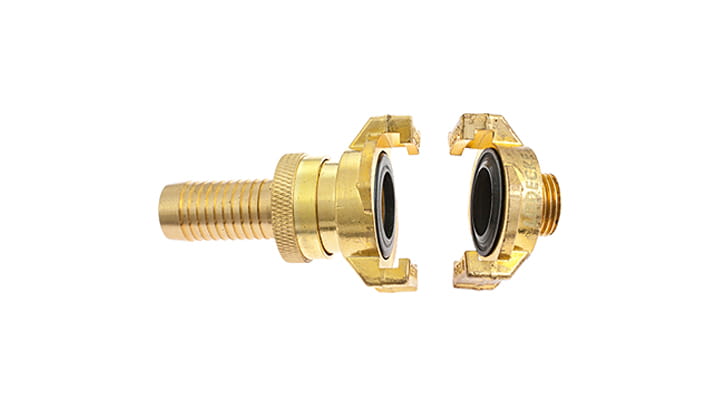

Coupling System
Type Geka
Controllers

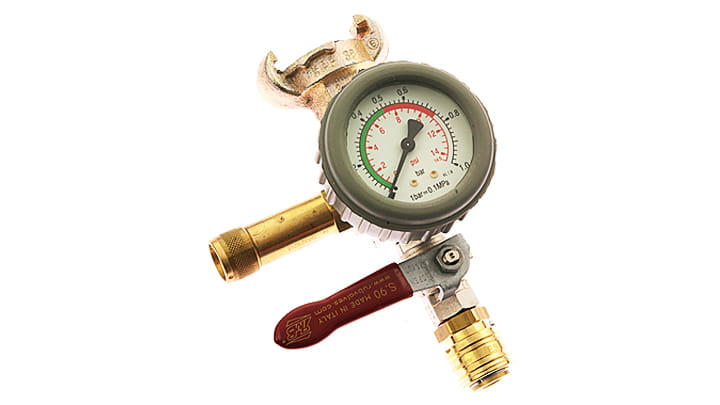

Single fitting controller
1.0 bar (14.5 psi)
1.0 kg (2.2 lbs)
551503

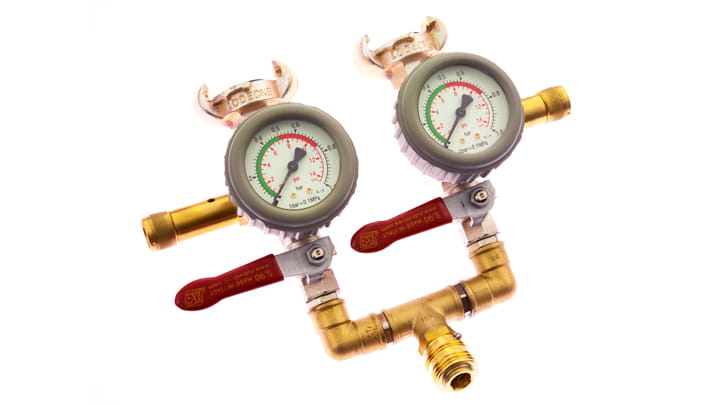

Double fitting controller
1.0 bar (14.5 psi)
2.0 kg (4.4 lbs)
504061
Adapters

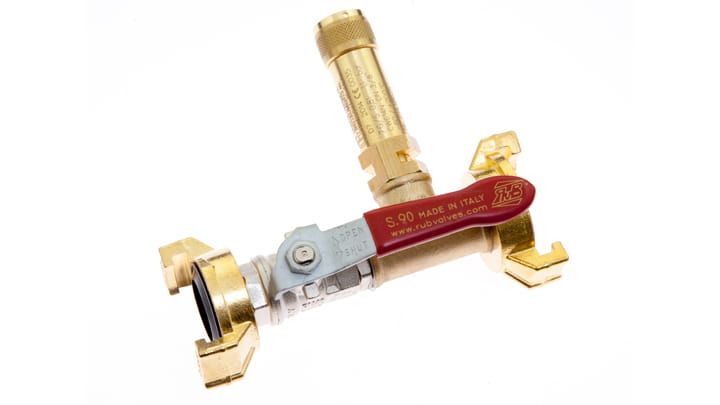

Shut-off + safety valve
1.0 bar (14.5 psi)
0.4 kg (0.88 lbs)
551504

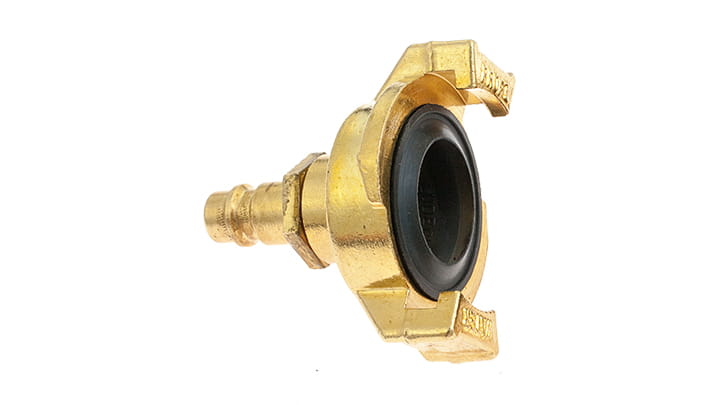

Adapter Geka/26
0.1 kg (0.2 lbs)
575711
Inflation Hoses

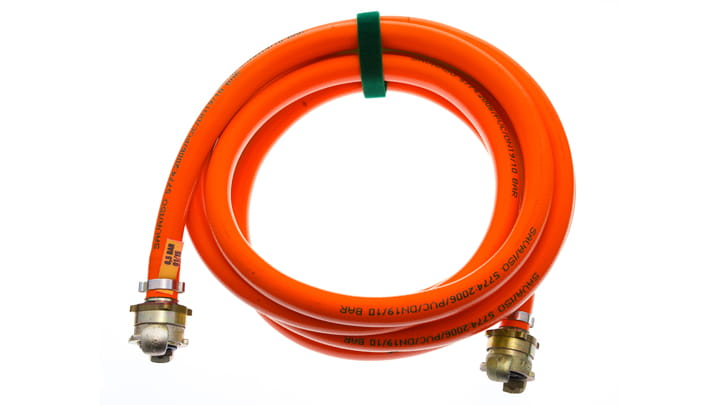

Red rigid
5 m (16’), 2.2 kg (4.9 lbs) - 525662
10 m (33’), 3.0 kg (6.6 lbs) - 538935

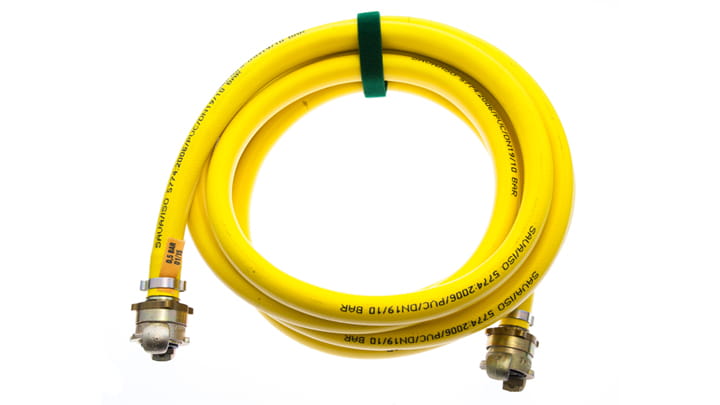

Yellow rigid
5 m (16’), 2.7 kg (6 lbs) - 504063
10 m (33’), 5.0 kg (11 lbs) - 519817

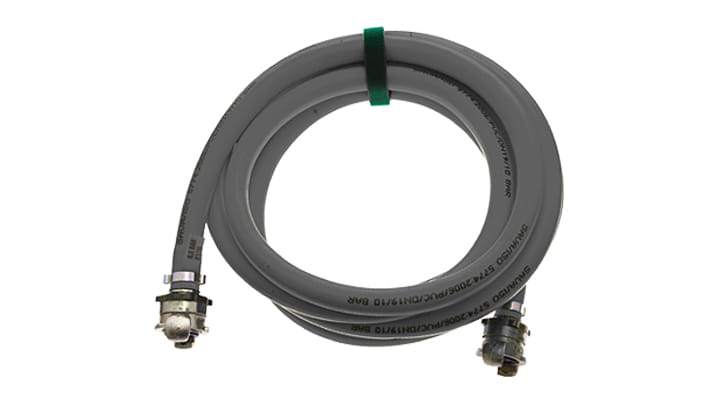

Black rigid
5 m (16’), 1.7 kg (3.7 lbs) - 504064
10 m (33’), 1.4 kg (3 lbs) - 577464
